Description

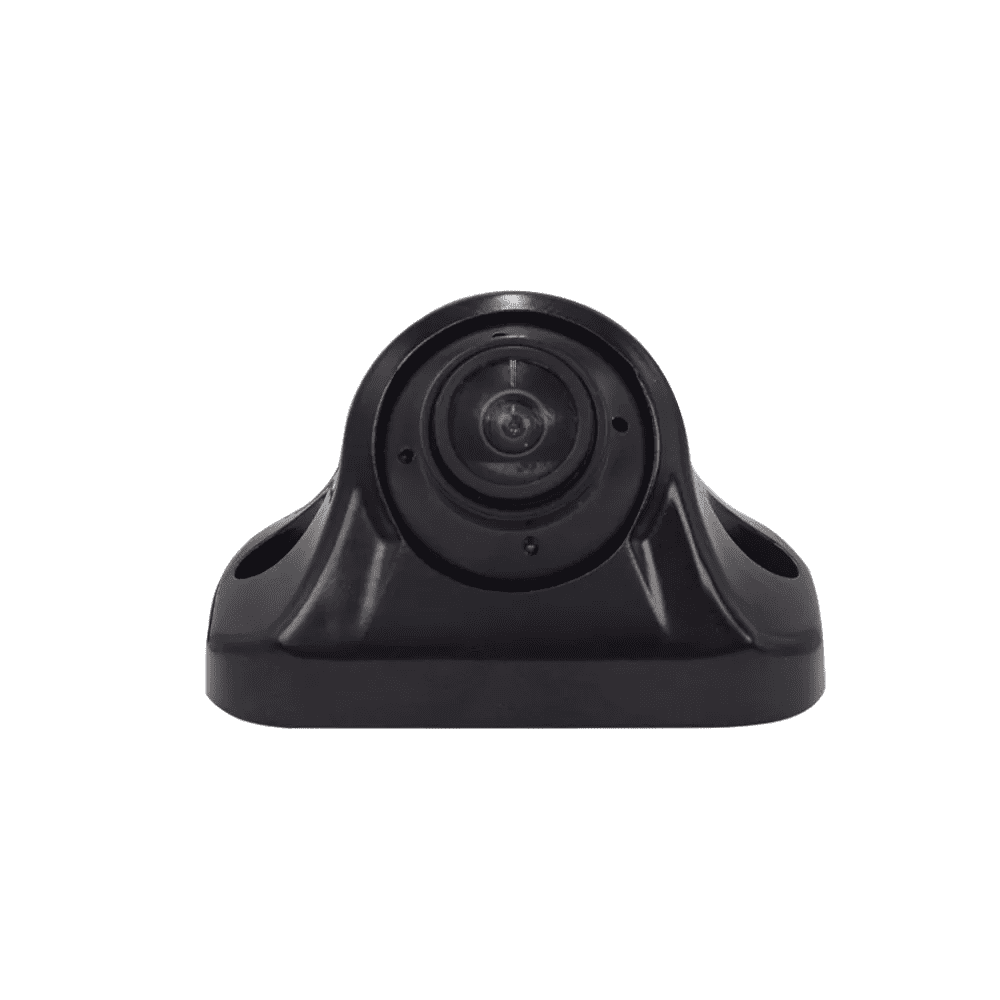

The CA207-HD Mini back Camera offers superior image quality in full HD 1080p resolution. Suitable for all types of vehicle applications, including bus, coach, rail, vans, and many more. It features built-in non-LEDs combined super starlight vision, with colorful images even in the darkest night. Clearly captures obstacles and other details outside the vehicle.
| Model | CA207-HD |
| Image Sensor | 1/2.9’’ CMOS |
| Resolution | 1080P |
| Effective Pixels | 1920(H)x1080(V) |
| Pixel Size | 1.8x1.8μm |
| Viewing Angle | 135 degrees |
| Waterproof Rating | IP69K |
| Shockproof | 10G |
| Frame Rate | 25/30fps |
| Night Vision | Super starlight vision lens |
| Power Supply | DC9-18V (from reversing monitor) |
| Audio | Support |
| Auto Heating | Support |
| Night Vision Distance | 15m |
| Housing Material | Heavy-duty cast metal |
| Power Consumption | 160mA |
| Unit Weight | 200g |
| Operation Temp | -20℃-70℃， RH95%MAX |
