Product Overview

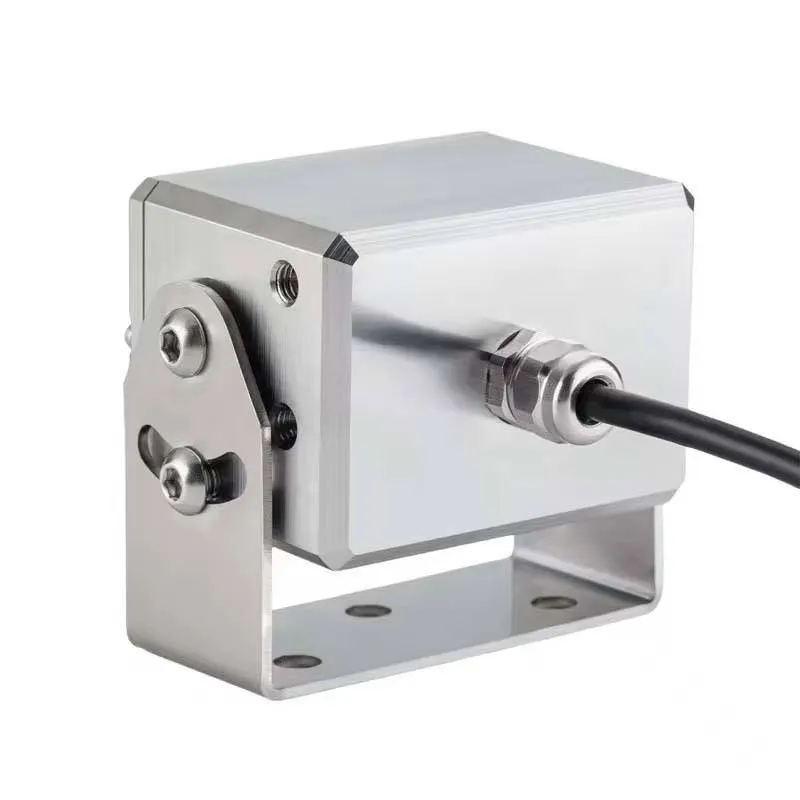

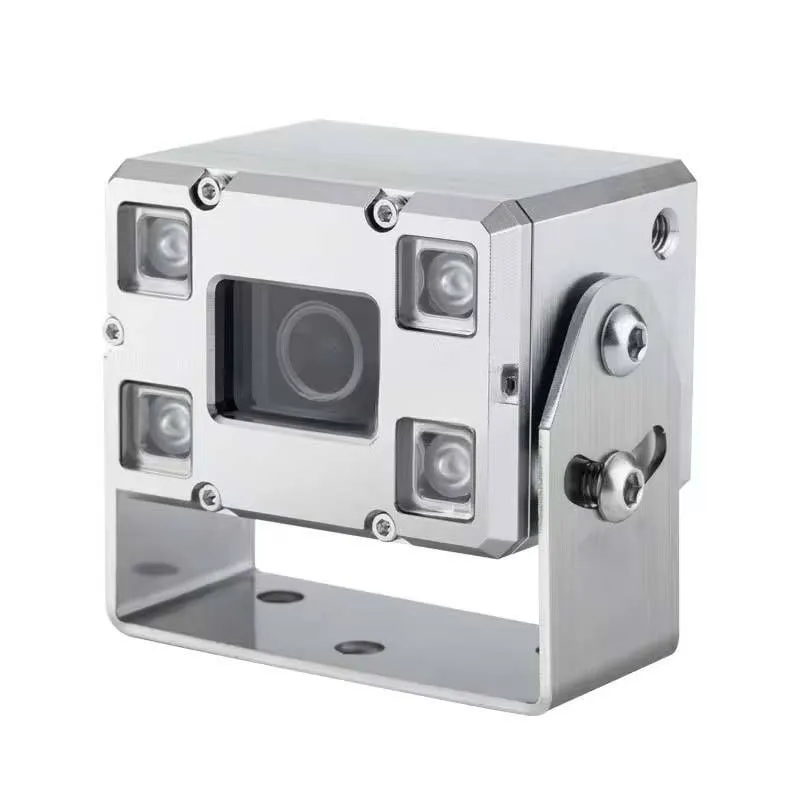

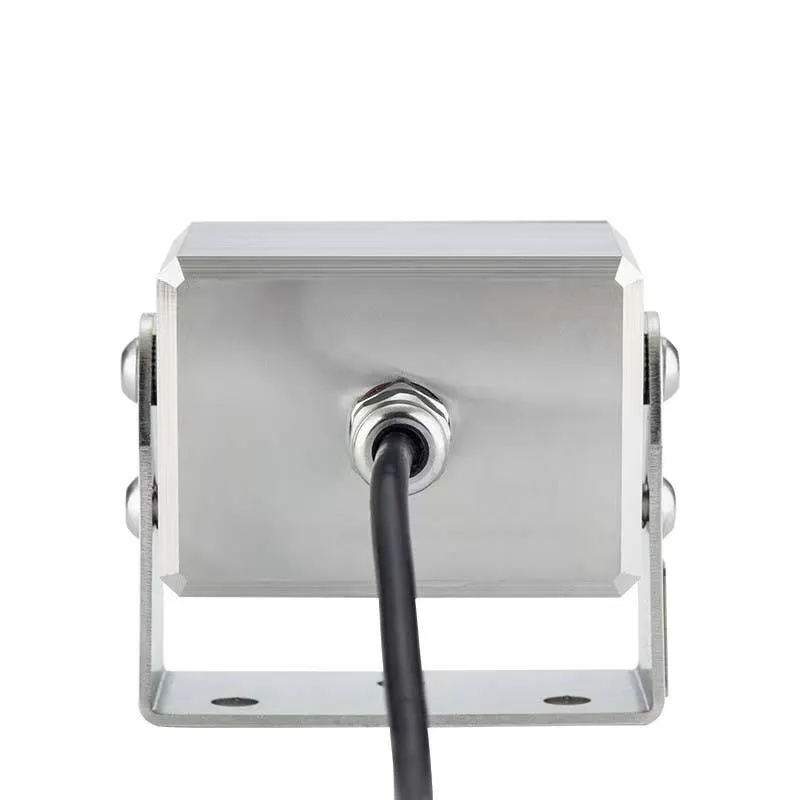

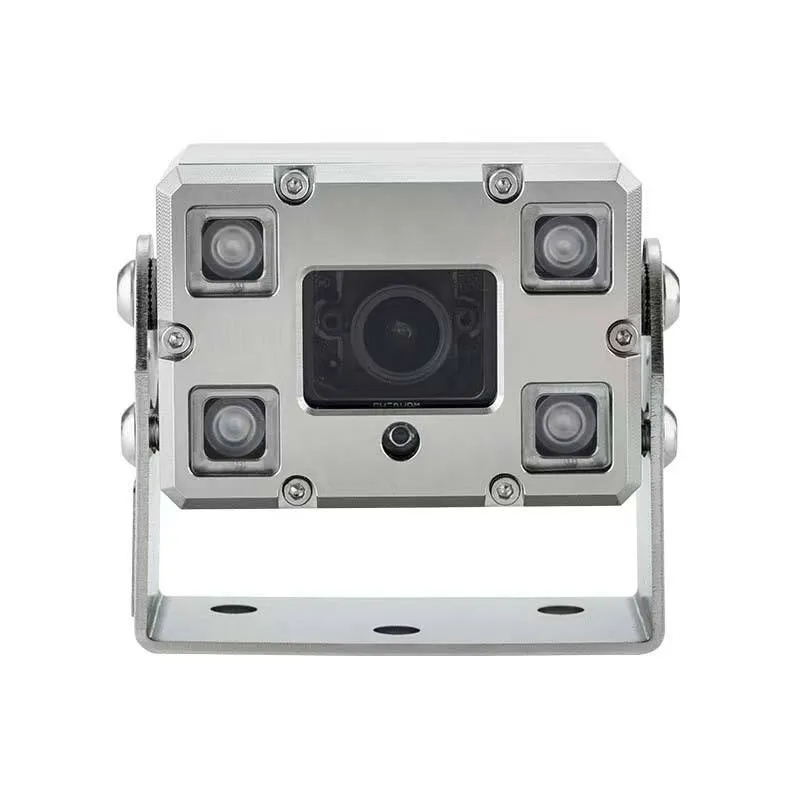

The CA505-HD explosion-proof vehicle camera is designed for hazardous area vehicles and industrial monitoring applications. It combines 1080P HD video output, a rugged 304 stainless steel housing and IP69K waterproof protection to support reliable visibility in harsh working environments.
This camera is suitable for oil tank trucks, chemical transport vehicles, industrial vehicles and other special-purpose vehicles that require a stronger and safer camera solution than standard vehicle cameras.
Key Features
The CA505-HD is designed for hazardous area vehicle monitoring, combining a rugged explosion-proof housing, IP69K waterproof protection and 1080P HD video output for demanding working environments.
304 Stainless Steel Housing
Built for special vehicles and hazardous area applications where stronger housing protection is required.
IP69K Waterproof Protection
Suitable for harsh outdoor vehicle environments, high-pressure cleaning and demanding working conditions.
1080P HD Video Output
Supports AHD / TVI / CVI / CVBS video output with PAL and NTSC options.
Day & Night Monitoring
ICR day/night switching and optional IR night vision help improve visibility in low-light environments.
75Ω BNC Coaxial Transmission
Supports stable coaxial video output for compatible AHD monitors or DVR systems.
Image Enhancement Functions
3D noise reduction, backlight compensation, automatic white balance and gain control help improve image quality.
Best Applications
The CA505-HD is suitable for special vehicles and industrial environments where standard vehicle cameras may not provide enough housing strength or environmental protection.
Oil Tank Trucks
Suitable for visibility monitoring on oil tank trucks and fuel transport vehicles.

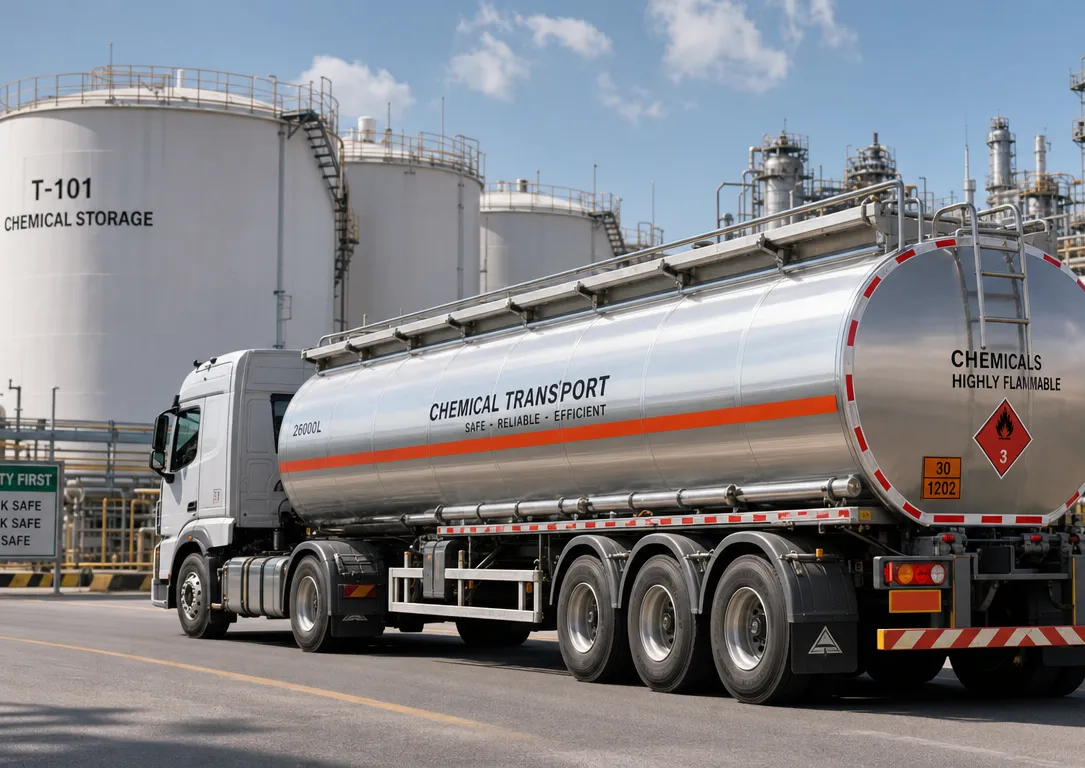

Chemical Transport Vehicles
Designed for vehicles working in chemical transportation and industrial safety environments.
Industrial Vehicles
Supports vehicle monitoring in factories, ports, mining areas and industrial sites.
Special-purpose Vehicles
A suitable option for special vehicles that require stronger camera housing protection.
Hazardous Area Monitoring
Designed for demanding applications where a standard vehicle camera may not be enough.
Outdoor Heavy-duty Applications
Suitable for harsh outdoor environments, heavy-duty vehicle use and demanding working conditions.
Technical Specifications
The CA505-HD explosion-proof vehicle camera is designed for hazardous area vehicle monitoring, with 1080P HD video output, IP69K waterproof protection and 75Ω BNC coaxial transmission.
Camera Performance
| Modelo | CA505-HD |
|---|---|
| Sensor de imagen | 2MP CMOS image sensor |
| Resolución | 1920 × 1080P |
| Video Format | AHD / TVI / CVI / CVBS, PAL / NTSC |
| Iluminación mínima | Color 0.1Lux @ F1.2, AGC ON; B/W 0Lux @ F1.2, AGC ON |
| Relación S/N | >52dB |
Lens and Image Control
| Lens Interface | CS |
|---|---|
| Lente | 2.8mm fixed HD lens |
| Day/Night Mode | ICR automatic switching |
| IR Night Vision | Optional, depending on camera configuration |
| Electronic Shutter | 1/50(1/60)s to 1/50,000s |
| Frame Rate | 50Hz: 25fps; 60Hz: 30fps |
Image Enhancement
| Noise Reduction | 3D noise reduction |
|---|---|
| Backlight Compensation | Auto |
| Balance de blancos | Auto |
| Gain Control | Auto |
| Sync System | Internal sync |
Video and Transmission
| Video Output | 1-channel HD video output, 1Vp-p composite output |
|---|---|
| Output Interface | 75Ω / BNC |
| Video Standard | Coaxial AHD |
| Transmission Cable | Supports 75-3 coaxial cable transmission |
| Audio Output | Optional |
| OSD Menu Control | Optional |
Housing and Environment
| Explosion-proof Structure | Explosion-proof housing design for hazardous area and special-purpose vehicle applications |
|---|---|
| Material | 304 stainless steel housing |
| Vivienda | Rugged stainless steel explosion-proof camera housing |
| Waterproof Rating | IP69K |
| Power Supply | DC12V ±10% |
| Operating Temperature | -40°C to +80°C |
| Operating Humidity | 0–95% RH |
Why Choose CA505-HD?
Compared with standard backup cameras, the CA505-HD is designed for more demanding vehicle and industrial environments. It provides a stronger 304 stainless steel housing, IP69K waterproof protection and coaxial video transmission for hazardous area and special-purpose vehicle applications.
| Standard Vehicle Camera | CA505-HD Explosion-proof Camera |
|---|---|
| General vehicle use | Hazardous area and industrial vehicle use |
| Standard housing | 304 stainless steel explosion-proof housing |
| Standard waterproof design | IP69K waterproof protection |
| General rear view application | Special-purpose vehicle monitoring |
| 4PIN or RCA connection | 75Ω BNC coaxial video output |
Compatible System Options
The CA505-HD can be integrated with compatible AHD monitors, DVR systems and coaxial cable connections. Cable type, connector configuration and system matching can be selected according to the vehicle and installation requirements.
CA505-HD Camera
Explosion-proof AHD vehicle camera for hazardous area applications.
75Ω BNC Coaxial Cable
Supports coaxial video transmission for stable system connection.
AHD Monitor / DVR
Can work with compatible AHD display or DVR recording systems.
Vehicle Monitoring System
Suitable for special vehicles, industrial vehicles and hazardous area monitoring.
Frequently Asked Questions About CA505-HD
Here are some common questions about the CA505-HD explosion-proof vehicle camera for hazardous area and industrial vehicle applications.
What vehicles is the CA505-HD suitable for?
The CA505-HD is suitable for oil tank trucks, chemical transport vehicles, industrial vehicles and other special-purpose vehicles working in demanding or hazardous environments.
What video formats does this camera support?
The camera supports AHD / TVI / CVI / CVBS 1080P video output with PAL and NTSC options.
Does this camera support night vision?
IR night vision is available depending on the camera configuration. The camera also supports ICR day/night switching for low-light monitoring applications.
What type of cable is used for transmission?
The camera supports 75Ω BNC coaxial video output and can work with suitable coaxial cables for stable video transmission.
Is the camera waterproof?
Yes. The CA505-HD supports IP69K waterproof protection, making it suitable for harsh outdoor vehicle environments.
Can this camera work with DVR systems?
Yes. The CA505-HD can be integrated with compatible AHD DVR or monitor systems. Please confirm the video format and connector requirements before installation.
Need an Explosion-proof Camera for Hazardous Area Vehicles?
Send us your vehicle type, installation position and system requirements. Our team will help recommend a suitable explosion-proof camera and connection solution for your application.
