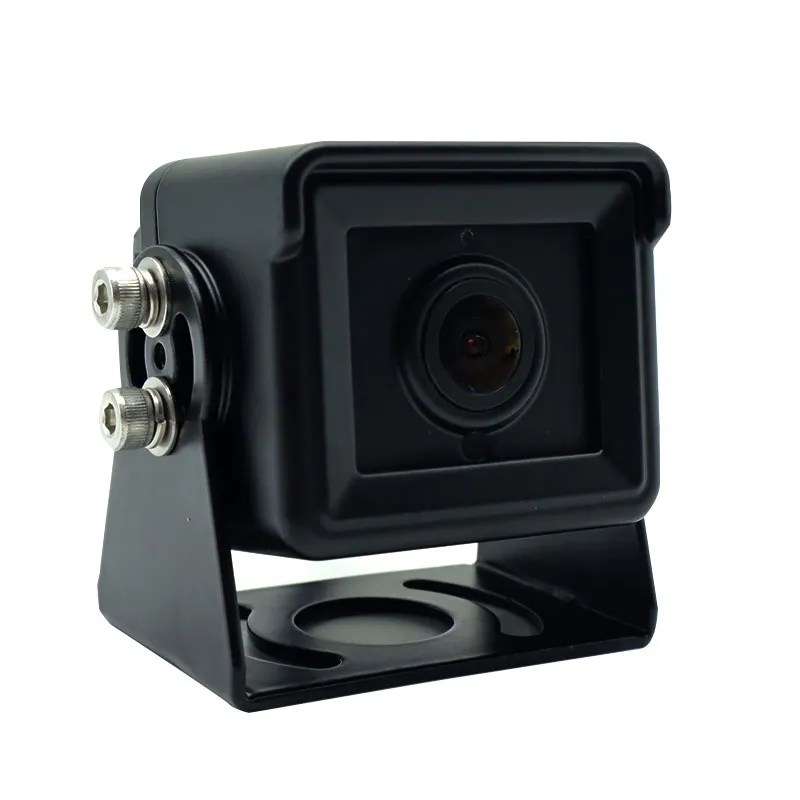

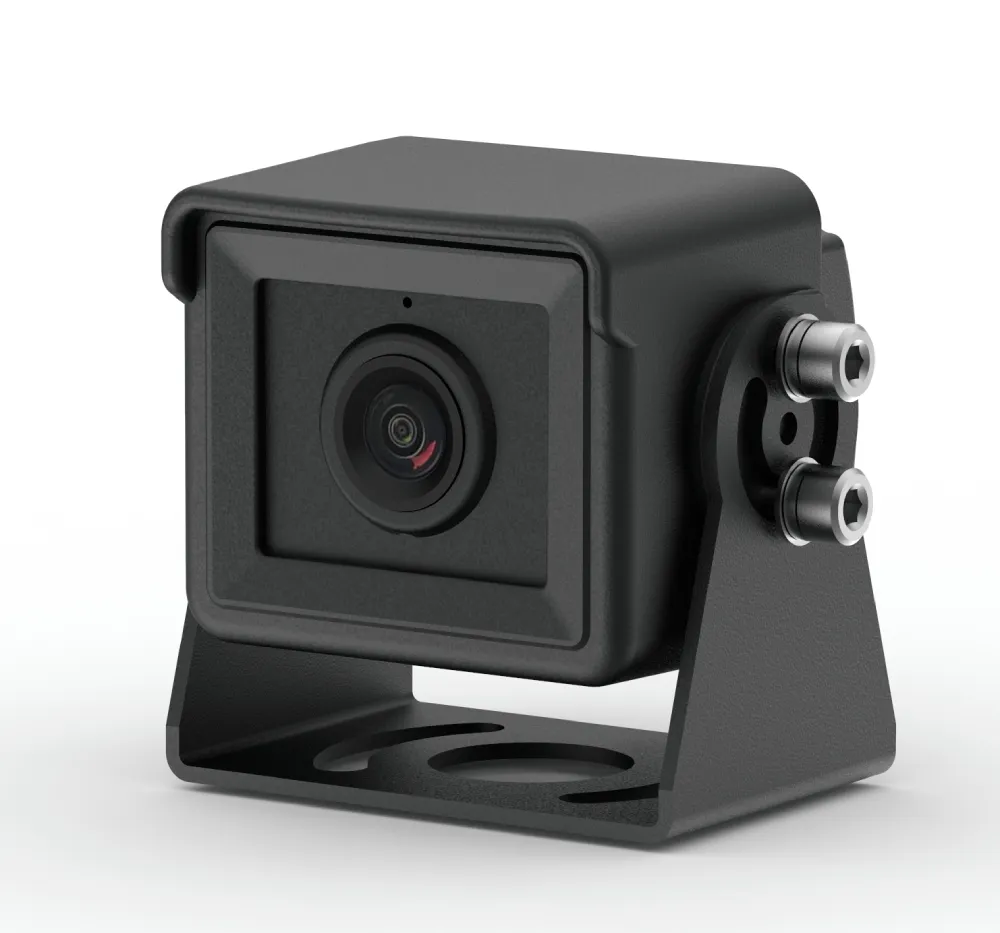

Wide Viewing AHD Vehicle Camera for Commercial Vehicles

The CA8088-HD is a wide viewing AHD vehicle camera designed for trucks, buses, RVs, commercial vehicles and specialty vehicles that require reliable rear view, side view or blind spot monitoring. With optional CVBS, AHD720P and AHD1080P video output, it can be used with different vehicle monitor and DVR systems according to project requirements.

This camera supports a 130° default viewing angle, with 170° optional for wider coverage. It also features starlight color night vision, mirror / non-mirror image options, PAL / NTSC system options and IP69K waterproof protection for demanding outdoor vehicle applications.

Key Features

• Wide viewing angle: 130° default, 170° optional
• CVBS / AHD720P / AHD1080P video output optional
• Starlight night vision with color image
• Mirror image and non-mirrored image optional
• PAL / NTSC system optional
• Built-in microphone optional
• IP69K waterproof protection for outdoor vehicle use
• DC12V standard power supply, DC24V optional

Ideal Applications

The CA8088-HD is suitable for trucks, buses, RVs, commercial vehicles and specialty vehicles where reliable rear visibility and durability are essential. It is a practical camera option for reversing monitor systems, side view monitoring, fleet visibility upgrades and blind spot coverage.

Technical Specifications

Compact Vehicle Camera Dimensions

The CA8088-HD camera housing is compact and suitable for vehicle installation. According to the dimension drawing, the front size is approximately 57mm wide and 59mm high, with an overall depth of approximately 53.5mm. The side bracket width is approximately 38mm.

FAQ

What video output does the CA8088-HD support?

The CA8088-HD supports CVBS, AHD720P and AHD1080P video output options, depending on the selected configuration.

What is the viewing angle of this vehicle camera?

The default viewing angle is 130°, and 170° is available as an optional wide viewing configuration.

Can this camera be used at night?

Yes. The camera supports starlight night vision and provides a color image in low-light environments.

Is the CA8088-HD waterproof?

Yes. The camera supports IP69K waterproof protection, making it suitable for outdoor vehicle installation.

Can the image be set as mirror or non-mirror?

Yes. Mirror image and non-mirrored image options are available according to installation requirements.

What vehicles is this camera suitable for?

It is suitable for trucks, buses, RVs, commercial vehicles and specialty vehicles that require reliable rear view, side view or blind spot monitoring.
