How to Adjust Backup Camera Angle for a Better Rear View

A backup camera can show a clear image and still be hard to use if the angle is wrong. If the camera points too high, the area close behind the vehicle may disappear. If it points too low, too much of the screen may be wasted on the bumper or ground. The best backup camera angle balances close-range reference and usable rear distance.

This guide explains how to adjust backup camera angle correctly, what angle works best for different vehicle types and reversing tasks, and how to avoid common setup mistakes that make rear-view images less useful.

Quick Answer: What Is the Best Backup Camera Angle?

The best backup camera angle shows a small reference view of the bumper or rear edge, the ground directly behind the vehicle, and enough rear distance to judge obstacles safely. In most cases, the image should help the driver see where the vehicle ends, what is close behind it, and whether there is enough space to continue reversing.

For a full system overview, see:
➡️ backup camera systems guide

Why Backup Camera Angle Matters So Much

A backup camera may be working properly and still provide a poor rear view if the angle is wrong. Many reversing problems come not from bad hardware, but from a camera that is mounted too high, too low, or aimed at the wrong balance point.

A correct angle improves:

• rear blind zone visibility
• driver distance judgment
• parking and docking accuracy
• reversing confidence
• usefulness of parking guidelines

A poor angle can make the image look clear while still making it hard to judge space in real driving. That is why a few degrees of adjustment can make a major difference.

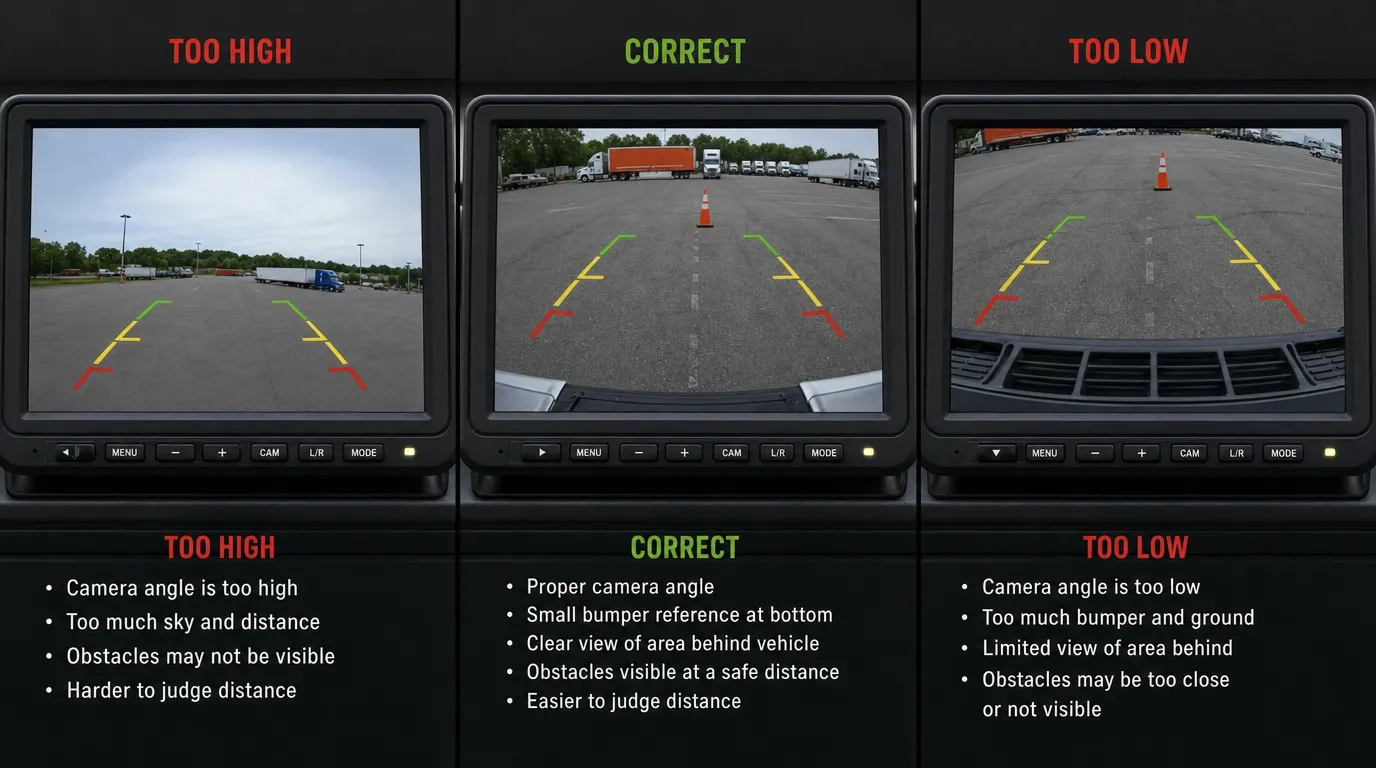

What Happens If the Camera Angle Is Too High?

When a backup camera points too high, it usually shows more rear distance but less of the near-ground area behind the vehicle.

This can cause problems such as:

• poor visibility close to the bumper
• difficulty seeing low obstacles
• reduced confidence in tight reversing
• parking guidelines that feel inaccurate in practice
• weak close-range reference for where the vehicle actually ends

A high angle may look impressive because it shows a wider scene, but it often hides the detail that matters most in close-range reversing.

What Happens If the Camera Angle Is Too Low?

When a backup camera points too low, it usually shows too much ground immediately behind the vehicle and not enough useful depth farther back.

This can cause problems such as:

• too much of the bumper or ground filling the screen
• not enough rear-distance view
• reduced awareness of obstacles farther back
• poor balance between close detail and overall rear space
• a rear image that feels cramped or less useful

A low angle may help with close positioning, but it can reduce the driver’s ability to judge the broader reversing path.

What a Good Backup Camera View Should Show

A good backup camera view is not simply wide. It should help the driver judge where the vehicle ends, what is close behind it, and whether there is enough space to continue reversing safely.

In most cases, a useful rear-view image should show:

• a small reference portion of the bumper, tail edge, or rear step
• the ground directly behind the vehicle
• enough rear distance to identify obstacles before they become critical
• a balanced image that helps drivers judge both position and space

The exact balance depends on vehicle height, camera mounting point, and reversing use.

The Best Angle Depends on the Reversing Task

The right backup camera angle depends on how the vehicle is actually used. A setup that feels fine in one situation may feel wrong in another.

Common reversing scenarios include:

• daily parking in tight spaces
• docking near loading bays
• reversing near walls or poles
• trailer maneuvering
• commercial vehicle yard operation
• reversing where pedestrians or low obstacles may appear

For example, a parking-focused setup may need stronger close-range reference, while a docking or trailer setup may need a different balance between near-ground detail and longer rear-path visibility. The best angle is the one that matches the real task, not just the one that looks widest on screen.

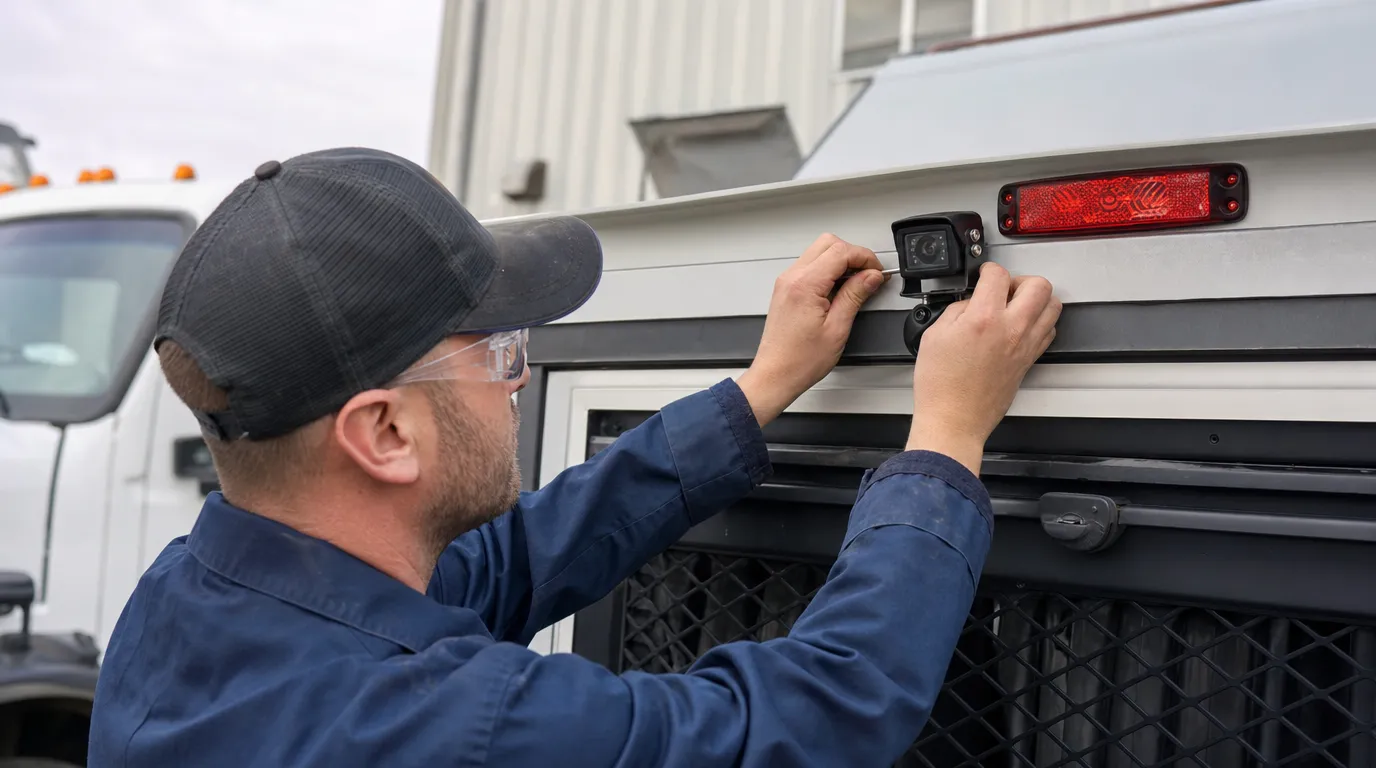

How to Adjust Backup Camera Angle Step by Step

The best way to adjust backup camera angle is to use a real-world test area and judge the image based on actual reversing needs, not just how the screen looks at a quick glance.

Step 1: Park on a Flat Surface

Use a level area so the camera view is not distorted by slope. This makes it easier to judge whether the image balance is correct.

Step 2: Activate the Rear Camera View

Make sure the image appears normally and the monitor is on the correct input. If the image is unstable, distorted, or delayed, the problem may not be angle alone.

Step 3: Check How Much of the Rear Edge Is Visible

A small part of the bumper, rear step, or tail edge is usually helpful as a visual reference. If too much of it fills the screen, the camera is likely aimed too low. If none of it is visible, the driver may lose a useful reference for where the vehicle actually ends.

Step 4: Check the Ground Area Behind the Vehicle

Make sure the near-ground zone behind the vehicle is visible. If that area is missing or very limited, the camera is likely aimed too high.

Step 5: Check Rear Distance Visibility

Look at how much usable space behind the vehicle is visible. If the image shows only immediate ground and not enough rear approach area, the camera is likely too low.

Step 6: Adjust Gradually

Make small angle changes rather than large ones. Even a slight tilt change can make a big difference in how useful the image becomes.

Step 7: Recheck with Real Obstacles

Place boxes, cones, markers, or other safe reference objects behind the vehicle. Confirm whether the image helps the driver judge both close range and farther distance in a realistic way.

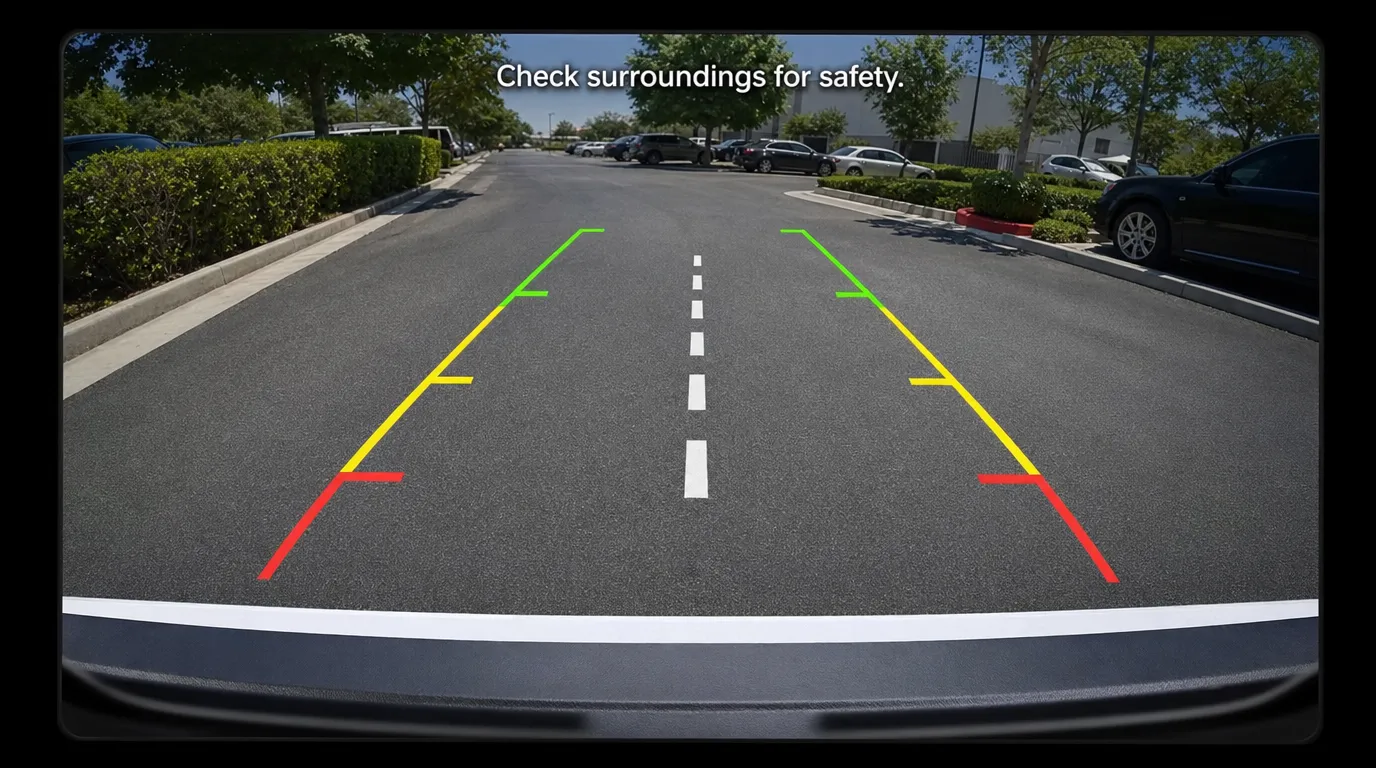

How Much of the Bumper Should You See?

A small amount of bumper visibility is usually helpful because it gives the driver a clear reference for where the vehicle actually ends. But too much bumper on screen wastes image space and reduces visibility farther behind.

A practical target is:

• some rear-edge reference
• enough to judge the vehicle end clearly
• not so much that it dominates the image

If the bumper takes up too much vertical space, the camera is probably aimed too low. If no rear edge is visible at all, close-range judgment may become harder.

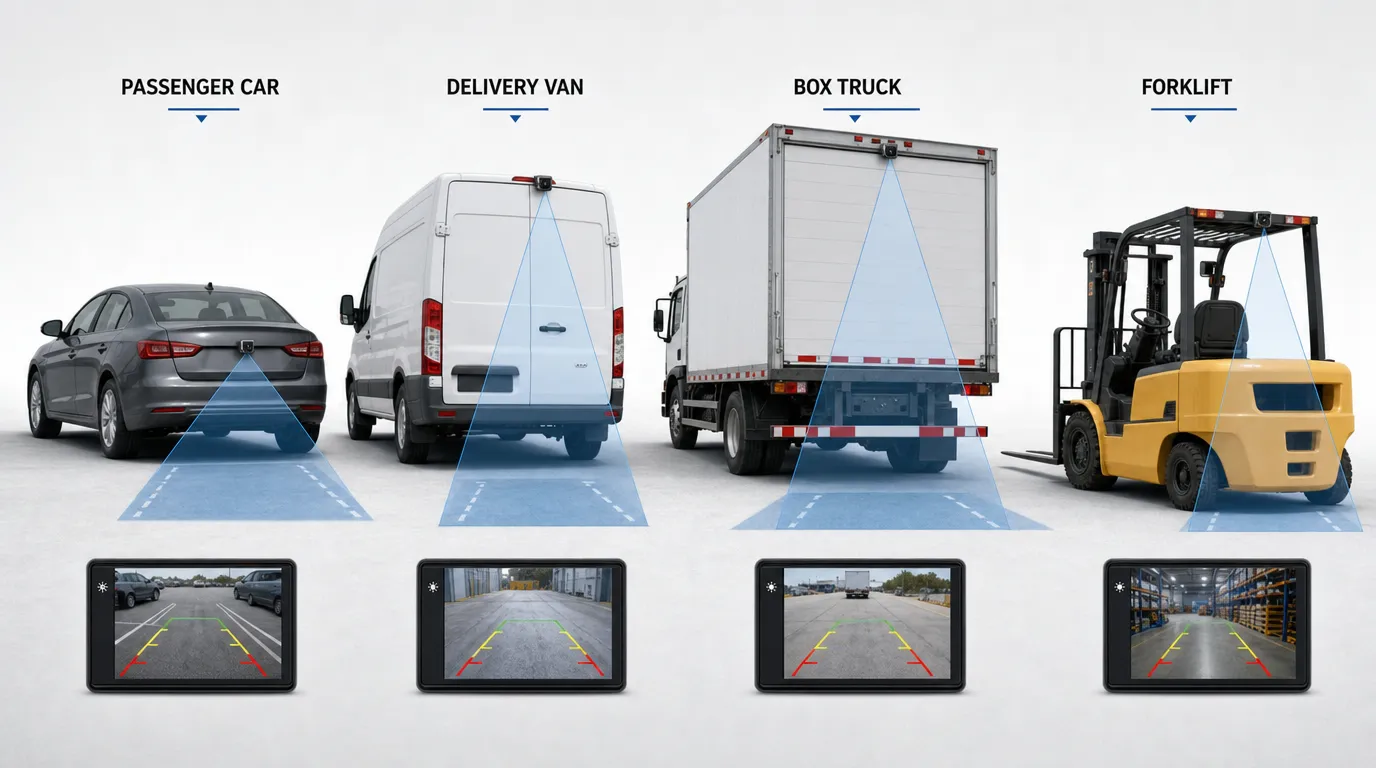

Camera Angle by Vehicle Type

Different vehicles usually need different rear-view balance.

Passenger Cars

Passenger cars often need a balanced view for:

• parking
• low obstacle detection
• daily reversing in tight spaces

A moderate downward angle usually works best because it provides both near-ground detail and enough rear-distance visibility.

Vans and Pickup Trucks

Vans and pickups often need slightly more close-range visibility because:

• rear body height is higher
• body design can reduce natural rear visibility
• low obstacles may disappear more easily behind the vehicle
• drivers may reverse more often in delivery or business settings

Trucks and Commercial Vehicles

Commercial vehicles usually need a more task-driven setup. Depending on the use case, the camera may need to prioritize:

• docking accuracy
• rear obstacle awareness
• reversing behind a higher vehicle body
• wider rear safety margin

A fixed one-angle-fits-all approach is often not ideal for commercial setups. The best angle depends on the actual reversing task.

Trailers and RVs

Trailers and RVs often require a setup that balances:

• close backing reference
• broader rear path awareness
• longer reversing-distance judgment

Because the rear body is often longer or higher, testing the angle in real maneuvering conditions is especially important.

Why Camera Height Affects Angle Performance

Camera angle and camera height work together. A high-mounted camera and a low-mounted camera do not produce the same result even if the tilt angle looks similar.

In general:

• higher mounting positions show more rear distance
• lower mounting positions show more near-ground detail

That is why angle adjustment should never be judged by tilt alone. The mounting position matters just as much as the aim of the lens.

Field of View vs Camera Angle: Not the Same Thing

Many users try to solve an angle problem by expecting a wider lens to fix it, but field of view and camera angle are not the same adjustment.

They are related, but different:

• Camera angle = where the camera is aimed
• Field of view = how wide the lens can see

A wide-angle lens can still be badly aimed. A correctly aimed camera can still feel limited if the field of view is too narrow. A useful rear-view setup depends on both.

When Parking Guidelines Feel Wrong, the Angle May Be the Real Problem

Drivers sometimes assume parking guidelines are inaccurate because of software or monitor settings. In many cases, the real issue is that the camera angle does not match the expected guideline geometry.

If the camera is tilted too high or too low:

• distance judgment feels off
• lines appear less trustworthy
• reversing becomes less intuitive

Before recalibrating the guidelines, it often makes sense to confirm that the camera angle is correct first.

If you need to fine-tune the line setup itself, see:
➡️ how to calibrate backup camera guidelines correctly

Common Backup Camera Testing and Adjustment Mistakes

The same mistakes appear again and again during setup.

1) Showing Too Much Bumper

This reduces usable rear image space and often means the camera is aimed too low.

2) Showing Too Much Sky or Far Distance

This often hides close-range hazards behind the vehicle and usually means the camera is aimed too high.

3) Ignoring the Real Reversing Task

The best angle for parking is not always the best angle for docking, trailer maneuvering, or commercial reversing.

4) Judging the Image Only While Parked Indoors

The angle may feel fine in a static indoor test but become less useful in real outdoor reversing conditions.

5) Not Checking the Angle with Actual Obstacles

A camera angle should be tested with realistic reference objects, not just by casually looking at the screen.

6) Making Large Adjustments Too Quickly

A few degrees can change the view a lot. Large changes make it harder to understand what actually improved.

How to Tell If the Angle Is Good Enough

A backup camera angle is usually good enough when the driver can do three things easily:

• identify the rear edge of the vehicle
• see the immediate ground zone behind it
• judge whether there is enough space to continue reversing safely

If one of those is missing, the angle often still needs adjustment.

If the Image Is Still Not Useful, the Problem May Not Be the Angle Alone

Sometimes the angle is only part of the issue. A rear-view image can still feel poor because of:

• dirty lens
• low image quality
• weak low-light performance
• unstable signal
• wrong monitor size or placement
• power or wiring issues

If the camera image is unstable or inconsistent, see:
➡️ backup camera not working: common causes, signal problems, and fixes

If you are still deciding on system type, see:
➡️ wired vs wireless backup camera systems

Simple Angle Check Table

What You See	Likely Issue	Likely Adjustment
Too much bumper or ground	Camera too low	Tilt slightly upward
Too much distance, not enough near-ground	Camera too high	Tilt slightly downward
View feels wide but not useful	Poor angle balance	Recheck mounting aim
Guidelines feel inaccurate	Angle may not match line geometry	Re-aim before recalibrating lines
Rear image still hard to use	Problem may include lens, signal, or display	Check the full system

Need a More Useful Rear View from Your Backup Camera?

A backup camera does not need the widest image. It needs the most useful image for the actual reversing task. The wrong angle can make even a good camera system feel unreliable in daily use.

We can help you:

• choose a more practical camera angle for your vehicle type
• balance bumper visibility and rear-distance view
• improve rear visibility for reversing, parking, or docking
• reduce image problems caused by poor mounting position

👉 Share your vehicle type and current rear-view issue to get a recommended setup direction Hier klicken

FAQ

What is the best angle for a backup camera?

The best backup camera angle shows a small reference view of the bumper or rear edge, the ground directly behind the vehicle, and enough rear distance to judge obstacles safely.

Should I see the bumper in my backup camera?

Yes, usually a small portion of the bumper or rear edge is helpful because it shows where the vehicle ends. But too much bumper on screen reduces useful rear visibility.

Why does my backup camera show too much ground?

This usually means the camera is tilted too low. A slight upward adjustment often improves the balance between near-ground view and rear-distance visibility.

Why does my backup camera show too much sky or distance?

This usually means the camera is aimed too high. A slight downward adjustment can help show the area closer behind the vehicle more clearly.

Can the wrong camera angle affect parking guidelines?

Yes. If the camera angle is too high or too low, the parking guidelines may feel inaccurate even if the line settings themselves are correct.
