BSM vs. RCTA: Are They Truly Different Safety Technologies?

Feeling secure with your car's safety features, but unsure about what they actually do? This false confidence can be dangerous, especially when you can't see what's lurking just out of view.

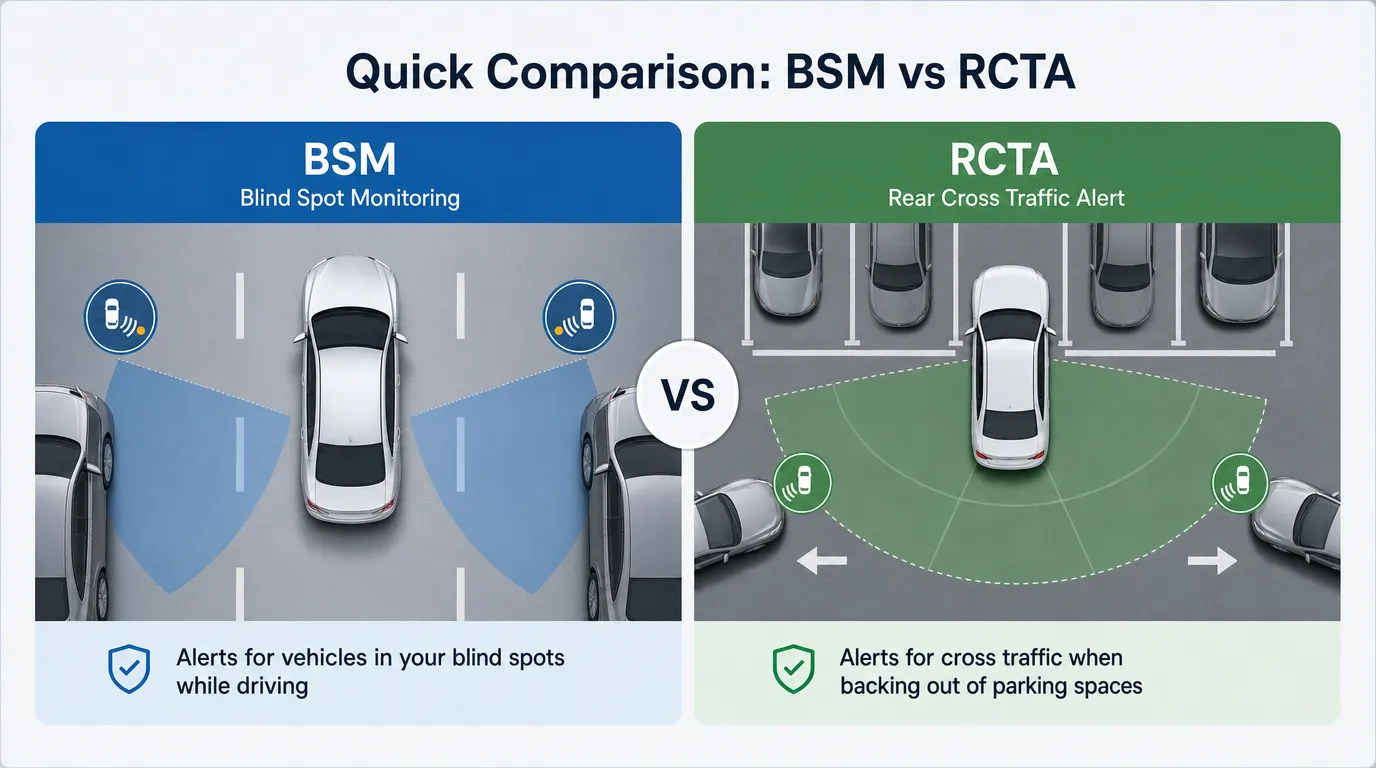

Yes, they are fundamentally different. A Blind Spot Monitor (BSM) uses radar to watch adjacent lanes while you drive forward. Rear Cross Traffic Alert (RCTA)¹ uses the same radar but with different logic to watch for crossing traffic specifically when you are reversing.

As the founder of VST Tech, I've spent years in the lab and on the test track perfecting these systems. The user manual gives you the basics, but it doesn't tell the whole story. The real difference isn't just in the name; it's in the software, the physics, and the specific type of accident each system is engineered to prevent. Let's peel back the layers and examine the core technology to truly understand how they protect you.

How Does a Blind Spot Monitor Technologically See What You Can't?

You check your mirrors and shoulder-check, but that terrifying horn blare tells you a car was perfectly hidden. How can a small sensor prevent this high-speed threat² with such precision?

BSM uses millimeter-wave radar³ (typically 24 GHz or 77 GHz) to continuously scan a specific zone. It analyzes the Doppler shift of the radar waves to detect the speed and presence of other vehicles, ignoring stationary objects like guardrails to prevent false alerts.

I remember one of our earliest challenges was calibration. It’s not enough to just detect an object. The system’s brain, the ECU, has to instantly calculate if that object is A) a vehicle and B) moving at a speed that makes it a threat. We programmed the system to ignore objects you are passing quickly, but to alert you to vehicles that are pacing you or closing in on your blind spot. This intelligent filtering is the secret sauce that makes BSM a reliable co-pilot on a chaotic highway, rather than an annoying distraction.

The Physics of a Safer Lane Change

BSM is a marvel of focused engineering. Its job is highly specific: to monitor a well-defined area and provide a simple, non-intrusive alert.

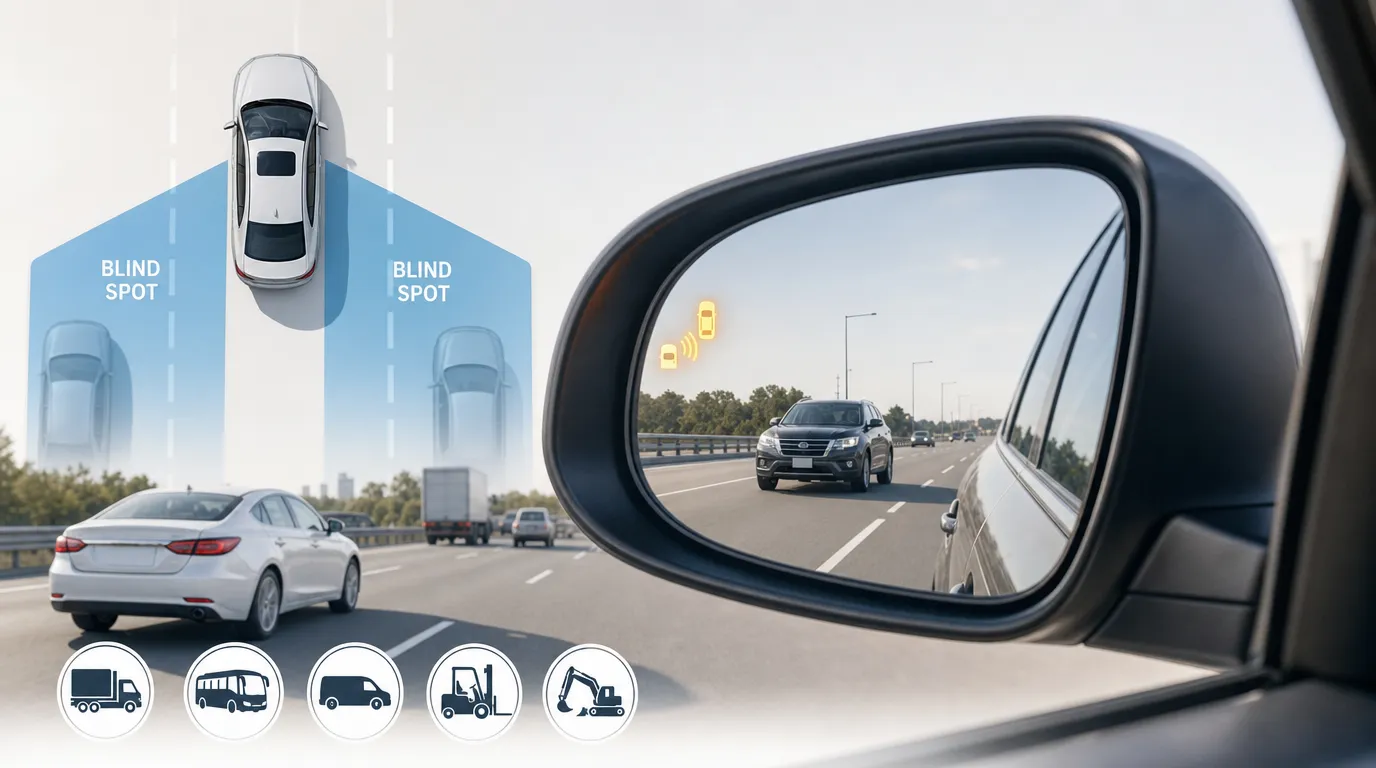

• Radar Zone: The detection area is shaped like a cone, typically extending about 3 meters to the side and 10 meters back from your rear bumper. This covers the traditional blind spot and a little beyond.
• Doppler Effect Analysis: This is the key. The radar measures the change in frequency of the returning waves. This tells the system the relative velocity of the other car. If the relative velocity is near zero (pacing you) or negative (they are catching up), it triggers the alert. This is how it ignores trees and signs.
• Alert Logic: The primary alert is a gentle, steady light on the mirror. It only becomes aggressive (flashing light and/or audible beep) if you signal a lane change while a threat is detected. This tiered approach prevents "alert fatigue⁴."

Performance Under Pressure: BSM Scenarios

The system's effectiveness is tied directly to the driving environment⁵.

BSM is an intelligent sentry, specifically trained for the single task of guarding your flanks during forward motion.

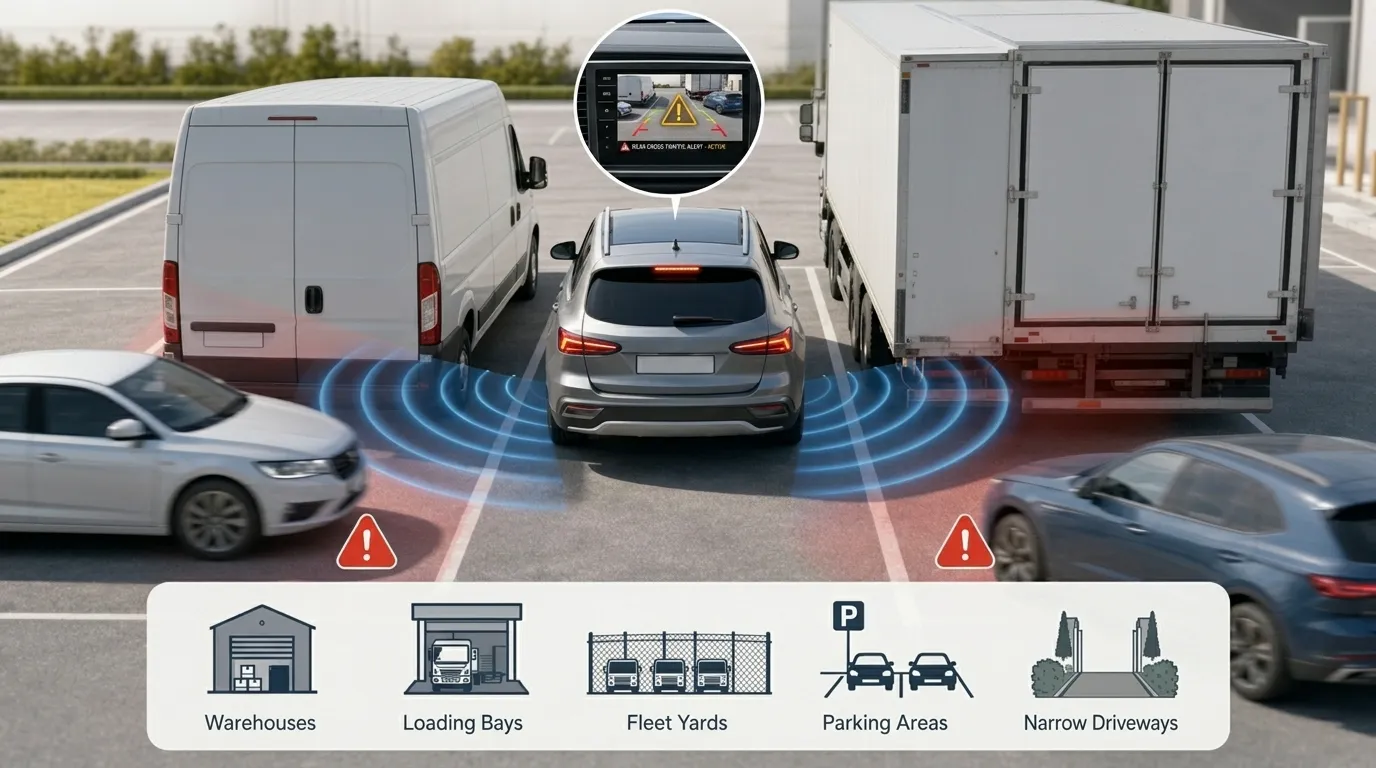

What Makes RCTA's Technology a Parking Lot Lifesaver?

Parking lots are chaotic, low-speed danger zones. Reversing blind is a recipe for disaster. How does RCTA see around corners to prevent these common, costly collisions?

RCTA repurposes the BSM radar sensors but activates a completely different software protocol when you shift into reverse. It widens its scanning angle to nearly 180 degrees and looks for objects on a potential collision course, calculating their Time to Collision (TTC).

During development, we spent countless hours in packed supermarket parking lots. We learned that RCTA can't just detect presence; it has to predict intent. The system's algorithm isn't just looking for an object; it's tracking its trajectory and speed to determine if it will cross your path while you are backing up. This predictive capability, the TTC calculation, is what elevates it from a simple sensor to a true collision avoidance system⁶. It’s what gives you that crucial extra second to hit the brakes.

A Wider, More Urgent Perspective

While BSM is a focused guard, RCTA is a wide-angle lookout. Its operational parameters are completely different.

• Expanded Radar Zone: The software commands the radar to scan a much broader area, up to 30 meters to the left and right. Its goal is to see far down the parking aisle or sidewalk.
• Time to Collision (TTC)⁷ Calculation: This is the core of RCTA. It doesn't just see a car; it calculates that the car is 25 meters away, traveling at 15 mph, and will intersect your path in 3.0 seconds. If the TTC falls below a preset threshold (e.g., 4.0 seconds), it triggers a loud, unmistakable alert.
• Integration with Braking: Advanced RCTA systems are now often paired with Rear Automatic Emergency Braking (RAEB)⁸. If the TTC becomes critical and you don't react, the car can brake for you to prevent or lessen the impact.

RCTA's Performance in the Real World

This system is tuned for the specific hazards of reversing.

RCTA is a predictive system designed for one purpose: to solve the dangerous "backing blind" problem with wide-angle radar and intelligent threat assessment.

So, Are BSM and RCTA Just One System with Two Names?

It's easy to see why people get confused. The features are often sold in the same package. Is this just a marketing gimmick, or is there a genuine technological distinction?

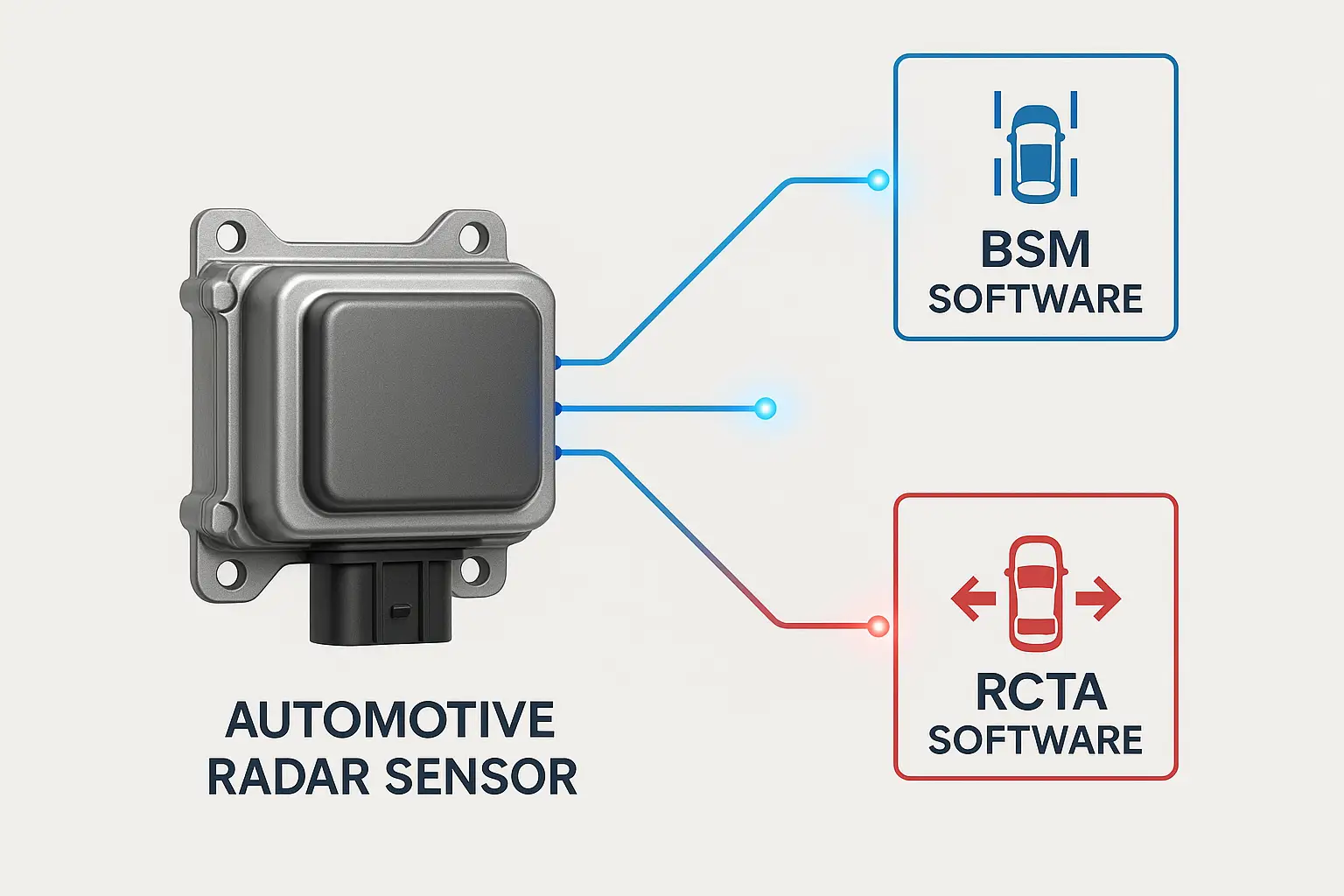

They are two distinct software applications running on a single, shared hardware platform. The vehicle's central computer activates the appropriate software—BSM logic or RCTA logic—based on the gear you've selected and your current speed. Think of it as one tool with two different modes.

At VST Tech, this integration is a core design philosophy. It's efficient and cost-effective. Why install two sets of expensive radar sensors when one, paired with smart software, can perform multiple safety-critical functions? The magic is in the code. When you're driving over 10 mph, the ECU processes the radar signal with the BSM algorithm. The moment you shift to reverse, it switches to the RCTA algorithm, completely changing the sensor's field of view and threat-detection parameters. This seamless transition is what provides a comprehensive bubble of safety.

A Tale of Two Logics

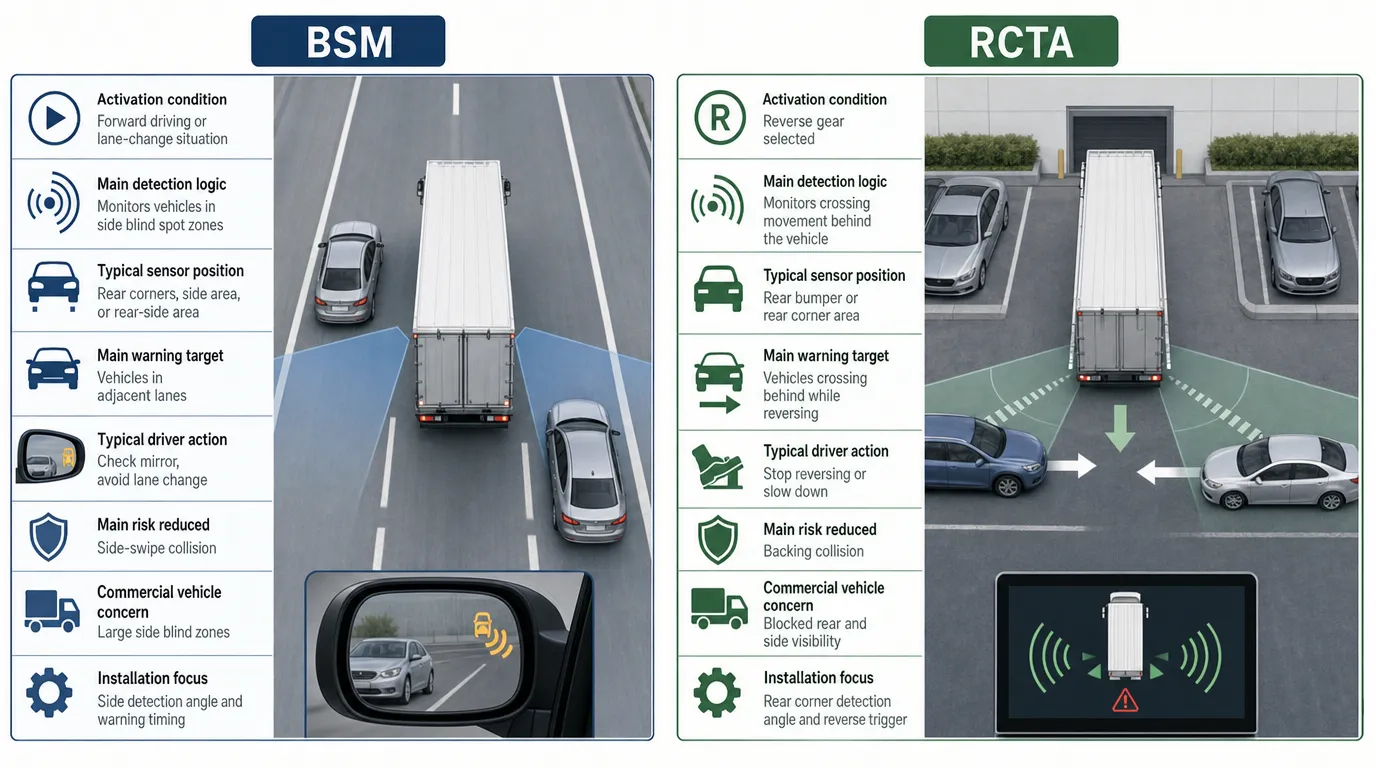

The hardware is the same, but the job description changes entirely. This table breaks down the fundamental operational differences that are governed by the software.

This dual-mode approach is the heart of modern automotive safety systems—maximizing capability while minimizing hardware complexity.

What Are the Critical Limitations These Systems Have?

No technology is infallible. As an engineer committed to safety, I believe the most important thing I can do is educate drivers on not just the strengths, but also the weaknesses of our systems.

Yes, significant limitations exist. The radar can be "blinded" by heavy rain or caked-on mud. More importantly, they have a low "radar cross-section" problem, meaning they struggle to reliably detect non-metallic objects, pedestrians, or even motorcycles in certain conditions.

A system's reliability is only as good as the data it receives. If the radar signal is absorbed by a thick layer of snow or scattered by a torrential downpour, its brain receives garbage data and cannot function properly. Furthermore, we test for "false negatives⁹" constantly. A cyclist wearing non-reflective clothing or a motorcycle approaching at an extreme speed can sometimes be missed. This is why I always stress that these are assistance systems. They are your co-pilot, but you are, and always will be, the captain of your vehicle.

Understanding the Edge Cases

To use these systems safely, you must be aware of where they can fail.

• Radar Cross-Section (RCS): A large metal truck has a high RCS and is easy to see. A person or a plastic kayak has a very low RCS and can be nearly invisible to radar. Never assume RCTA will see a small child.
• High Delta-V: This is the term for a very large difference in speed. If a vehicle approaches your blind spot at an exceptionally high speed, BSM may not have time to register it and alert you before it's too late. The shoulder check is still your best defense here.
• False Positives on Curves: On a sharp highway bend, BSM might briefly detect a guardrail or a car in a lane two over as a threat, causing a false alert. The system is designed to correct this quickly, but it can happen.
• Aftermarket Modifications: Installing a metal bumper or even a bike rack can block or interfere with the radar signals, rendering both systems useless. Always consult your manual before modifying the rear of your car.

True safety comes from pairing the strengths of technology with the irreplaceable judgment of an educated human driver.

Conclusion

BSM and RCTA are not interchangeable. One guards your flanks at speed, the other protects your rear when backing up. They are specialized tools that spring from the same technology.
