Description

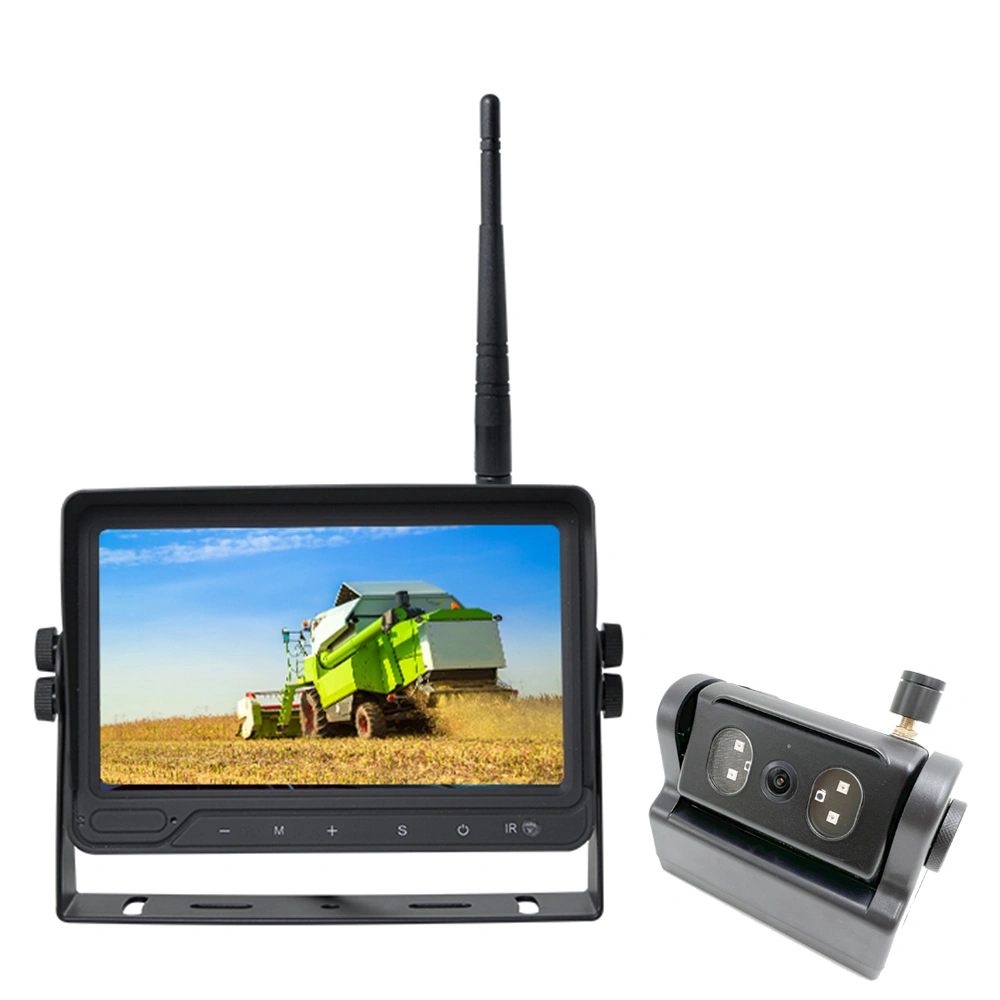

983W-HD Set system features a camera with magnetic base and built in 10050mAh battery, which become much easier for installation and can work upto 17 hours continuous working after being fully charged. A good fit for RV/Box Truck/Trailer/Tractor/Semi-Trailer.

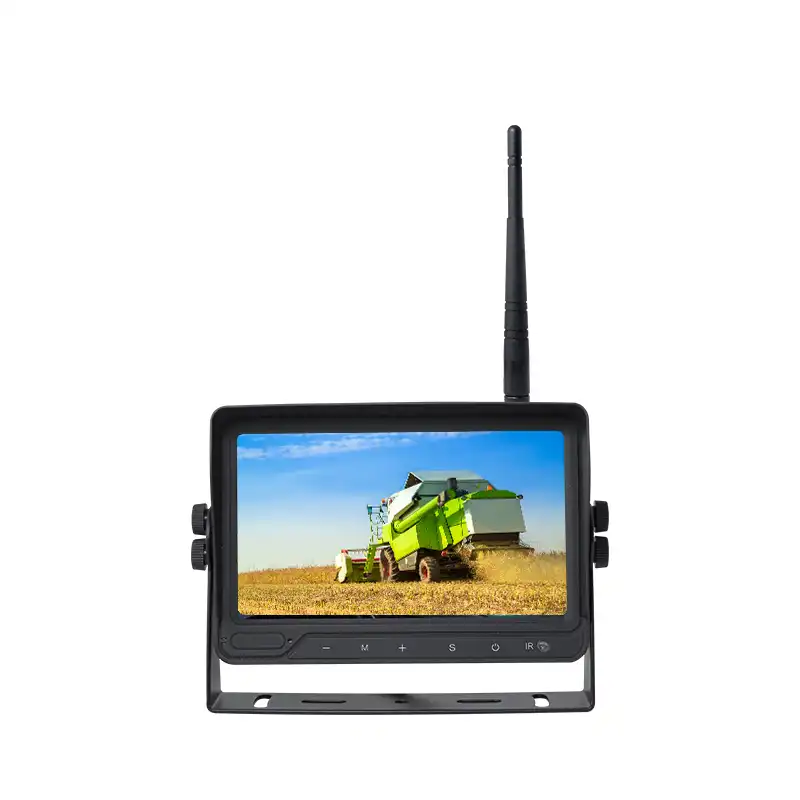

| Wireless Monitor: 706W-HD | |
| Screen Size | 7inch |
| Brightness | 450cd/m² |
| Contrast | 500:1 |
| Resolution | 1024xR.G.Bx600 |
| Working Frequency | 2400-2483.5MHZ |
| Effective Distance | 500 meters in the open field |
| Video Inputs | 4 Channels |

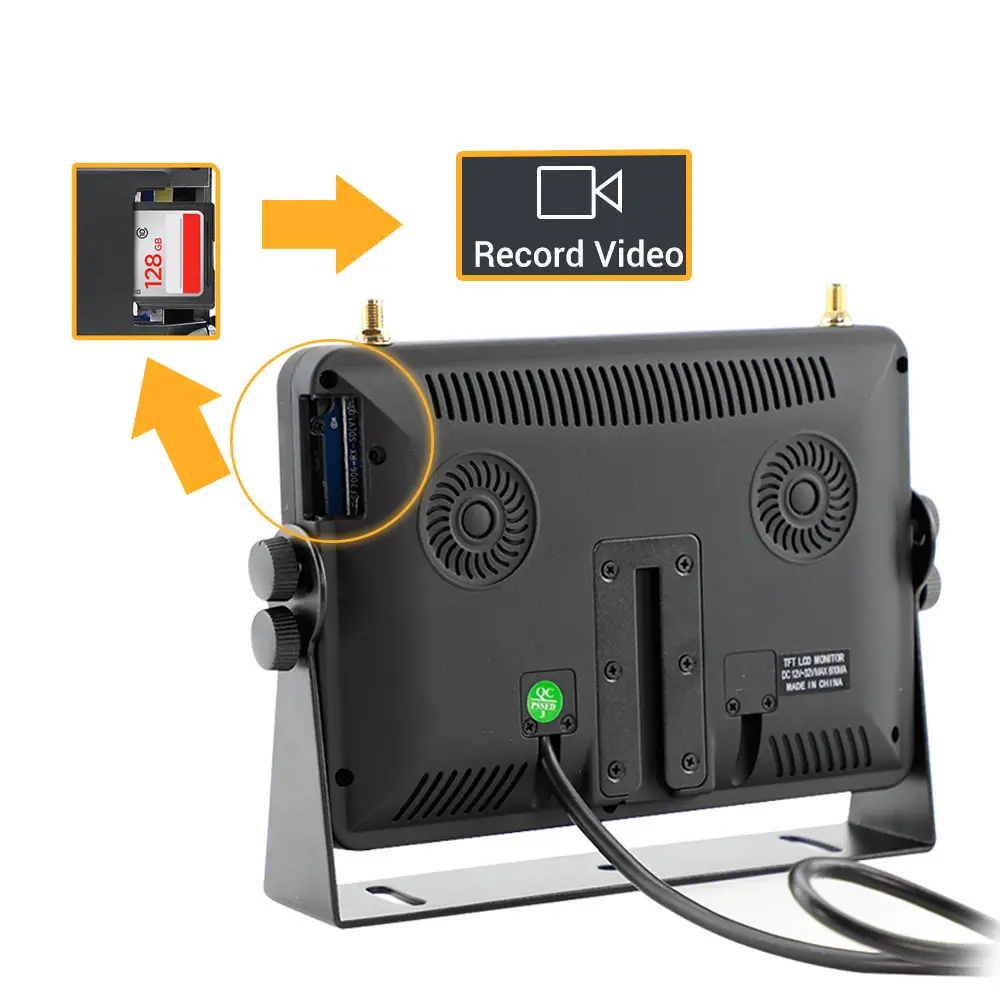

| Recording | 256GB Max |
| Video Format | MP4 |
| TV System | NTSC/PAL (auto switch) |
| Power Supply | DC12V-36V |
| Modulation | 16QAM/QPSK/BPSK |
| Mirror Flip | Non-mirror, mirror, flip, mirror flip |
| Time Delay | 200ms |
| Operation Temp | -20℃~70℃, RH 95%MAX |
| Storage Temp | -40℃~80℃, RH 95%MAX |

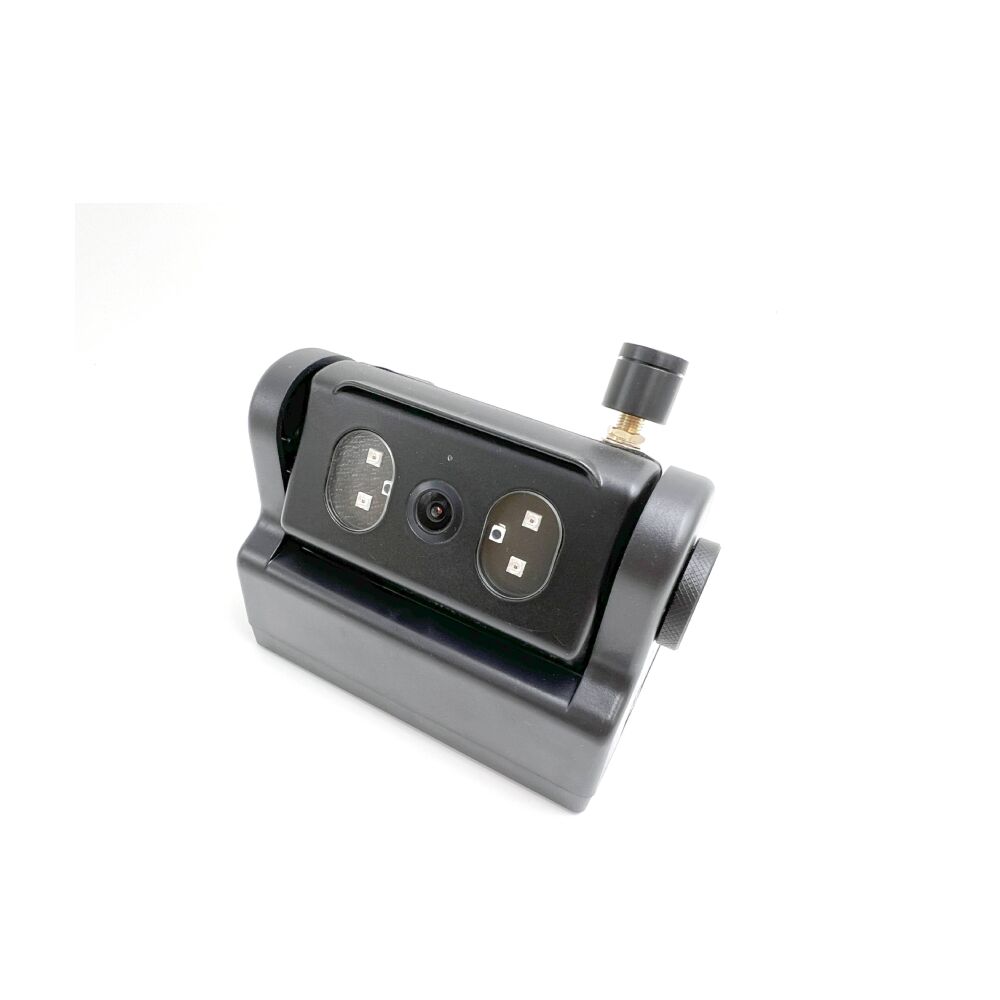

| Wireless Camera: 983W-HD | |
| Image Sensor | 1/2.7'' CMOS SC2235 |
| Resolution | 1920x720; 1920x1080 |
| IR Lights | 4pc |
| View Angle | 110 degree |
| Battery Capacity | 3.7V/10050mAh |
| Discharge Time | 16H(IR OFF); 10H (IR ON) |
| Charge Time | 6.5H |
| Delay | 130ms |
| IR Distance | 15m |
| Waterproof | IP69K |
| Power Supply | 12V/2A |
| Operation Temp | -20℃~70℃, RH 95%MAX |
| Storage Temp | -40℃~80℃, RH 95%MAX |
