Description

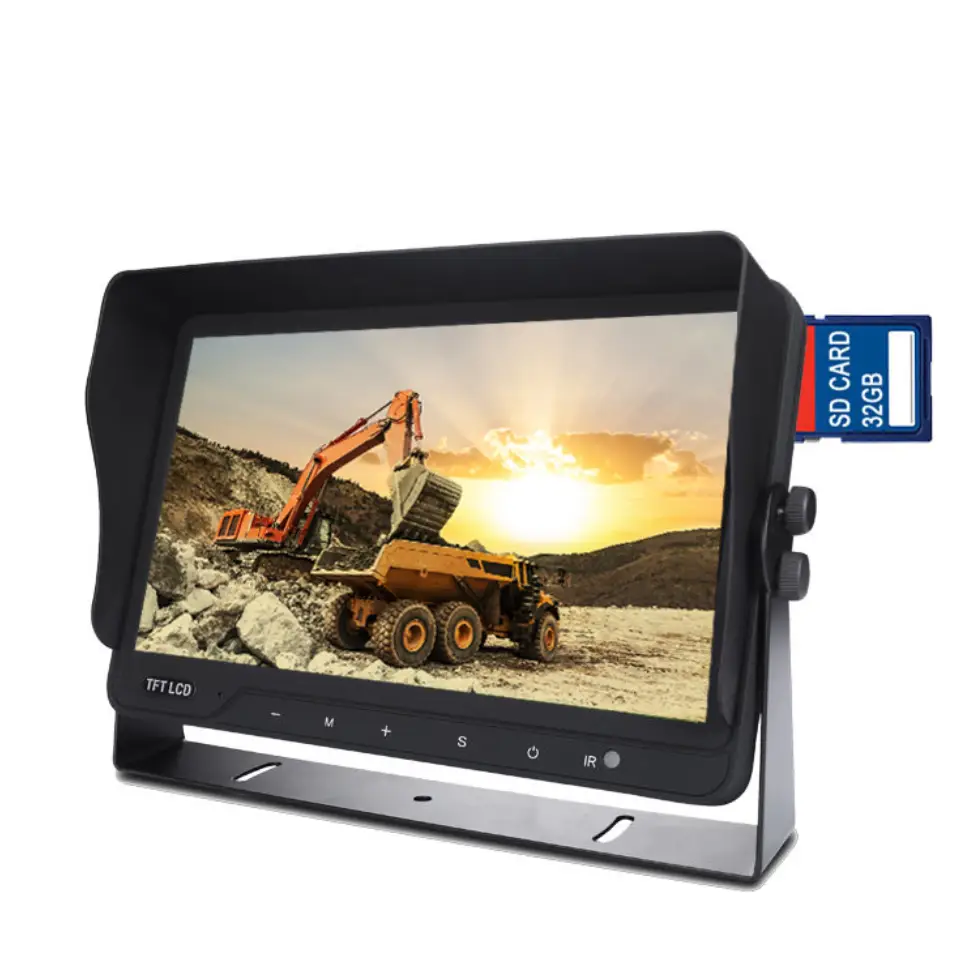

The M906HD supports up to 4 ways, The 9-inch display provides full-screen views of each camera and includes up to 3 triggers to automatically switch to a camera’s view. Equipped with parking lines to assist when maneuvering backward, also includes a built-in speaker so drivers can both see and hear activity within the camera’s range.
| Model | M906-HD |
| Screen Size | 9 Inch |
| Aspect Ratio | 16:9 |
| Resolution | 1024xR.G.Bx600 |
| Contrast | 500:1 |
| Brightness | 450cd/㎡ |
| Viewing Angle | L/R:70, Up:50, Down:70 |
| TV System | NTSC/PAL (auto switch) |
| Video Input | Two or Four Channel |
| Power Supply | DC9-32V |
| Video Format | AHD/CVBS |
| Mirror Flip | Non-mirror, mirror, flip, mirror flip |
| Speaker | Support |
| Dimension | 228mm(L)x26mm(D)x154mm(H) without sunshade |
| Operation Temp | -20℃~70℃ |
