Description

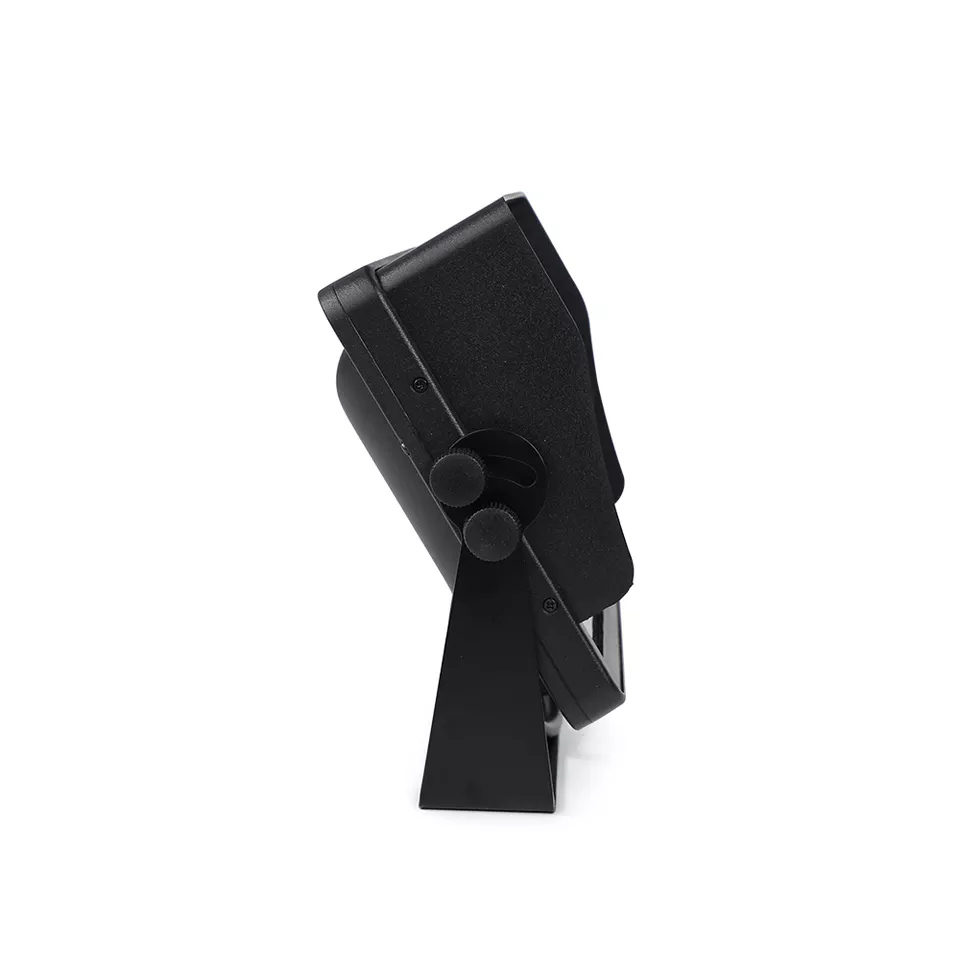

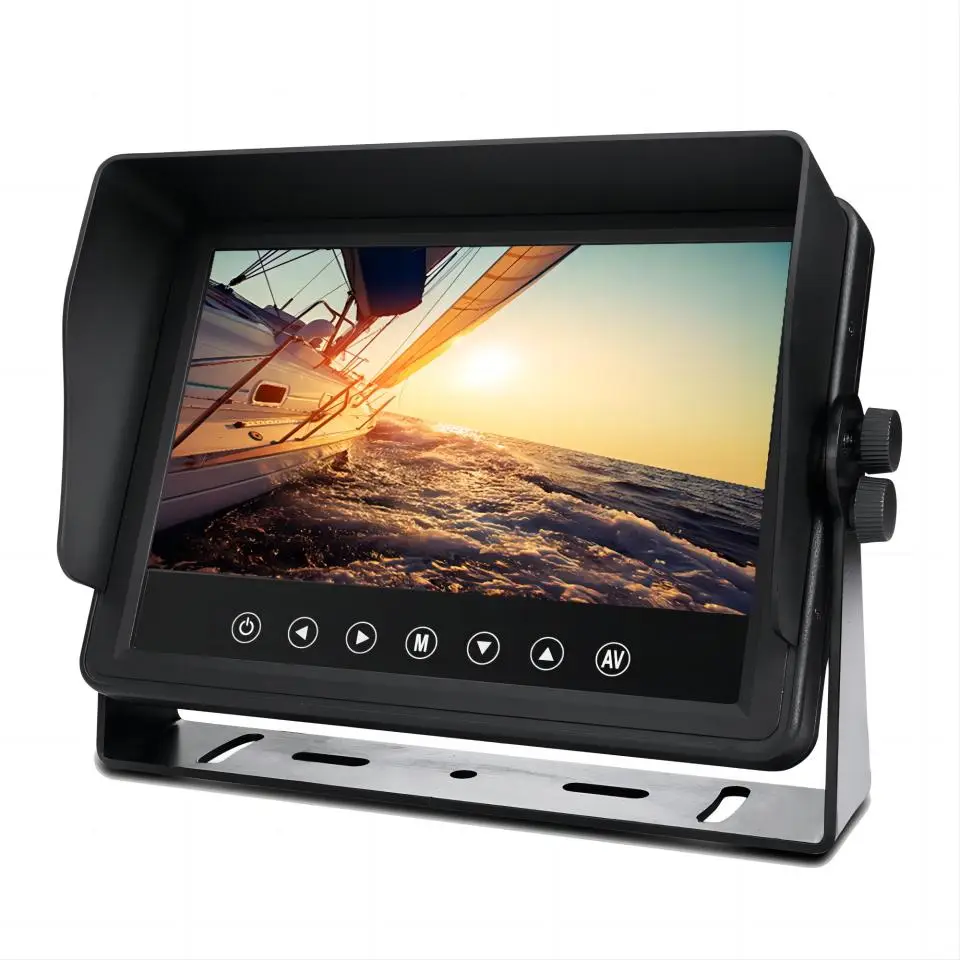

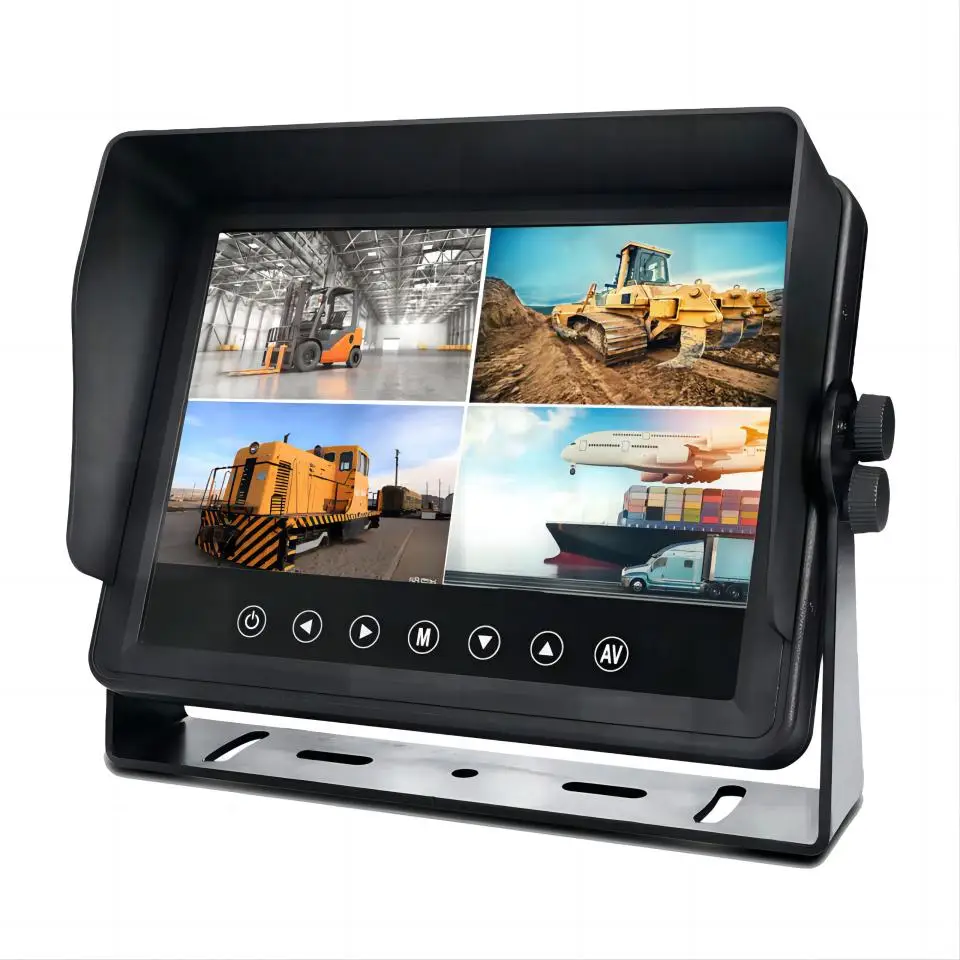

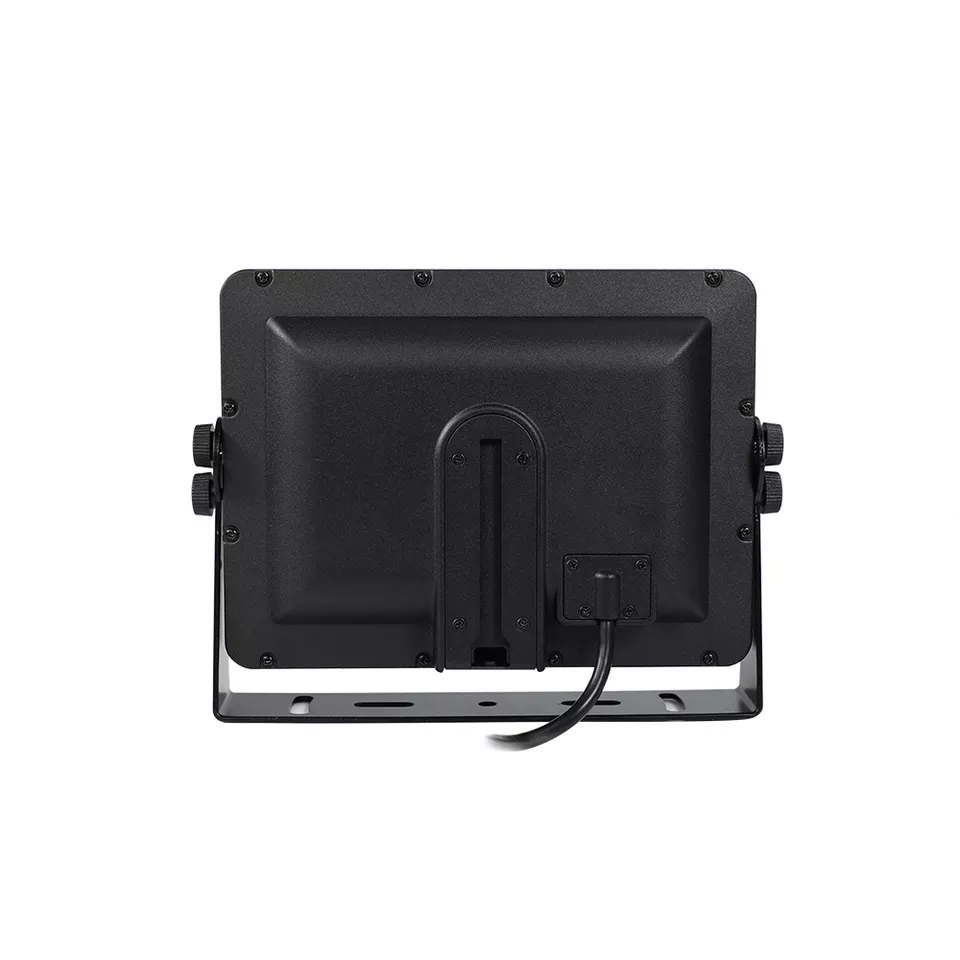

The M709-HD waterproof monitor features IP69K waterproof rating and 3 camera inputs with switchable full-screen views. Up to 2 sensors automatically trigger the display of a camera’s view to supply a visual aid of a single-blind spot, It’s a perfect choice for the outside application like forklifts, cranes, and agricultural machinery working on rainy days.
| Model | M709-HD |
| Screen Size | 7Inch |
| Aspect Ratio | 16:9 |
| Resolution | 1024xR.G.Bx600 |
| Contrast | 500:1 |
| Brightness | 450cd/㎡ |
| Viewing Angle | L/R:70, Up:50, Down:70 |
| TV System | NTSC/PAL (auto switch) |
| Video Input | 1-4 Ways |
| Power Supply | DC9-32V |
| Video Format | AHD/CVBS |
| Mirror Flip | Non-mirror, mirror, flip, mirror flip |
| Waterproof | IP69K |
| Dimension | 186mm(L)x32mm(D)x140mm(H) without sunshade |
| Operation Temp | -20℃~70℃ |
