Description

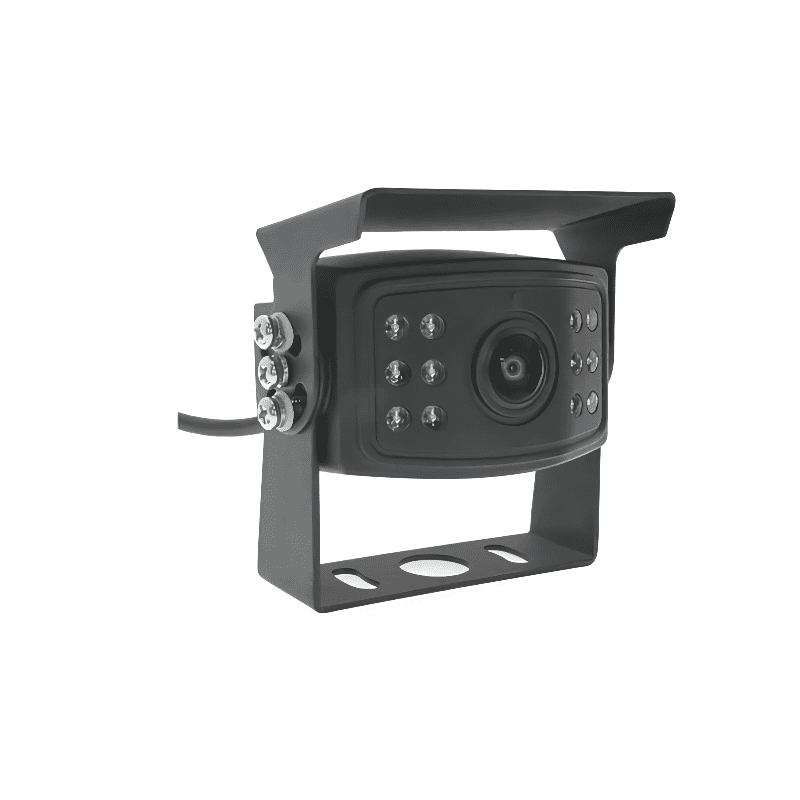

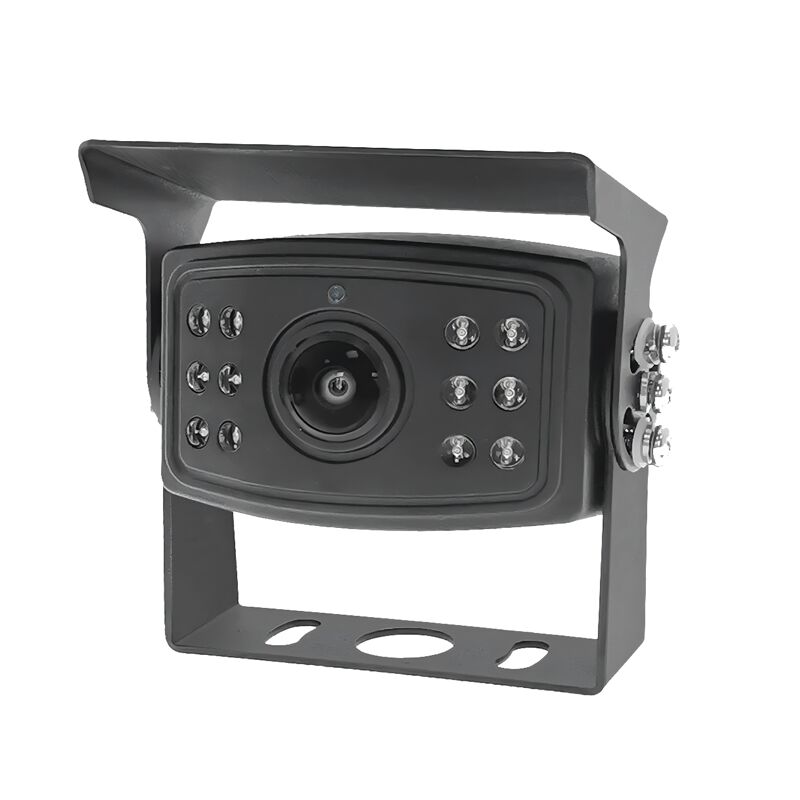

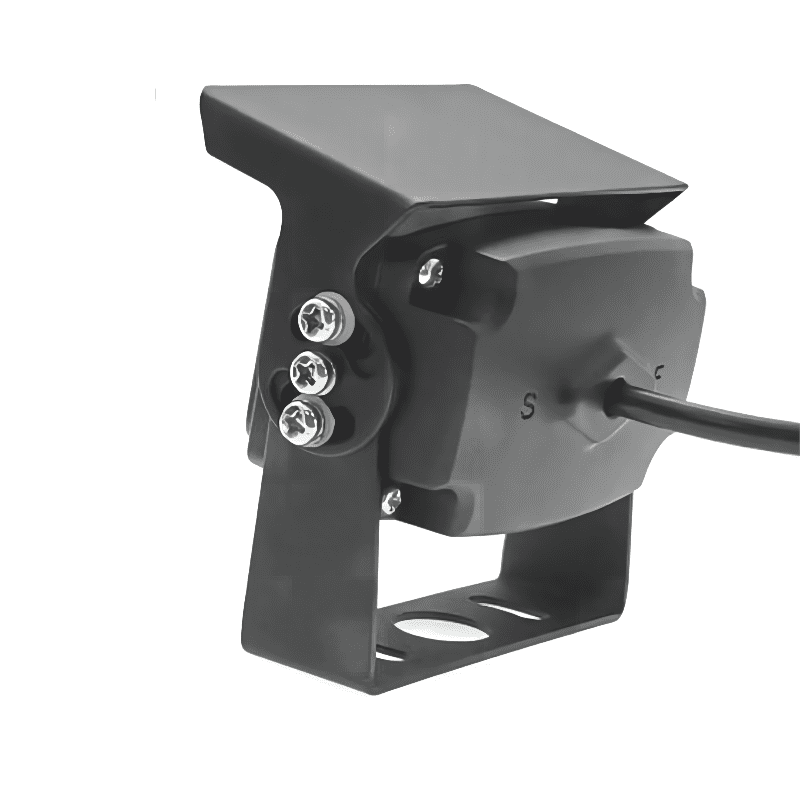

The CA206-HD backup camera boasts 12 advanced infrared illuminators, allowing you to enjoy colorful images during the day as well as clear imagery at night. With the camera’s built-in microphone, you can hear as well as see what’s behind you, also you could easily choose the mirror or no mirror image on the cable.
| Model | CA206-HD |
| Image Sensor | 1/2.9’’ CMOS |
| Resolution | 1080P |
| Effective Pixels | 1920(H)x1080(V) |
| Pixel Size | 1.8×1.8μm |
| Viewing Angle | 135 degrees |
| Waterproof Rating | IP69K |
| Shockproof | 10G |
| Frame Rate | 25/30fps |
| LEDs Lights | 12pc IR LEDs |
| Power Supply | DC9-18V (from reversing monitor) |
| Audio | Support |
| Auto Heating | Support |
| Night Vision Distance | 15m |
| Housing Material | Heavy-duty cast metal |
| Power Consumption | 160mA |
| Unit Weight | 200g |
| Operation Temp | -20℃-70℃， RH95%MAX |
