Description

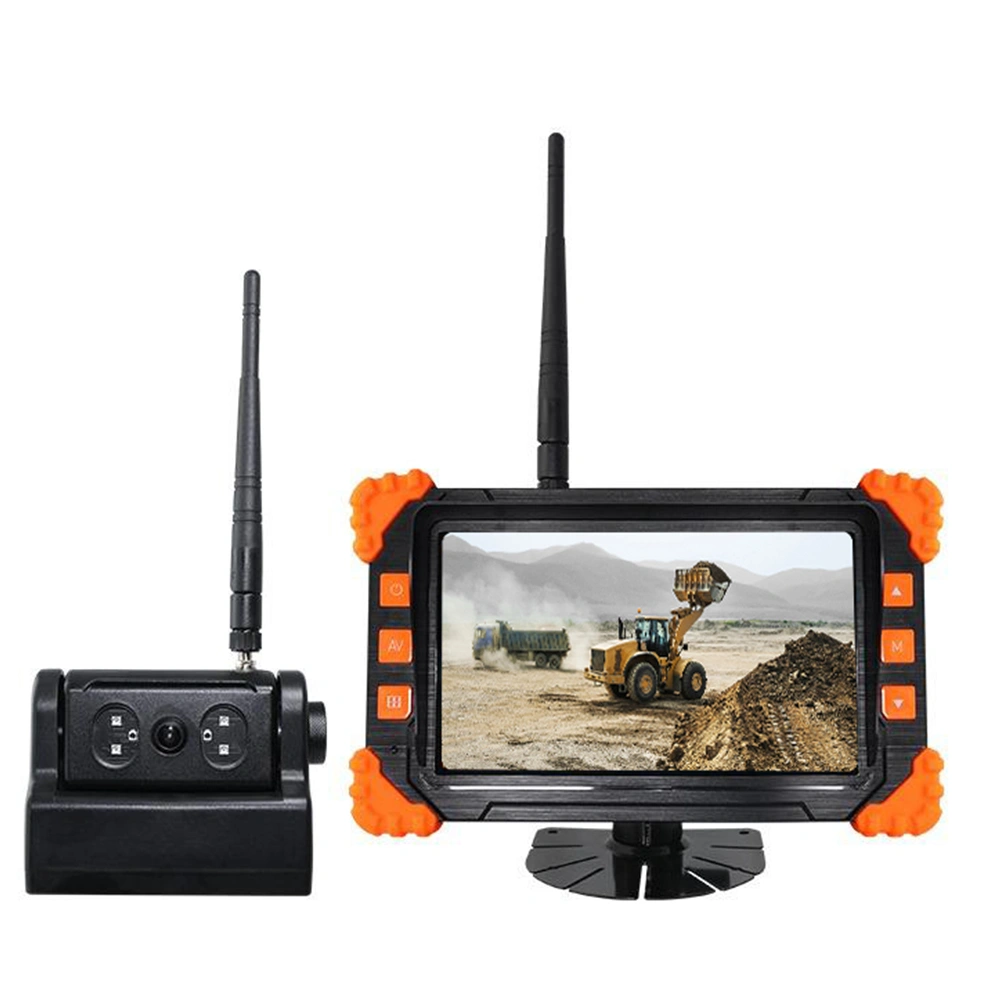

The 983W-HD Set system includes a camera with a magnetic base and a built-in 10,050mAh battery. This design simplifies installation and provides up to 17 hours of continuous operation on a full charge. It’s an excellent choice for RVs, box trucks, trailers, tractors, and semi-trailers.

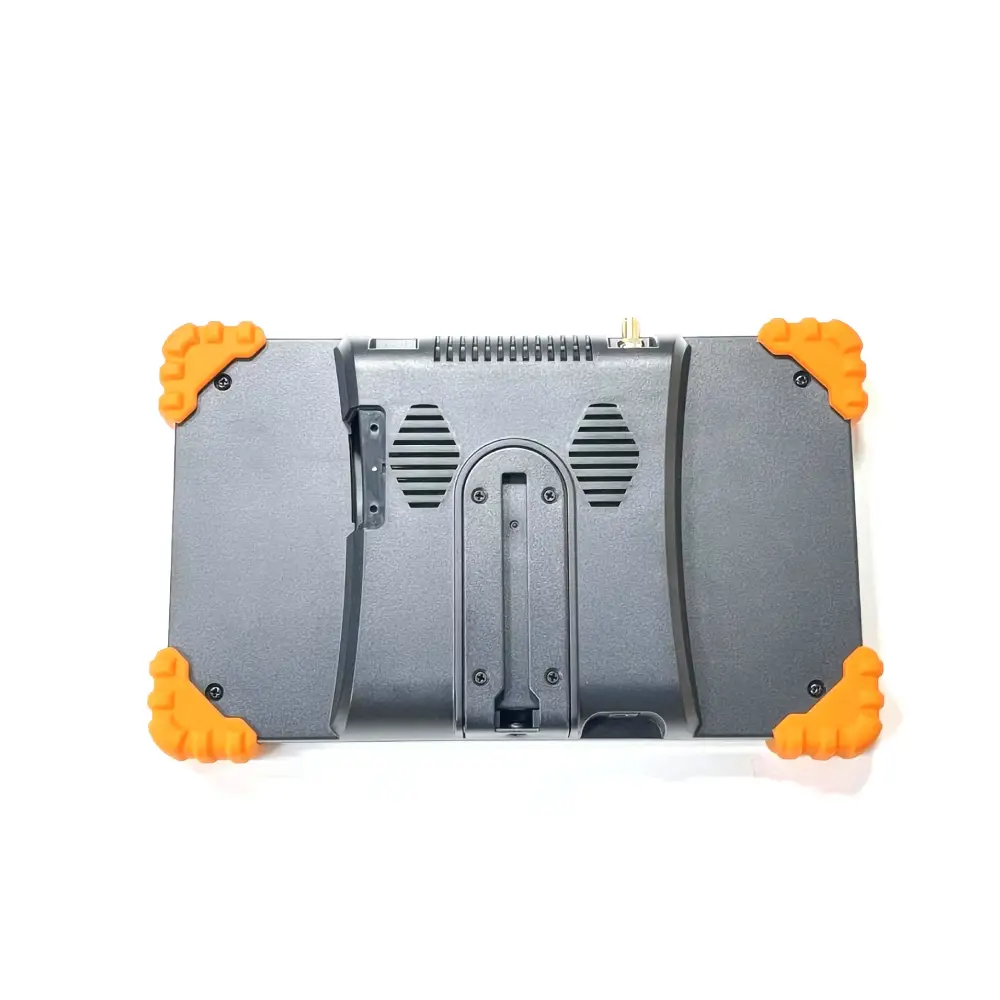

| Wireless Monitor: 703W-HD | |
| Screen Size | 7inch |
| Brightness | 450cd/m² |
| Contrast | 500:1 |
| Resolution | 1024xR.G.Bx600 |
| Working Frequency | 2400-2483.5MHZ |
| Effective Distance | 500 meters in the open field |
| Video Inputs | 4 Channels |
| Recording | 256GB Max |
| Video Format | MP4 |
| TV System | NTSC/PAL (auto switch) |
| Power Supply | DC12V-36V |
| Modulation | 16QAM/QPSK/BPSK |
| Mirror Flip | Non-mirror, mirror, flip, mirror flip |
| Time Delay | 200ms |
| Operation Temp | -20℃~70℃, RH 95%MAX |
| Storage Temp | -40℃~80℃, RH 95%MAX |

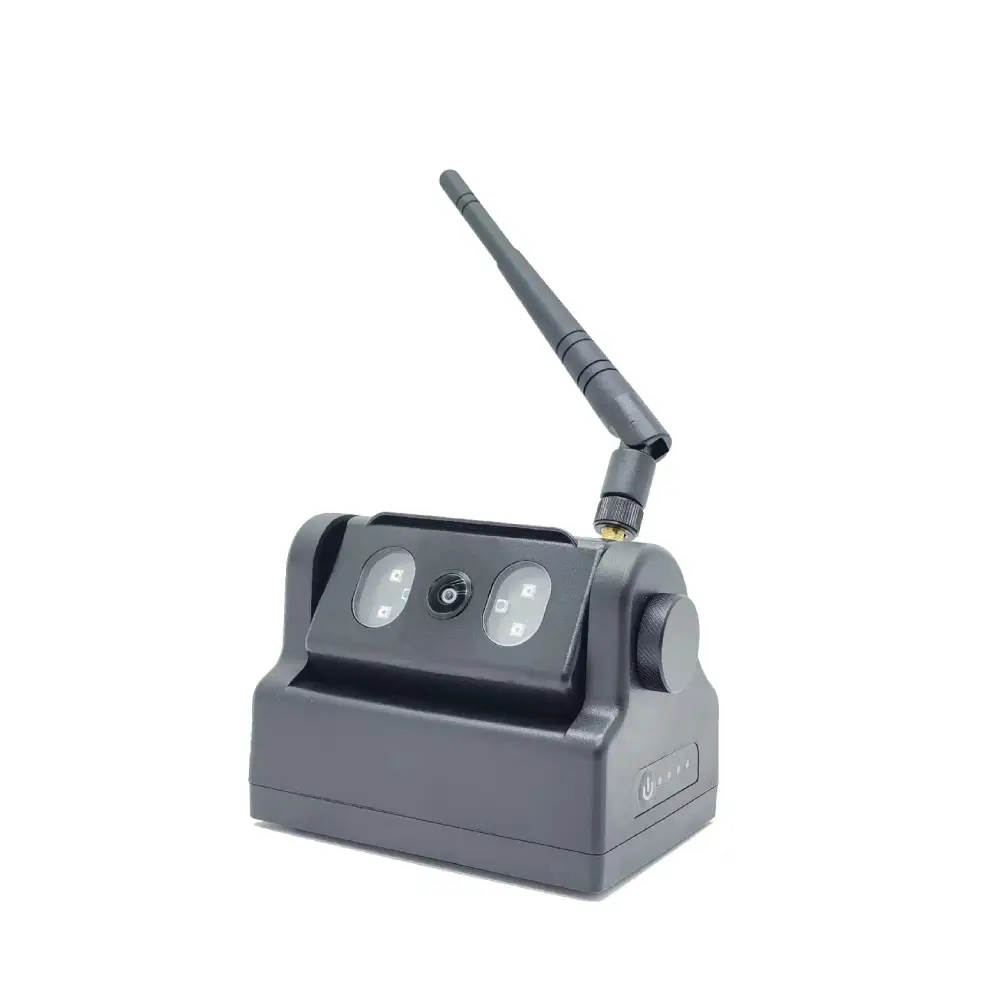

| Wireless Camera: 983W-HD | |
| Image Sensor | 1/2.7” CMOS SC2235 |
| Resolution | 1920×720; 1920×1080 |
| IR Lights | 4pc |
| View Angle | 110 degree |
| Battery Capacity | 3.7V/10050mAh |
| Discharge Time | 16H(IR OFF); 10H (IR ON) |
| Charge Time | 6.5H |
| Delay | 130ms |
| IR Distance | 15m |
| Waterproof | IP69K |
| Power Supply | 12V/2A |
| Operation Temp | -20℃~70℃, RH 95%MAX |
| Storage Temp | -40℃~80℃, RH 95%MAX |
