Does Camera Installation Height and Angle Affect AI Recognition Accuracy?

I once saw a driver complain that his AI alerts failed after a simple retrofit, and it made me realize how easy it is to ignore camera height and angle.

Camera installation height and angle strongly affect AI recognition accuracy, because both factors decide how much the camera sees, how objects appear in the frame, and how the AI interprets distance and shape.

I learned this the hard way when I tested a system that stopped detecting children after the camera shifted only a few centimeters. This pushed me to study how height and angle shape the whole recognition field in real use.

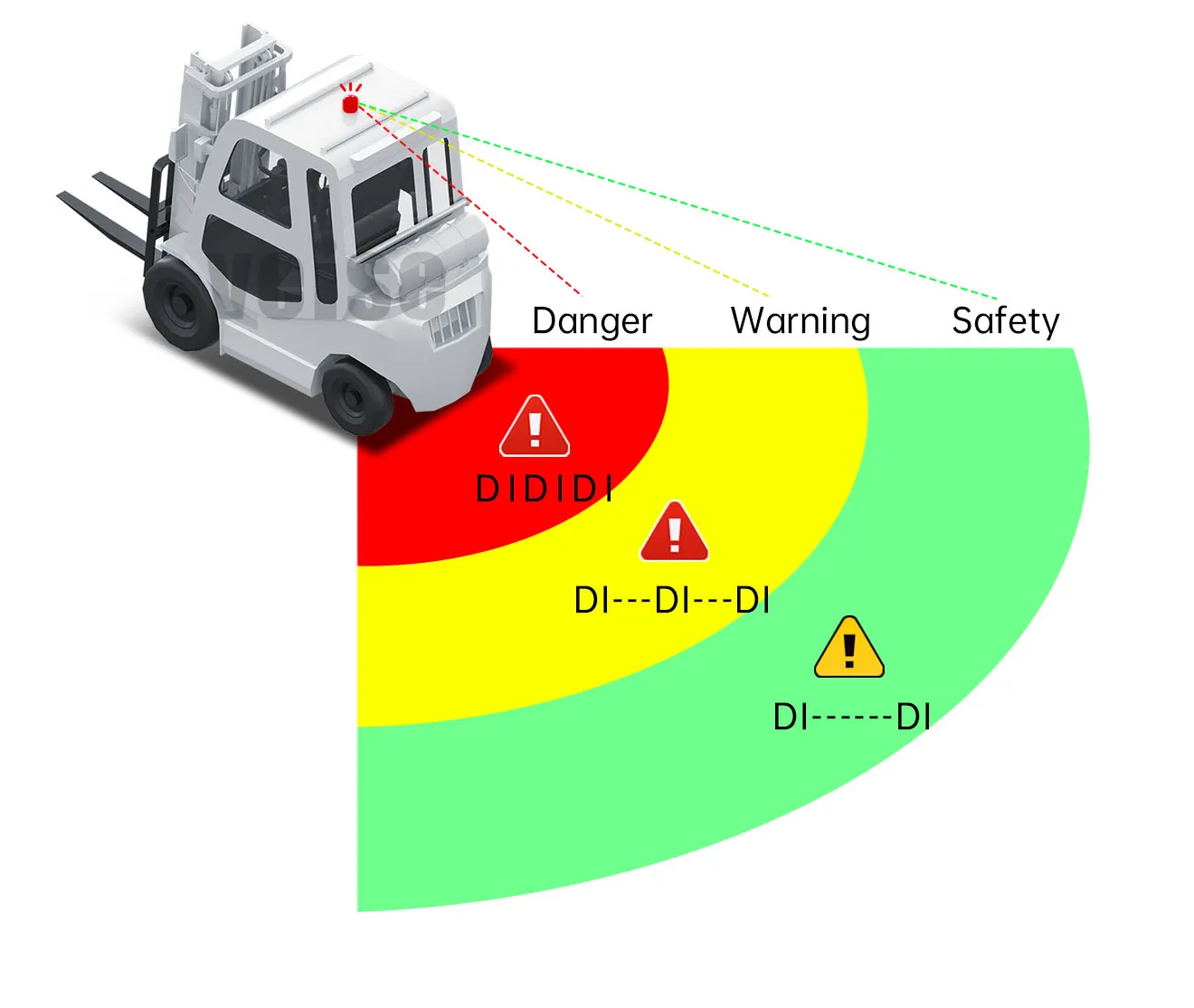

Why Does an Over-High or Over-Low Camera Create AI Blind Zones?

I met many users who believed a higher camera always gives a wider and safer view. I had the same idea until I saw how a tall pickup tailgate produced a large empty zone that the AI could not read.

AI blind zones appear when the camera is installed too high or too low, because the perspective becomes stretched or compressed, which hides obstacles near the bumper or shifts their apparent distance.

I tested this on different vehicles, and I saw how even small height changes create unexpected empty spaces. These spaces become invisible to the AI because the model expects a normal ground-to-horizon ratio. When height breaks this ratio, the AI guesses wrong.

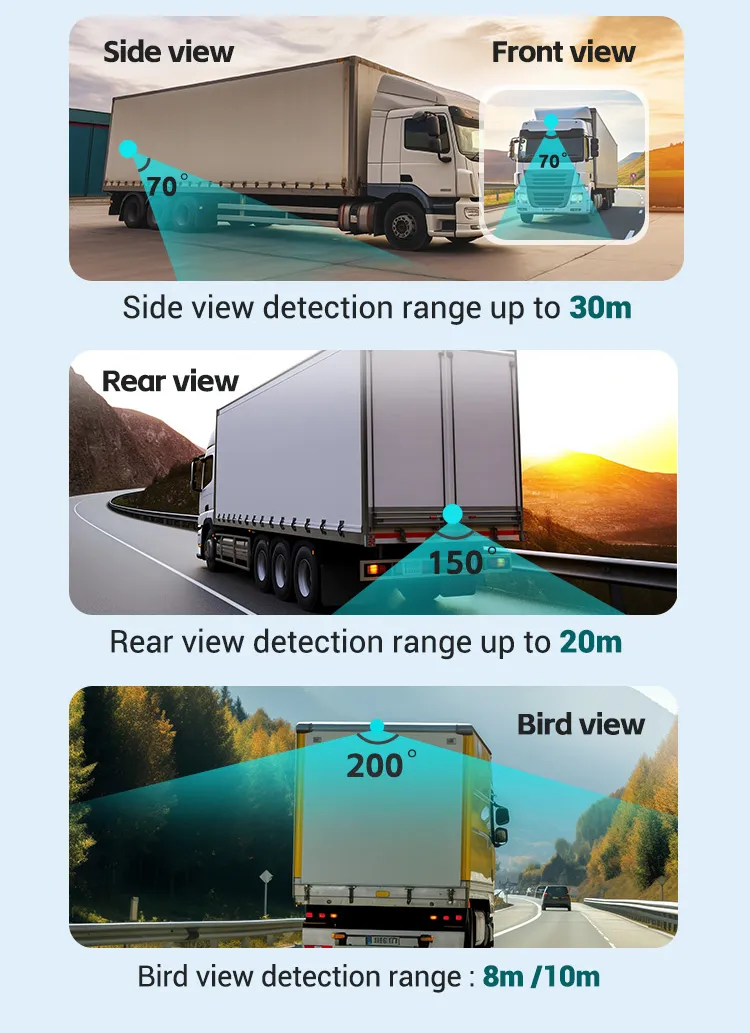

How height affects the detection zone

How I test height in real installations

I place cones at 1 m, 2 m, and 3 m behind the vehicle. If the cones sit too close to the bottom edge or appear stretched, I know the height is wrong. I repeat the test with a person walking near the bumper, because real human movement shows the blind zone more clearly than static objects.

Why Does Camera Angle Deviation Cause Wrong AI Detection Ratios?

Angle problems often appear after retrofits. One customer lifted his truck but kept the same camera bracket. When I checked the footage, the camera aimed too low, and the AI misread distance by almost half.

Wrong AI detection ratios happen when the camera tilts upward or downward, because the lines, shapes, and size of objects shift in the frame, which breaks the AI’s expected geometry.

Even small angle changes create strong distortions. I saw this during a project where the camera angle moved only three degrees, yet the AI completely misjudged a forklift at close range. It showed me how sensitive AI models are to view geometry.

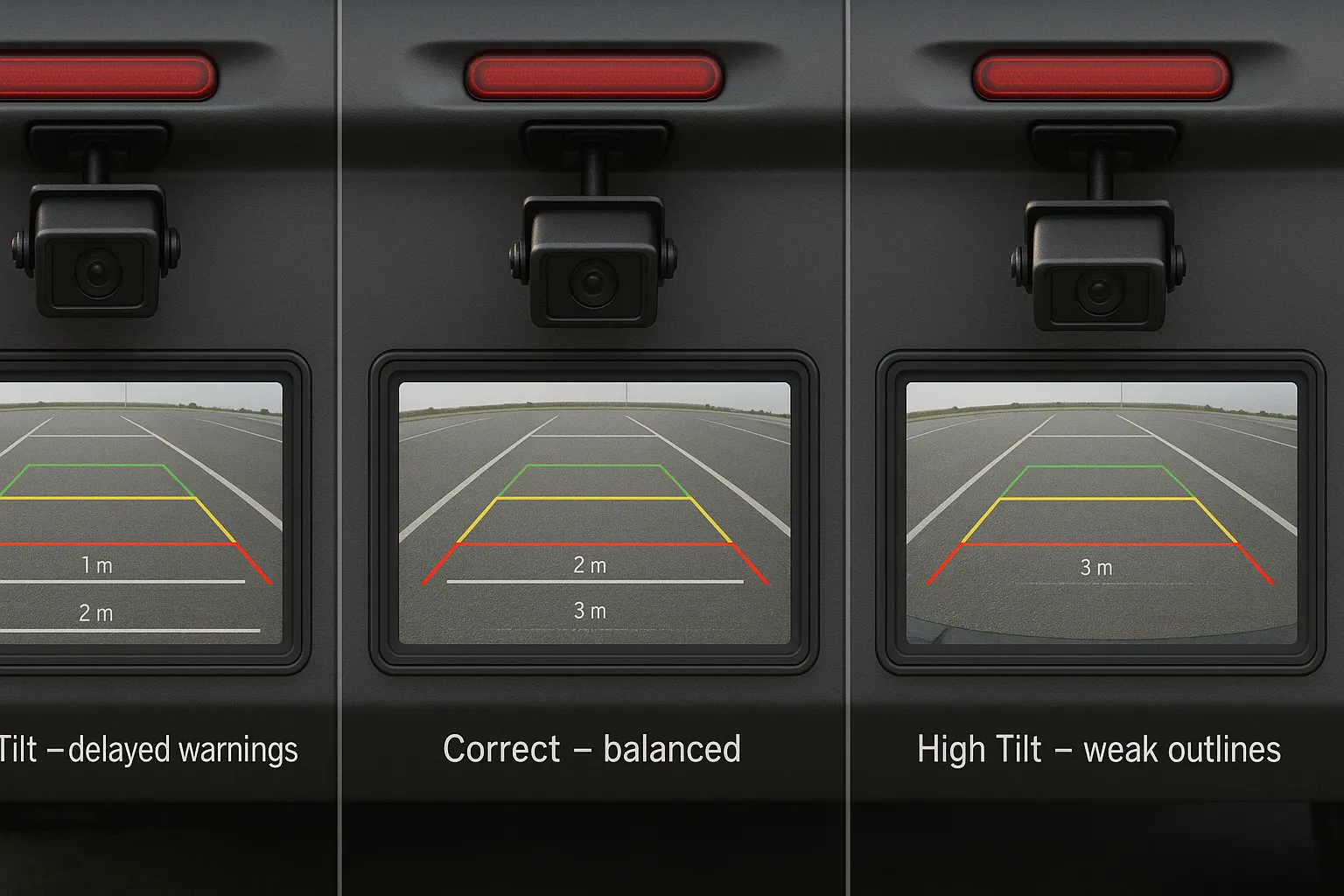

How angle changes the perception map

How I fine-tune the angle on site

I draw chalk lines on the ground at 1 m, 2 m, and 3 m behind the vehicle. Then I adjust the angle until the lines sit in the expected parts of the screen. I test again with a person walking behind the vehicle to see the real reaction time of the AI. This method works on uneven ground too, which often reveals hidden distortions.

What Is the Best Camera Position for Pickups, Trucks, and Container Trucks?

I worked with fleets that mixed pickups, small trucks, and tall container trucks. I found that each vehicle type needs a different installation zone. A good position for a pickup becomes a blind-zone generator for a tall truck.

The best camera position depends on vehicle height, rear overhang, panel structure, and the AI model’s expected angle and distance range.

I compare each vehicle type by looking at how the ground, bumper, and rear door shape the view. This helps me find a balanced position where the AI sees a clean and stable frame without shadows or metal reflections.

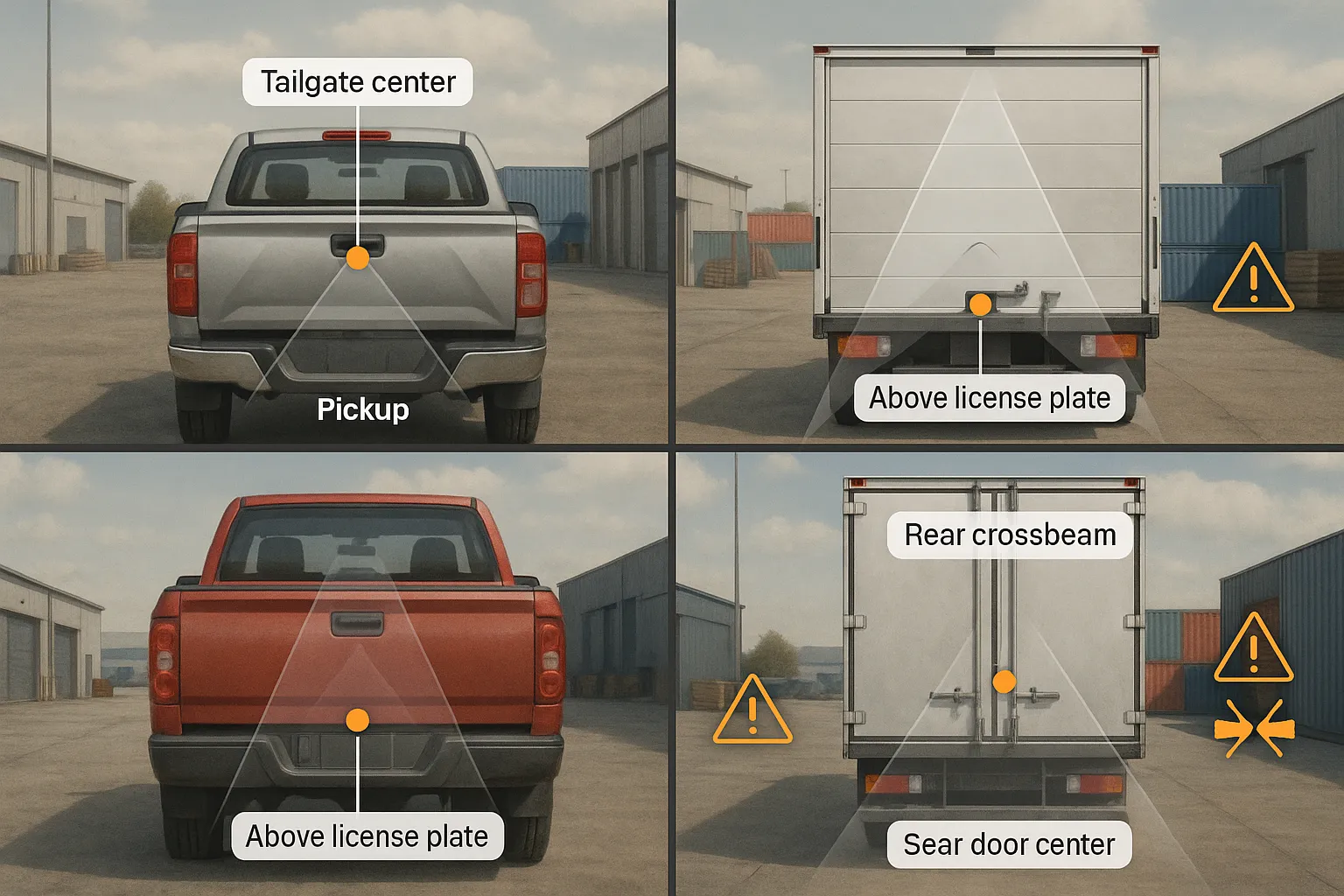

Best positions by vehicle type

How I choose the exact mounting point

I follow three steps. First, I check the ground clearance and how far the rear bumper sits from the ground. Second, I inspect metal areas that may reflect IR or produce shadows. Third, I match the AI detection map with the natural shape of the rear body. Each AI model has a slightly different recognition field, so I always test with walking subjects and moving objects such as pallets or trolleys. This lets me see the true limit of the installation spot in real use.

Conclusie

Camera height and angle decide how well AI can understand the scene. When these two settings are wrong, blind zones appear and detection errors increase. When they are right, the system becomes stable and reliable. Careful setup protects both the driver and the people around the vehicle. If you need guidance or professional installation tips, reach out today and make sure your AI system works perfectly.
