Wireless Crane Camera System with 30x Optical Zoom
A wireless blind spot monitoring solution for cranes, lifting equipment and heavy-duty working environments. Designed to help operators see the hook, load and surrounding work area more clearly.
Wireless Blind Spot Monitoring for Cranes
This wireless crane camera system is designed to help crane operators monitor the hook, load and surrounding blind spot areas more clearly during lifting operations.
The system combines a 10.1-inch wireless waterproof monitor, a 30x optical zoom wireless camera and a zoom control pedal. It helps improve working visibility without complex cable installation between the camera and monitor.
- 10.1-inch wireless waterproof monitor
- 30x optical zoom wireless camera
- Control zoom pedal included
- Up to 300m wireless transmission in open area
- 2.4G wireless transmission
- Suitable for cranes and lifting equipment
Why Crane Operators Need This System
During lifting operations, crane operators may have limited visibility of the hook, load and working area. This wireless crane camera system helps improve visual awareness without complicated long cable installation.
Clearer View of the Hook and Load
The wireless camera helps operators monitor the hook, load and lifting position more clearly from the cab, especially when direct visibility is limited.
Reduced Blind Spot Risks
By displaying the working area on the monitor, the system helps operators better understand blind spot areas around cranes and lifting equipment.
No Long Cable Routing
The 2.4G wireless transmission design reduces the need for long video cables between the camera and monitor, making installation easier for crane applications.
Zoom Control During Operation
With the 30x optical zoom camera and control zoom pedal, operators can zoom in on the hook, load or working area when more detail is needed.
What’s in the Box?
The standard wireless crane camera kit includes the main components needed for crane blind spot monitoring and zoom control.
10.1-inch Wireless Waterproof Monitor
Displays the wireless camera image and supports single / dual screen switching.
30x Optical Zoom Wireless Camera
Helps operators zoom in on the hook, load and working area for better visibility.
Control Zoom Pedal
Allows convenient zoom control during crane operation.
Note: Actual kit contents may vary according to the selected configuration.
Key Features
Built for crane visibility, lifting safety and wireless installation convenience.
10.1-inch Wireless Monitor
Large display for clear viewing of crane hook, load and blind spot areas.
30x Optical Zoom Camera
Zoom in on the hook, lifting point or working area for more accurate monitoring.
Up to 300m Transmission
Wireless transmission distance can reach up to 300 meters in open areas.
Single / Dual Screen
The monitor supports single and dual screen switching according to system configuration.
Recording Support
The monitor supports memory card storage up to 128GB depending on configuration.
Optional 12,000mAh Battery Pack
The camera side can be configured with a portable battery pack, helping reduce wiring work on crane structures.
How the Wireless Crane Camera System Works
The system is designed to provide a simple wireless viewing workflow for crane operators. The camera captures the working area, transmits the video signal wirelessly, and the monitor displays the image inside the cab.
Camera Installed Near the Monitoring Area
The wireless zoom camera can be installed near the crane hook, boom or suitable monitoring position to capture the lifting area.
2.4G Wireless Video Transmission
The camera transmits the video signal wirelessly to the monitor, reducing the need for long cable routing on crane structures.
10.1-inch Monitor in the Cab
The operator can view the camera image on the 10.1-inch wireless monitor and monitor the hook, load and surrounding area.
Zoom Control by Pedal
The control zoom pedal allows the operator to zoom in or out during operation when closer detail is required.
Flexible Power Supply Options
For crane and lifting applications, camera installation positions are often far from the operator cab or fixed power source. This wireless crane camera system can be configured with a portable power supply solution, helping reduce cable routing and making installation more flexible.
The wireless camera can be powered by a suitable DC power source or optional portable battery pack, depending on the installation position and working time requirements. This is especially useful for cranes, mobile lifting equipment and temporary working sites where wiring is difficult.
- Optional portable power supply for camera-side installation
- Helps reduce long power cable routing on crane structures
- Suitable for mobile cranes, truck cranes and temporary work sites
- Flexible configuration according to working time and installation needs

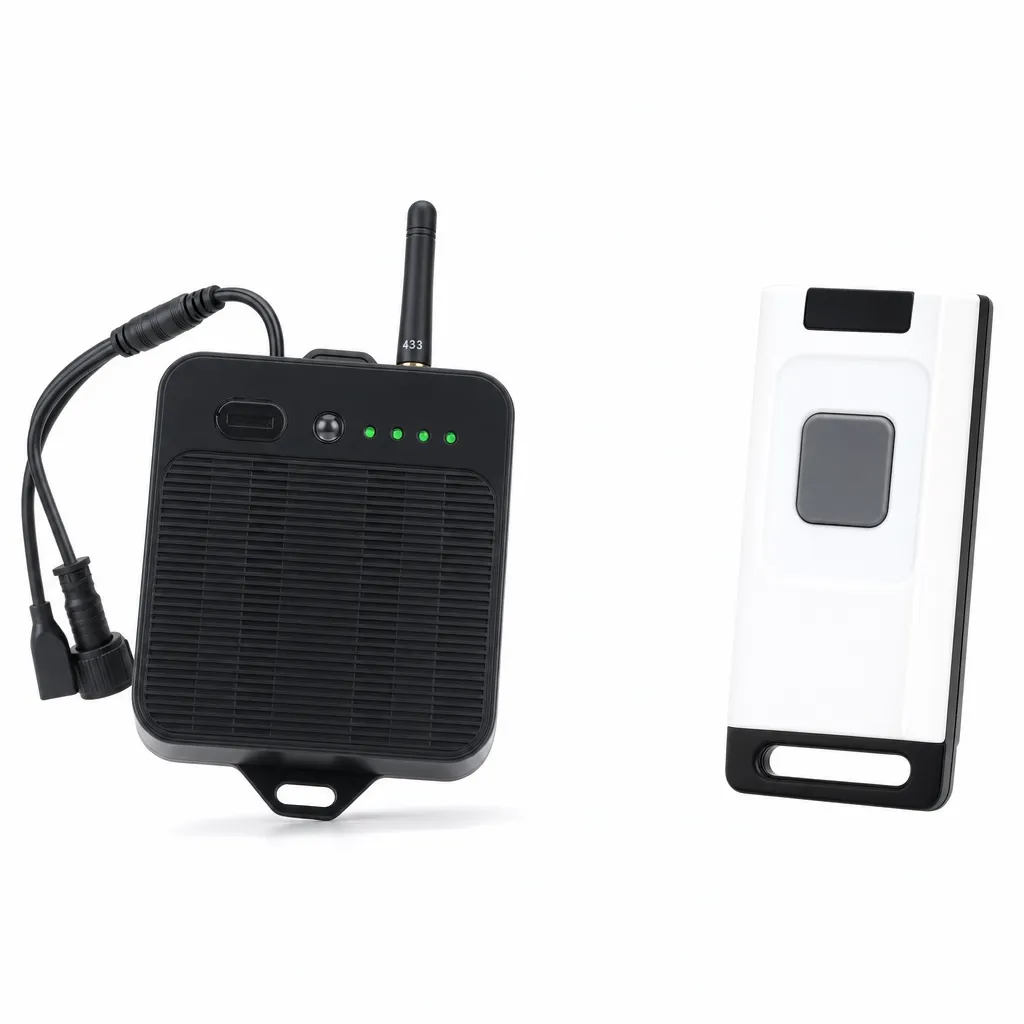

Optional Power Source Portable Battery Pack
Actual operating time depends on battery capacity, system configuration and working environment.
Designed for Crane and Lifting Applications
This wireless camera system is suitable for crane operators who need a clearer view of the hook, load and working area. It helps improve visibility in blind spot areas and supports safer lifting operations.
Wireless Monitor Specifications
The wireless zoom camera is designed for crane monitoring and long-distance visual support in open working environments.
| Working Voltage | DC12V–36V |
|---|---|
| Sensor | IMX307 |
| Lens Size | 1/2.8” |
| Focal Length | 4.7–141mm ±5% |
| Aperture | F1.5–F4.0 |
| Recent Object Distance | 2–3m |
| Ángulo de visión | Horizontal 60° |
| Resolución | 720P |
| Shell Material | Aluminum shell |
| Working Temperature | -20°C to +60°C |
| Temperatura de almacenamiento | -40°C to +85°C |
| Waterproof Rating | IP67 |
| Wireless Transmission | Built-in 2.4G wireless transmitter |
| Frequency Range | 2.412GHz–2.4835GHz |
| Transmission Power | 24dBm ±1dBm |
| Transmission Distance | Open space ≤300m |
| Size | 88.5 × 83.5 × 160mm ±0.5 |
Wireless Camera Specifications
The wireless zoom camera is designed for crane monitoring and long-distance visual support in open working environments.
| Working Voltage | DC12V–36V |
|---|---|
| Sensor | IMX307 |
| Lens Size | 1/2.8” |
| Focal Length | 4.7–141mm ±5% |
| Aperture | F1.5–F4.0 |
| Recent Object Distance | 2–3m |
| Ángulo de visión | Horizontal 60° |
| Resolución | 720P |
| Shell Material | Aluminum shell |
| Working Temperature | -20°C to +60°C |
| Temperatura de almacenamiento | -40°C to +85°C |
| Waterproof Rating | IP67 |
| Wireless Transmission | Built-in 2.4G wireless transmitter |
| Frequency Range | 2.412GHz–2.4835GHz |
| Transmission Power | 24dBm ±1dBm |
| Transmission Distance | Open space ≤300m |
| Size | 88.5 × 83.5 × 160mm ±0.5 |
Product Dimensions
Dimension drawings are provided for installation reference. Please confirm the final installation space according to the actual vehicle or crane structure.

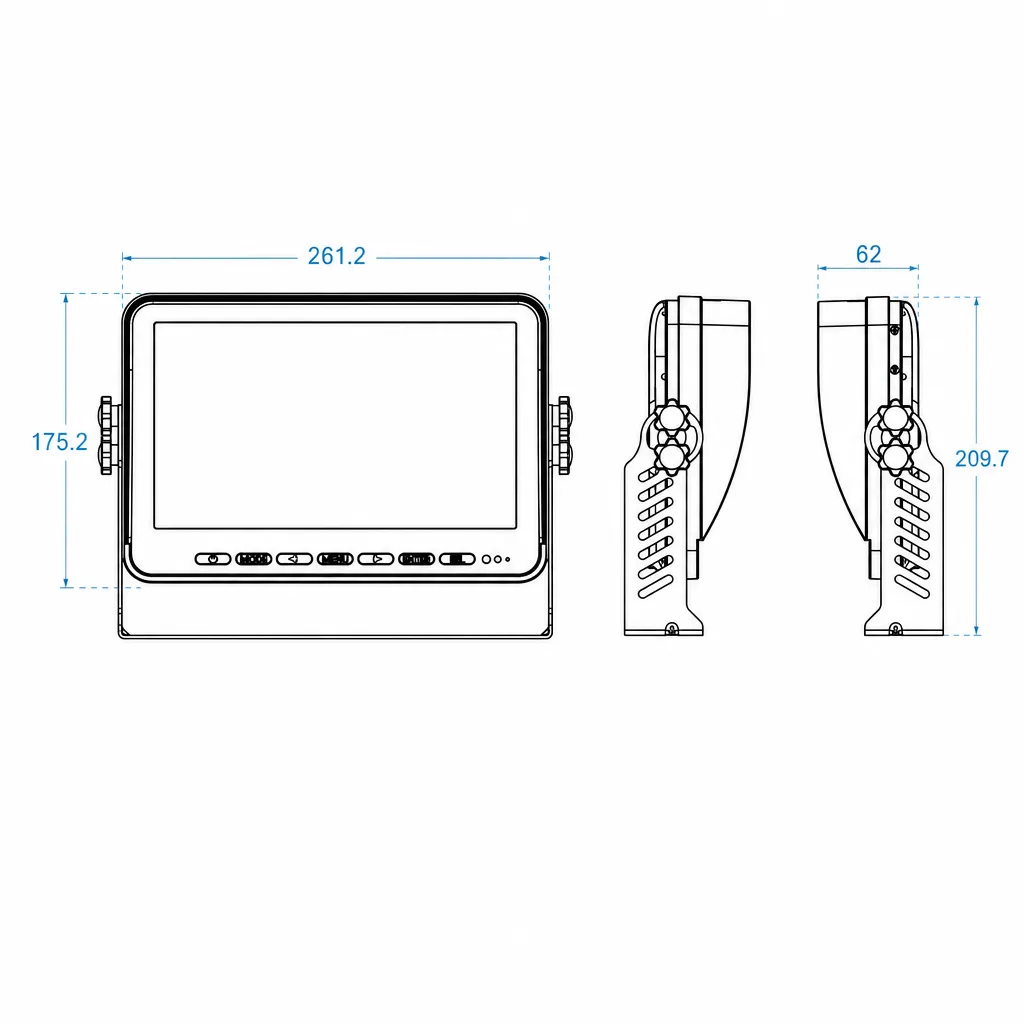

10.1-inch Wireless Monitor

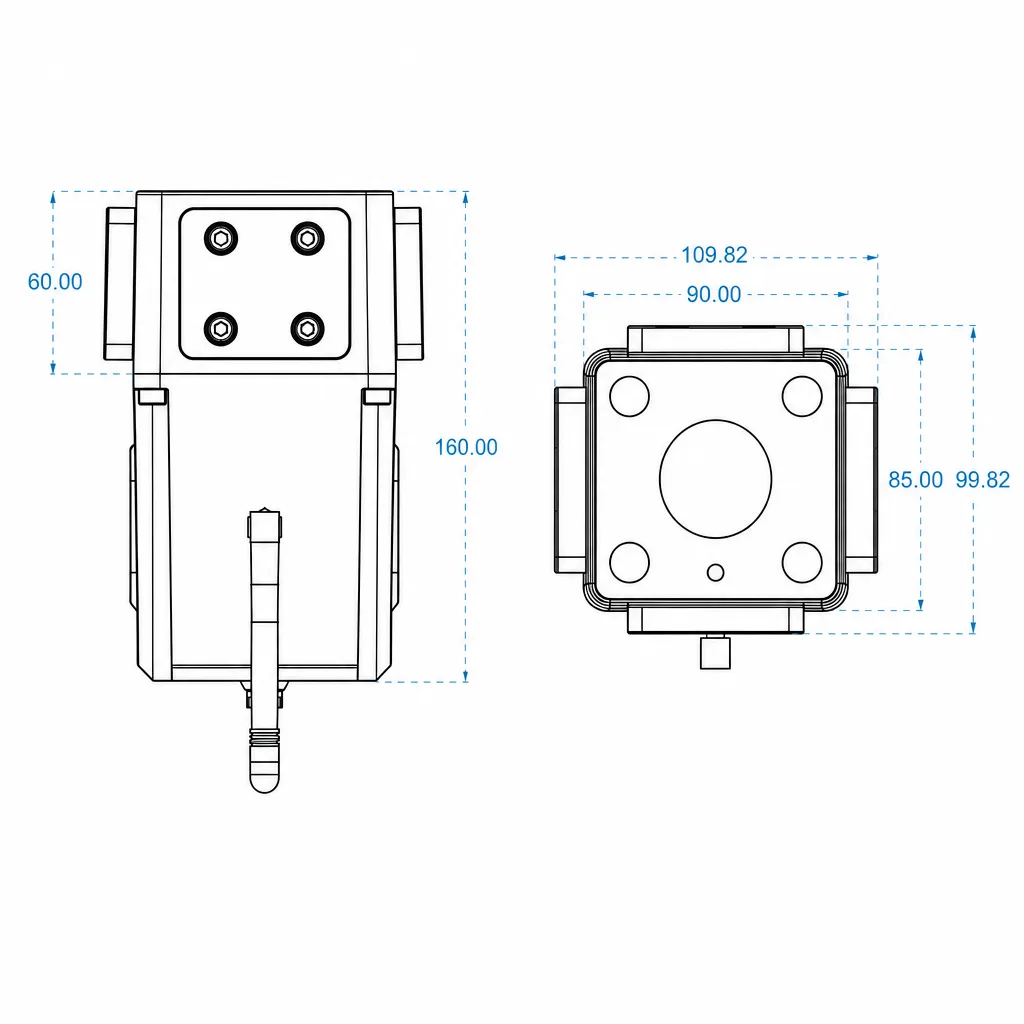

30x Optical Zoom Wireless Camera
Download User Manual
Download the wireless crane camera system user manual for installation reference, product dimensions, kit components and technical specifications.
Preguntas frecuentes
Common questions about the wireless crane camera system.
What is the wireless transmission distance?
The wireless transmission distance can reach up to 300 meters in open areas, depending on the actual working environment.
Can the camera zoom in on the hook or load?
Yes. The wireless camera supports 30x optical zoom, helping operators view the hook, load and working area more clearly.
Does the system require cable installation between the camera and monitor?
No. The system uses 2.4G wireless transmission, reducing the need for long cable routing between the camera and monitor.
What is included in the standard kit?
The standard kit includes a 10.1-inch wireless waterproof monitor, a 30x optical zoom wireless camera and a control zoom pedal.
Can the monitor support recording?
Yes. The monitor supports a memory card up to 128GB depending on the selected configuration.
What types of cranes is this system suitable for?
It is suitable for truck cranes, mobile cranes, tower cranes, gantry cranes, port cranes and other lifting equipment.
How is the wireless camera powered?
The wireless camera can be powered by a suitable DC power source or an optional 12,000mAh portable battery pack. The final power supply configuration depends on the installation position, working time and project requirements.
Need a Wireless Camera System for Crane Safety?
Send us your crane type, installation position and required viewing distance. Our team will help recommend a suitable wireless crane camera configuration for your application.
