Ready to Install Your Own Backup Camera in Under an Hour?

Worried about dangerous blind spots behind your car? The thought of a complex and costly installation can be just as scary. But what if you could do it yourself, quickly and easily?

Yes, you can absolutely install a backup camera in under an hour. The key is having the right tools ready, a clear plan for connecting the wires, and a simple technique to angle the camera perfectly for a safe, complete view of what's behind you.

I remember the first time I decided to install a backup camera myself. I looked at the box of wires and the camera, and honestly, I felt a little overwhelmed. I thought about the cost of professional installation and the hassle of leaving my car at a shop all day. That's what pushed me to try. I’m so glad I did. It was much more straightforward than I imagined, and the feeling of accomplishment, not to mention the new level of safety, was incredible. I'm here to walk you through the exact same process, so you can feel that same confidence and make your driving safer. Let's get started.

What Tools and Parts Do You Actually Need for Installation?

Starting a project only to realize you're missing a key tool is frustrating. It can stop you in your tracks and turn a simple job into a whole-day affair. Let's make sure that doesn't happen by getting everything you need together right now.

Before you begin, make sure your kit is complete and you have some basic hand tools. You'll typically need a screwdriver set, wire strippers, electrical tape, and maybe a drill. Your camera kit should contain the camera, monitor, power harness, and a long video cable.

Let's break down exactly what you should have on hand. Getting organized first is the secret to a fast and successful installation. I always lay my tools out on a towel next to my work area so everything is within reach. This simple step saves a lot of time and prevents you from scratching your car's paint.

Your Essential Toolkit

First, let's look at the tools you likely already have. You don't need a professional mechanic's garage for this.

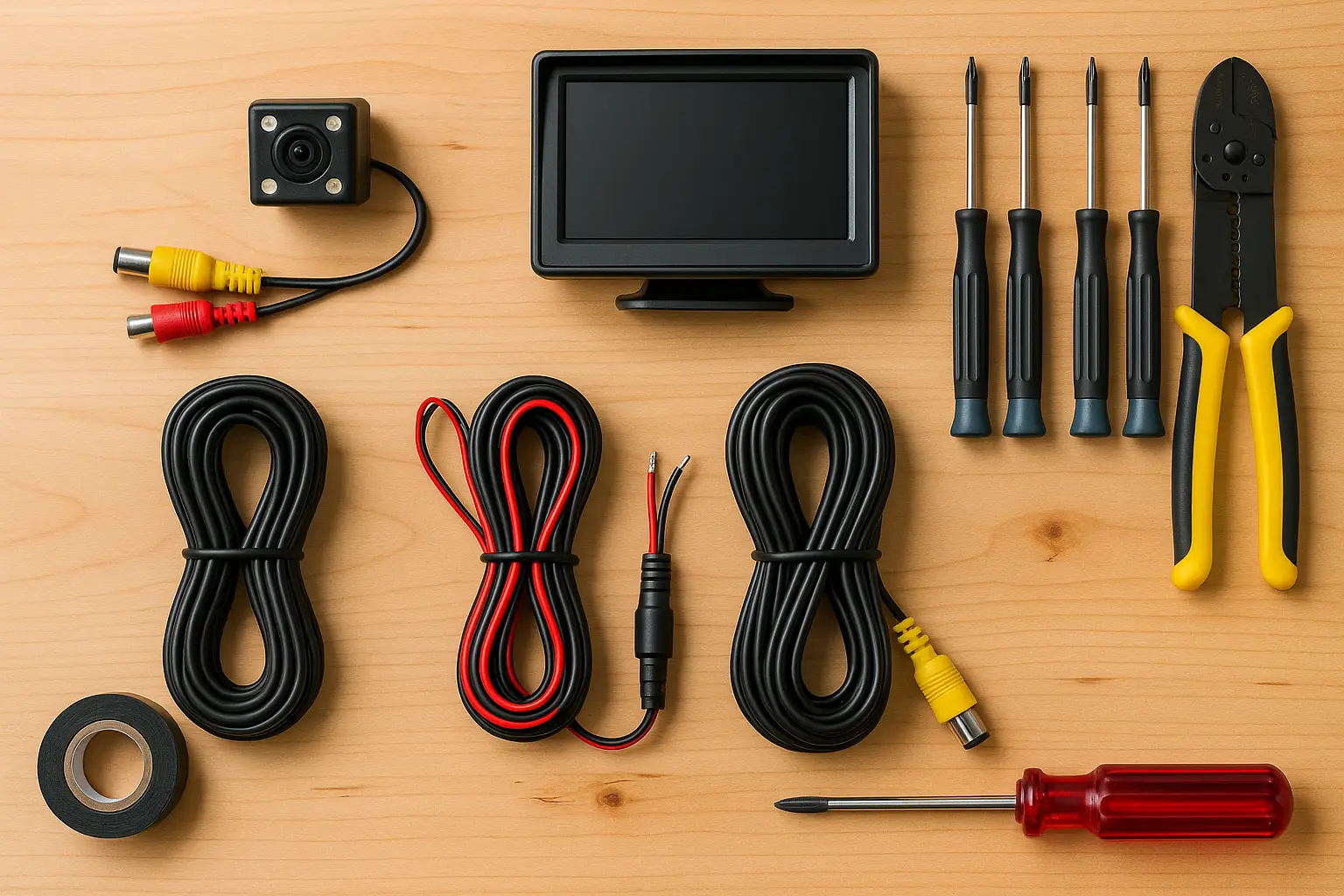

Unboxing Your VST Tech Camera Kit

Now, open your backup camera box. It feels a bit like Christmas, doesn't it? Inside, you should find everything you need to get the system working. You should see the main camera unit, which is small and weatherproof. You'll also have the display monitor, a power cable (which often splits to power both the camera and monitor), and one very long video cable that connects the two. Lastly, there will be mounting hardware like screws or strong adhesive tape.

The Most Important First Step: Test Everything

Before you run a single wire through your car, test the system. I learned this lesson the hard way once. I spent an hour routing a cable perfectly, only to find out the camera was faulty from the factory. To test it, simply connect the camera and monitor using the provided cables. You can temporarily power it using your car's 12V cigarette lighter outlet. If you see a clear picture on the screen, you are good to go. This five-minute check can save you hours of frustration.

How Do You Wire a Backup Camera for Power and Video?

The idea of messing with your car's electrical system can sound scary. You might worry about making a mistake and causing a short or blowing a fuse. But the wiring for a backup camera is surprisingly simple. We will tap into just one circuit: the reverse lights.

The process is straightforward. You connect the camera's power wire to your vehicle's reverse light power source. This is the magic step that makes it turn on automatically when you shift into reverse. After that, you just need to run the video cable from the camera to the monitor.

This is the part that seems most technical, but I promise, it's very logical. The goal is to make the camera "smart" so it only turns on when you need it. Tapping into the reverse lights is the most efficient way to do this. Let’s go through each connection one step at a time.

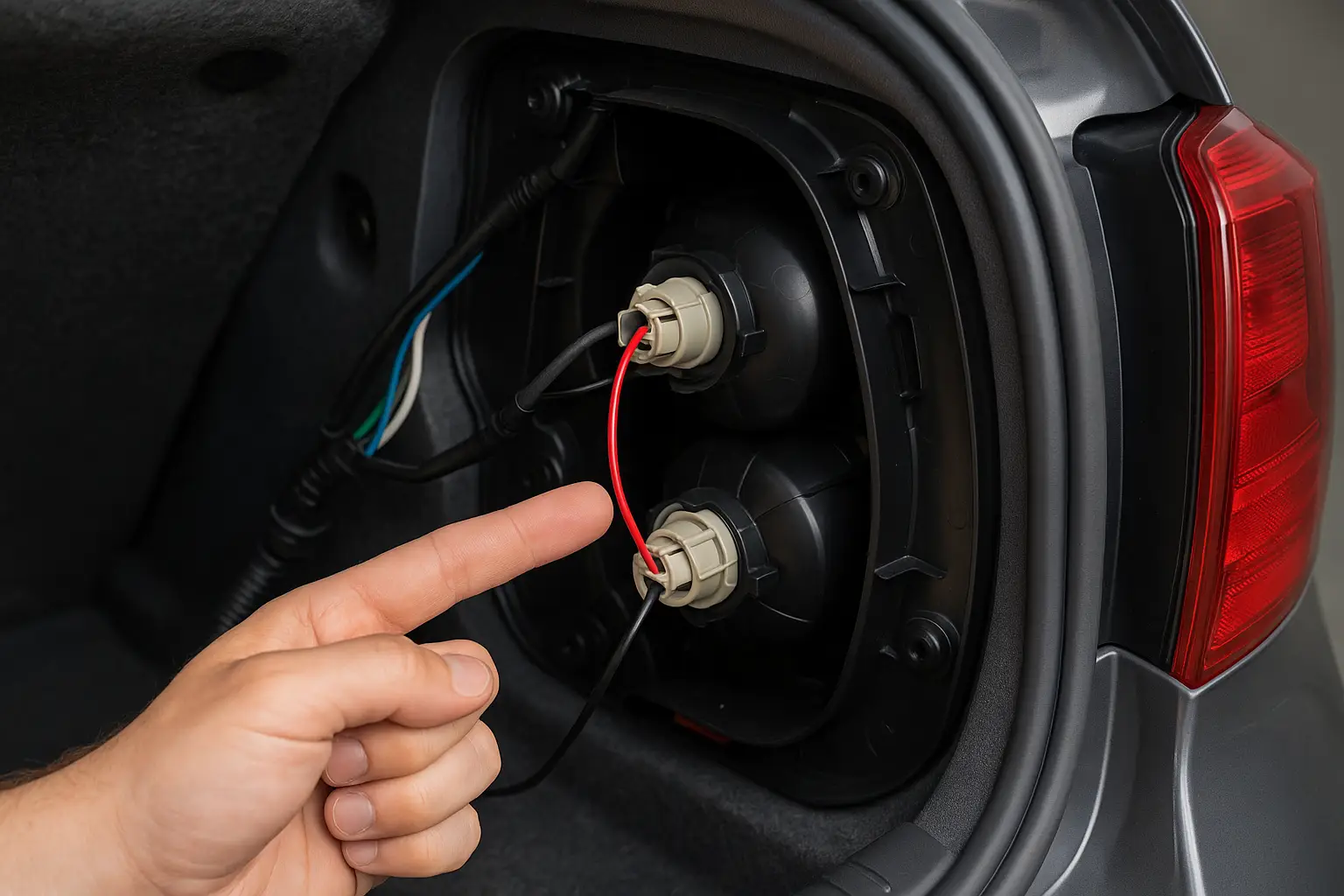

Finding and Tapping the Reverse Light Wire

First, you need to access your car's tail light assembly. This usually involves opening the trunk and removing a plastic panel or a few screws. Once you can see the back of the light fixture, identify the bulb for the reverse light. It's the one that shines a white light. There will be two wires leading to it: one positive (+) and one negative (-). The negative is usually black. To find the positive wire, you can use a multimeter. Put your car in reverse (with the engine off but the key in the "on" position) and touch the multimeter probes to the wires. The one that reads 12V is your target. Use a T-tap connector or carefully strip a small section of the wire's insulation, wrap the camera's positive wire around it, and secure it firmly with electrical tape. Connect the camera's negative wire to the negative light wire or a metal ground point on the car's chassis.

Routing the Video Cable Cleanly

Now for the long run. The video cable needs to travel from the back of your car to the dashboard. My advice is to take your time and hide it for a clean, professional look. Start at the camera and find a path from the trunk into the car's cabin. Often, there's a rubber grommet you can pass the wire through. From there, you can tuck the wire under the interior plastic trim panels that run along the floor. These panels usually pop off with a bit of gentle pressure. Run the cable all the way to the front, under the dashboard, and up to where you plan to mount your monitor. Using zip ties along the way helps keep everything tidy and prevents rattles.

Connecting and Powering the Monitor

The final connection is the easiest. Most monitors that come with DIY kits are designed for simplicity. They typically have two connections: one for the video cable you just ran, and one for power. The simplest power source is the 12V cigarette lighter outlet in your car. Just plug it in. For a more permanent installation, you can hardwire the monitor to your car's fuse box using an "add-a-circuit" fuse tap. This is a bit more advanced but hides the power wire completely. Once it's all connected, mount the monitor on your dashboard or windshield where it's easy to see but doesn't block your view of the road.

What's the Best Way to Mount and Angle Your Backup Camera?

You’ve done the hard work of wiring, but the job isn't finished. If the camera is aimed poorly, it can give you a false sense of security. A view that’s too high or too low is almost as bad as no camera at all. Let's make sure your new camera gives you the perfect view for maximum safety.

The best practice is to mount the camera in the center of your vehicle, usually right above the license plate. Then, angle it downwards so that the very bottom edge of your bumper is visible at the bottom of the screen. This ensures you have no blind spot directly behind you.

Getting the angle just right is what makes a backup camera a truly effective safety tool. It transforms it from a simple video feed into a precise instrument for reversing and parking. I always spend a few extra minutes on this step, and I suggest you do too. It’s worth it.

Choosing the Best Mounting Location

Most backup cameras are designed to be mounted above the license plate. This location is ideal because it's centered and provides a natural vantage point. Many kits come with a bracket that uses the same screws as your license plate, making it a no-drill solution. Another popular type is a "lip mount" camera, which is a small camera that you mount on the lip above the license plate area. This often requires drilling a small hole to run the wire, but it results in a very clean, factory-like look. Whichever you choose, make sure the camera is mounted securely and won't vibrate or move around while you are driving.

The Perfect Angling Technique

Here is my simple, two-person technique for getting the perfect angle. Have a friend stand directly behind the car, about 2-3 feet back. With the car in reverse and the camera's view on your monitor, adjust the camera up or down. You want to angle it so you can see your friend's feet, but also have a good view of the area further behind them. The most critical part is making sure the edge of your own bumper is just visible at the bottom of the screen. This confirms you are seeing the area immediately behind you, which is the biggest blind spot. Once you find that perfect angle, tighten the camera's mounting screws so it stays in place.

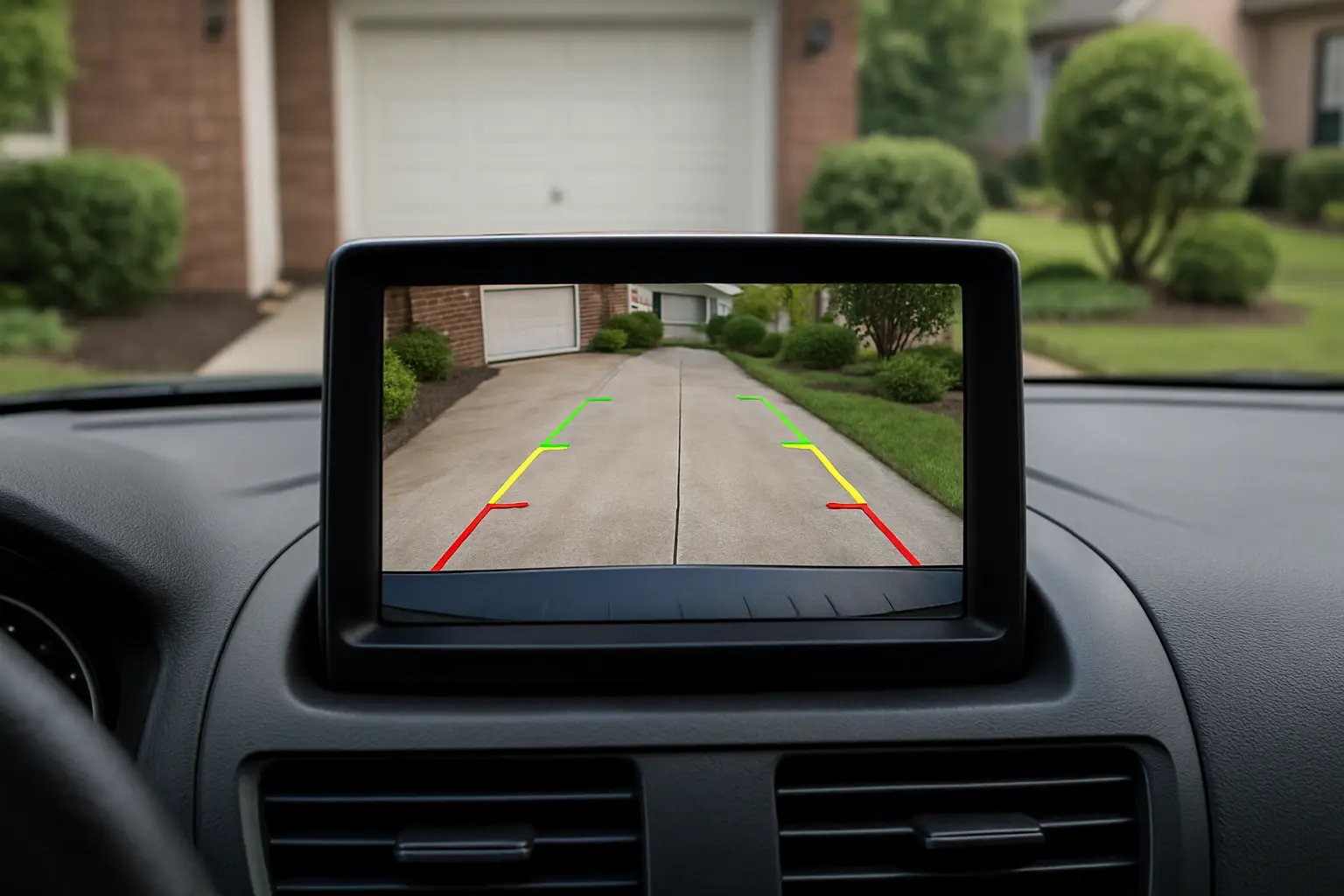

Calibrating Your On-Screen Parking Guidelines

Those colored lines on the screen are more than just decoration; they are distance guides. You can calibrate them with your camera's angle. The green zone is for a clear path, yellow is a warning to be cautious, and red means stop. To check their accuracy, place an object, like a bright cone or a small box, about three feet behind your bumper. Adjust your camera angle until the red line on your screen is roughly aligned with that object. This simple calibration gives you a much better real-world sense of distance when you are backing up, making parking in tight spots much easier and safer.

Schlussfolgerung

Installing your own backup camera is a powerful way to take control of your vehicle's safety. As we've seen, it's a manageable project that you can complete in under an hour by following a few logical steps: preparing your tools, carefully tapping into the reverse light for power, neatly routing the video cable, and, most importantly, precisely angling the camera for a perfect view. It's about more than just adding a new gadget to your car.
