Beschreibung

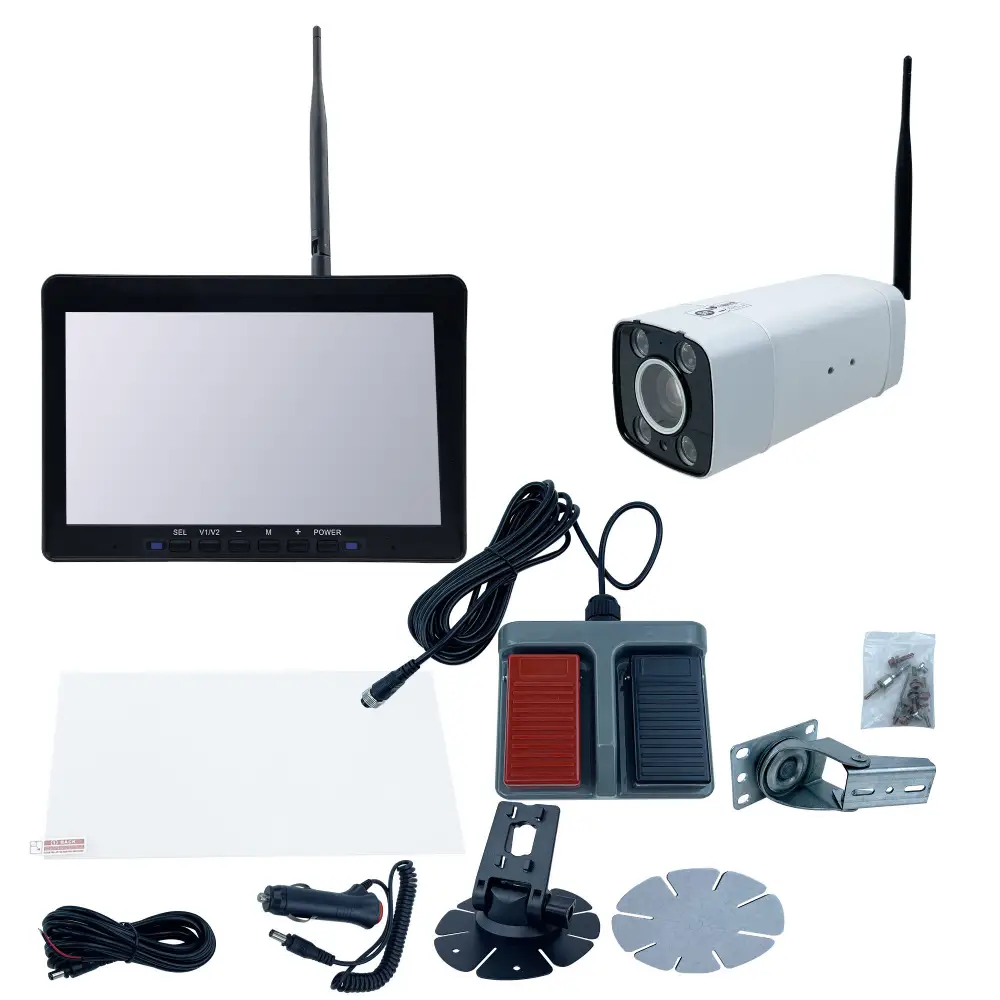

10.1inch 1080P zoom wireless camera system, equipped with a powerful 30x optical zoom and advanced digital anti-shake technology. Designed to be mounted on crane tops or hooks, this camera offers operators a clear, uninterrupted view of the hook and the area below, significantly enhancing safety and precision in lifting operations. By providing real-time, high-definition visuals, it allows operators to swiftly identify and respond to potential hazards, such as unbalanced loads or impending collisions. This innovative system not only prevents blind lifts but also minimizes the risk of accidents, ensuring a safer and more efficient work environment.
| Wireless Monitor | 1010W-HD |
| Size | 10.1 inch |
| Video Inputs | 4 Channels |
| Ratio | 16:9 |
| Auflösung | 1024*RGB*600 |
| Helligkeit | 450 cd/m2 |
| Kontrast | 1000:1 |
| Display Mode | 1 to 1, 1 to 2, 1 to 4 (for optional) |
| Power Supply | DC10 ~ 32V |

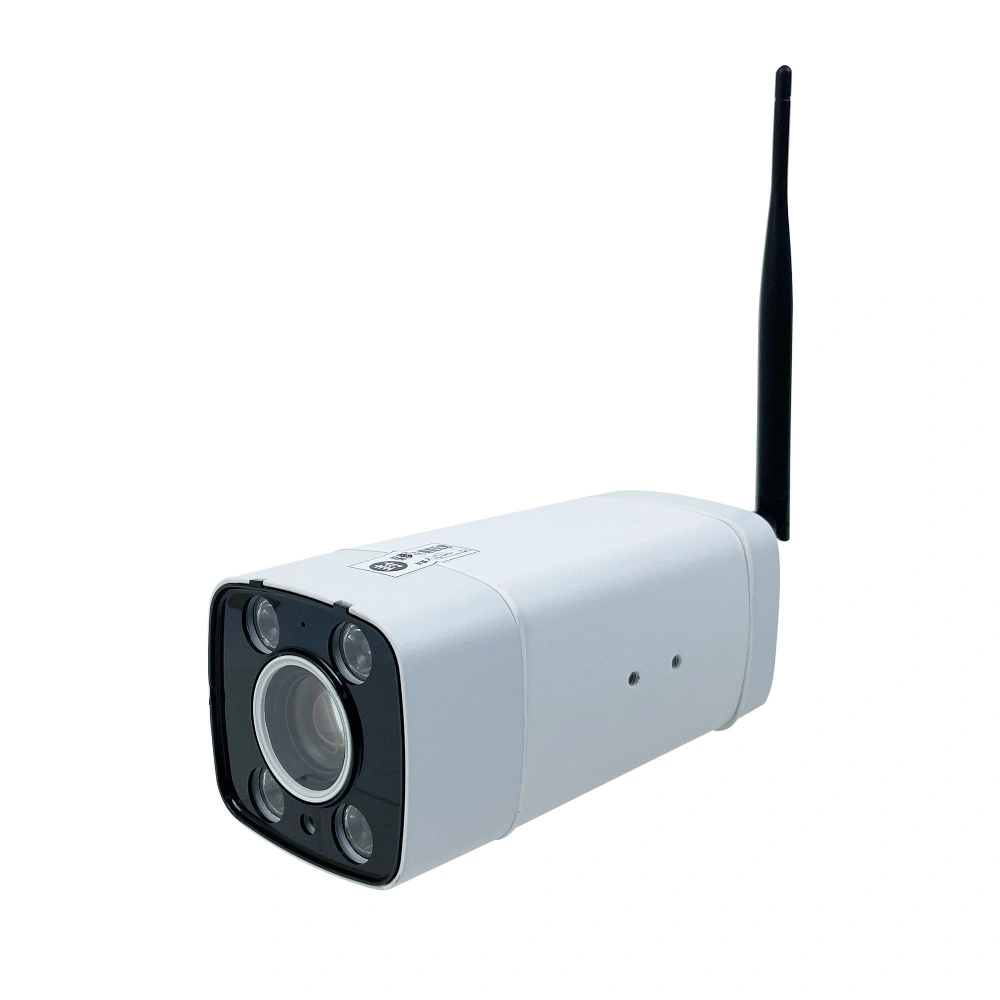

| Wireless Camera | 987W-HD |
| Sensor | 1/2.9” CMOS SENSOR |
| Wireless Transmission | built-in 2.4G wireless transmitter |
| Transmitting Power | 20dBm |
| Transmission Distance | 200-300m |
| Operating Frequency | 2400 ~ 2483.5MHZ |
| Auflösung | 1080P |
| Effektive Pixel | 1920(H) X1080(V) |
| Optical Zoom | 30X |
| Focal Length | 4.85 ~ 138.66mm |
| Aperture Value | 1.65(W) ~ 4.70(T) |
| Horizontal Angle | 57.69°(W) ~ 2.2°(T) |
| Visible Distance | 5-200m |
| Focalization Mode | Auto focus |
| Day/Night Mode | IR-CUT auto switch |
| IR Distance | 50m |
| Waterproof Rating | IP69K |
| Power Supply | DC10 ~ 32V |
| Operating Temperature | -20℃ ~ +60℃ |
| Anti-Vibration | 5G ( GB-T2423056-2006 standard） |
| Dimension | 220(W) x 110(H) x 106(D) mm |
