Are You Ready for a Complete Guide to 4-Channel 360 Camera Systems?

Driving a large vehicle feels like you're constantly guessing what's in your blind spots. Every tight parking spot is a challenge, and you worry about low posts or curbs you just can't see.

A 4-channel 360 camera system, also known as a bird's-eye view or surround-view system[^1], uses four fish-eye cameras to generate a seamless, real-time, top-down view of your vehicle. It stitches these video feeds together to completely eliminate blind spots, making parking and maneuvering much safer.

Getting into the world of 360 cameras can feel like a deep dive into technical jargon. I remember feeling overwhelmed. It's not just about getting a camera; it's about understanding how it creates that magical view and what separates a great system from a mediocre one. My goal here is to be the guide I wish I had. We'll break down the technology, the features that actually matter, and the real costs involved, so you can make a choice with confidence.

How Do Four Cameras Create a Single 360-Degree View?

Does it seem like magic how four separate camera views merge into one perfect picture? It’s a clever process, but it's technology, not magic. Let's pull back the curtain.

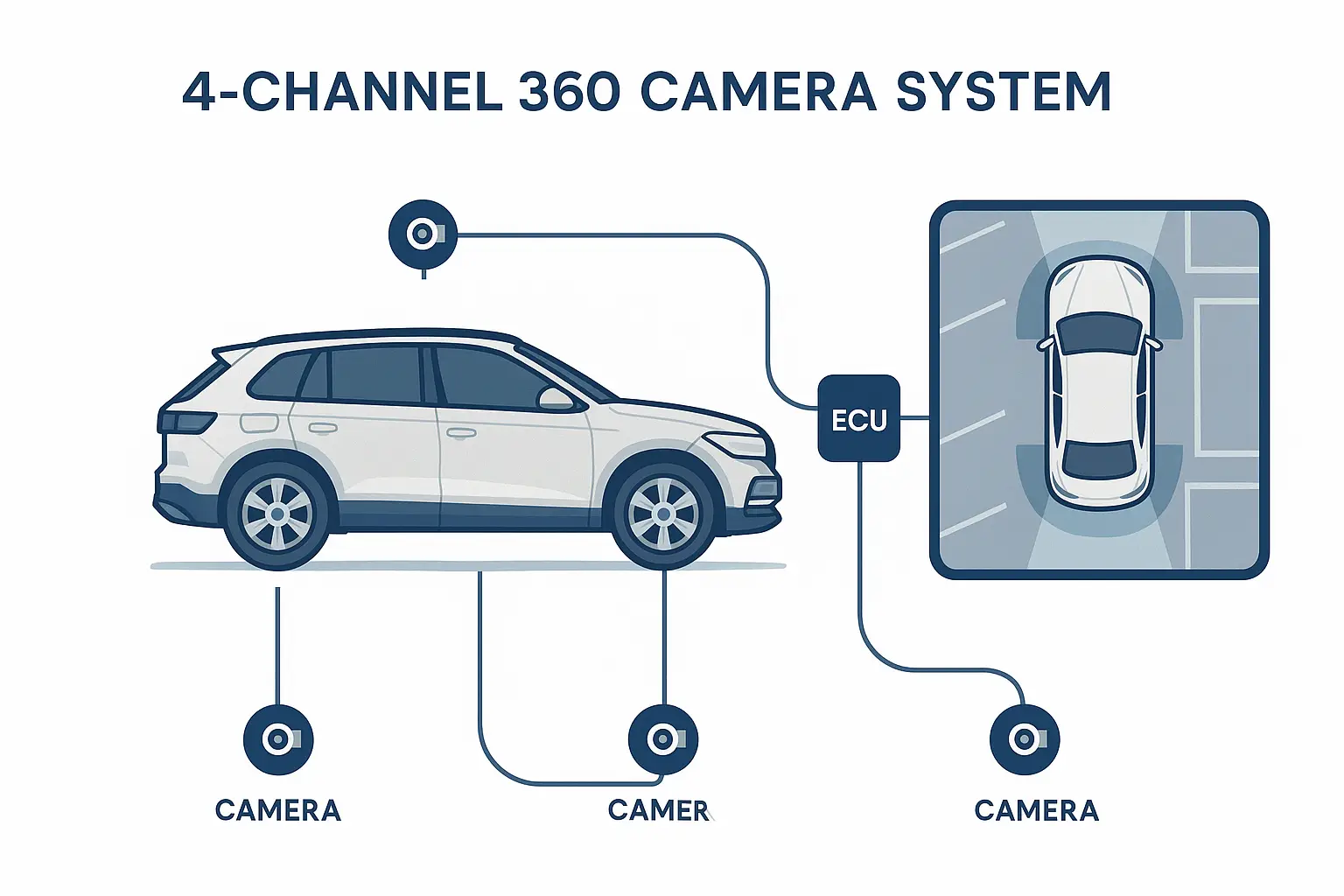

The system's central computer, the ECU, is the brain. It takes the four ultra-wide video feeds and applies a de-warping algorithm to flatten the distorted fish-eye images. Then, it uses calibration data to perfectly stitch them together, creating the final, seamless top-down view you see on your screen.

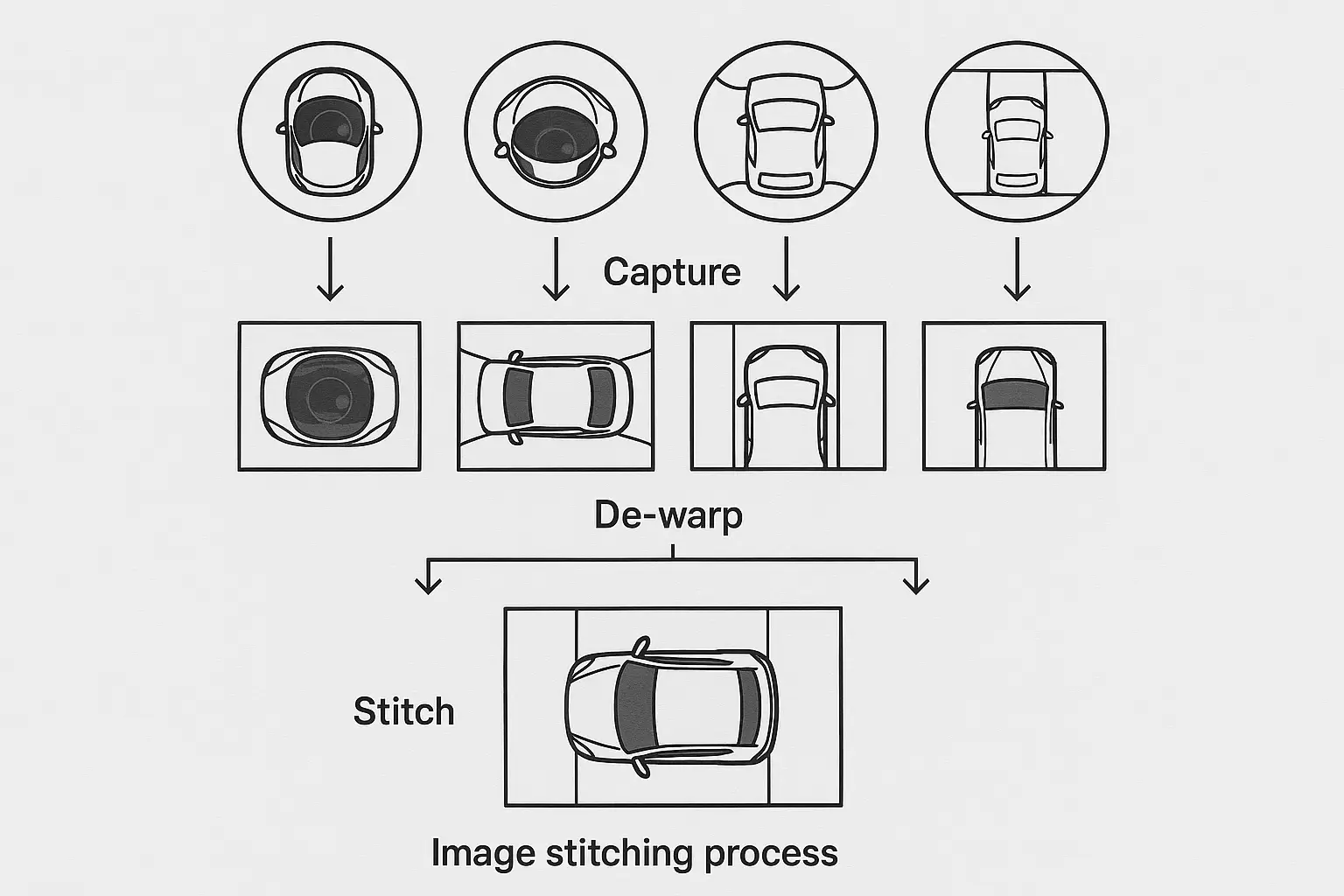

When I first learned how this worked, I was fascinated. It's a two-stage process: image correction and image stitching. Each of the four cameras has a "fish-eye" lens, which can see a very wide area, usually over 180 degrees. This wide view is essential to see everything, but it also creates a lot of barrel distortion, where straight lines look curved. The first job of the ECU is to run a "de-warping" algorithm on each video feed. This software corrects the distortion and makes the image look flat and normal.

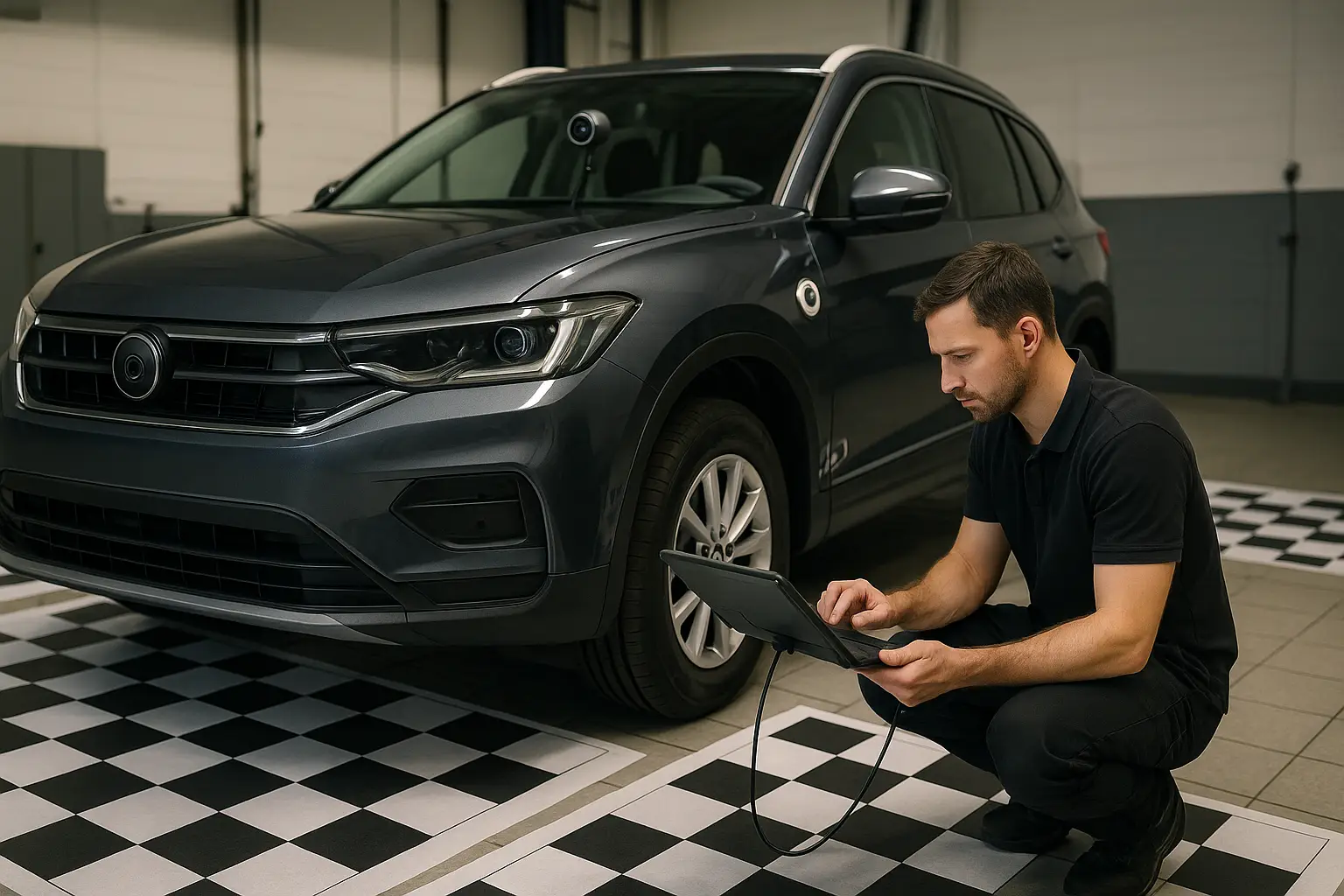

Next comes the stitching. This is only possible if the system has been calibrated correctly. During installation, the technician lays out large mats with a checkerboard or similar pattern around the car. The system's software looks at these patterns through all four cameras. It identifies the overlapping points and uses this information to build a precise digital map of how each camera's view relates to the others. It's this calibration file that tells the ECU exactly how to blend the de-warped images together into one coherent, bird's-eye picture without any weird gaps or misaligned sections.

What Are the Key Features to Look for in a 4-Channel System?

Feeling lost in a sea of technical specifications? It's easy to overpay for features you don't need or, worse, buy a system that fails when you need it most.

Focus on the core technology. The image sensor (like a Sony STARVIS) is more important than just resolution. Also look for a built-in DVR with a G-sensor, a high-endurance microSD card slot, and Wide Dynamic Range (WDR) for clear video in all lighting conditions.

I've tested several systems, and I've learned that the spec sheet doesn't always tell the whole story. A cheap camera might claim "1080p Night Vision," but the video is often a grainy, unusable mess. The real performance comes from the quality of the components inside. Let's look at what truly makes a difference.

The Heart of the Camera: The Image Sensor

Don't just look at resolution (1080p, 2K). Ask about the image sensor. A system with a high-quality sensor, like a Sony STARVIS, will produce dramatically better video, especially at night. This sensor is designed specifically for surveillance and excels at capturing clear, colorful images in extremely low light. A system with a basic sensor will just show a dark, noisy picture. This is the single biggest differentiator in video quality.

Recording You Can Rely On

The DVR function is your silent witness.

• Loop Recording: This is standard. The system records continuously, overwriting the oldest files.
• G-Sensor: This is crucial. It detects an impact and automatically locks the video file, protecting it from being overwritten.
• Parking Mode: This feature records incidents while you're away. Look for systems with a true buffered parking mode. It records a few seconds before an impact is detected, so you see the whole event. This requires a hardwire kit connection to your car's battery.
• MicroSD Card: The system is constantly writing data. A standard microSD card will fail quickly. You must use a "high-endurance" card designed for continuous recording. I learned this the hard way when a cheap card failed after just a few months, leaving me with no recordings.

Is Professional Installation Necessary for a 360 Camera System?

Thinking about saving some money with a DIY install? It’s more than just plugging in a few cameras. A small mistake can compromise safety systems or leave you with a useless, distorted view.

Yes, professional installation is strongly recommended. It involves complex wiring through the vehicle's chassis, tapping into the fuse box, and precise camera mounting. Most importantly, professionals have the specific calibration tools and software required to properly stitch the images, a step that is nearly impossible to do correctly at home.

I consider myself pretty skilled with car projects, but this is one I wouldn't touch. The process is incredibly invasive. First, you have to mount the cameras. This often means drilling precise holes in your side mirror housings, front grille, and rear tailgate. Getting the angle slightly wrong can ruin the final stitched image.

Then comes the wiring. You have to route four separate camera cables through door grommets, under carpets, and behind interior panels and headliners. This is tricky work, and if you aren't careful, you can interfere with side curtain airbags, which is a massive safety risk. The electrical work is just as critical. The ECU needs connections to constant power for parking mode, ignition-switched power to turn on with the car, and a trigger wire from the reverse lights to automatically show the rear view. A wrong connection can drain your battery overnight or, worse, cause an electrical short. Finally, that calibration process[^3] with the large, patterned mats is non-negotiable. Without it, you’ll have a disjointed, warped view that makes the whole system pointless.

How Much Does a 4-Channel 360 Camera System Really Cost?

Are you trying to budget for a 360 camera system? The price on the box is only part of the story. You must factor in the hardware, professional installation, and even ongoing costs.

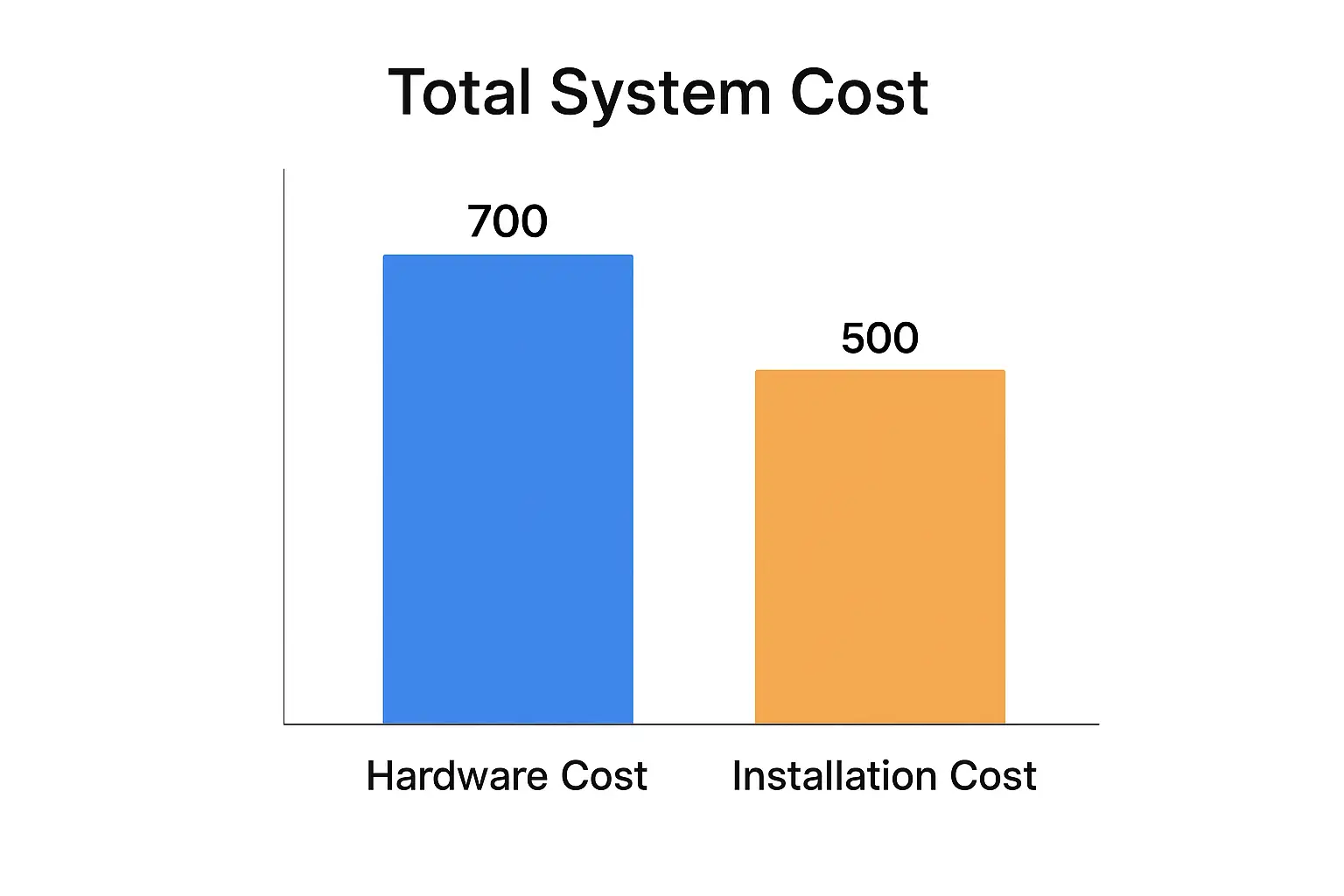

Expect a total cost between $700 and $2,000+. The hardware itself ranges from $300 for basic kits to over $1,000 for premium systems. Professional installation typically adds another $400 to $800, depending on your vehicle's complexity.

When I was budgeting for my system, I made sure to account for the whole package. It's a significant investment, so it's important to understand where the money goes. Breaking it down helps justify the cost.

The Total Cost of Ownership

Let's look at the real numbers.

• Hardware Cost: As we discussed, this varies by quality. An entry-level kit might be $350, a solid mid-range system with a Sony sensor is about $600, and a high-end system can be $1,200 or more. This price reflects the quality of the cameras, the processing power of the ECU, and the reliability of the software.
• Installation Cost: This is a major factor. I was quoted between $500 and $700 for my SUV from a few reputable shops. The price depends on the car; a large truck or a luxury car with complex electronics will be on the higher end. Don't cheap out here; good labor is worth the price.
• Ongoing Costs: This is a small but important detail. The high-endurance microSD card, which is essential for the DVR to work reliably, has a limited lifespan due to the constant writing. You should plan on replacing it every 18-24 months. A good 128GB high-endurance card costs around $25-$40.

Conclusion

A 4-channel 360 camera system is a powerful tool. It's not just a gadget; it's a fundamental upgrade to your vehicle's safety and your own situational awareness. Understanding the technology behind the seamless view, focusing on core components like the image sensor, and budgeting for professional installation are the keys to a successful outcome. I know that since installing mine, every parking maneuver is stress-free, and I have peace of mind knowing I have a reliable witness recording every drive.
