Based on the latest data from the National Highway Traffic Safety Administration (NHTSA) Traffic Safety Facts Report, the U.S. saw over 6.1 million traffic crashes in a recent year. These incidents tragically resulted in nearly 43,000 fatalities and approximately 2.5 million injuries. This highlights the critical need for ongoing improvements in road safety measures.

Blind spots are areas that remain hidden from a driver’s view when relying solely on mirrors. These blind spots are often created by structural components like the A-pillar—the post between the windshield and side window—or any object that obstructs the driver’s line of sight. But what if these blind spots could be eliminated? The solution is here: the Blind Spot Detection System (BSD), a technology designed to alert drivers to vehicles or obstacles in these unseen areas, significantly enhancing road safety.

What’s a BSD System?

A Blind Spot Detection (BSD) system is a driver assistance feature designed to help prevent collisions when changing lanes by alerting drivers to vehicles present in their blind spots—those areas to the right or left that aren’t visible through mirrors alone. The system typically uses sensors or cameras to detect vehicles in adjacent lanes and warns the driver with visual or auditory signals, enhancing awareness and reducing the risk of accidents.

Different vehicle manufacturers have their names for this technology. For example:

• Toyota refers to it as the Blind Spot Monitor (BSM).
• Hyundai calls it a Blind-spot Collision Warning (BCW).
• Volvo uses the term Blind Spot Information System (BLIS).
• Mazda brands it as Rear Vehicle Monitoring (RVM).

These systems, while named differently, serve the same purpose: increasing driver safety by reducing the likelihood of lane-change accidents caused by unseen vehicles.

The Location of Truck Blind Spots

Trucks have multiple blind spots that reduce visibility around the vehicle, creating potential hazards for nearby drivers. These main blind spots include:

Front Blind Spot

This area extends several feet in front of the truck’s cab where shorter vehicles may be entirely hidden from the driver’s view. It is especially risky in stop-and-go traffic.

Side Blind Spots

Large blind zones exist along both sides of the truck, often referred to as “no-zones,” where smaller vehicles can disappear from view. These areas are particularly pronounced on the right side due to the driver’s position.

Rear Blind Spot

A significant blind area is located directly behind the truck’s trailer, where the driver has limited visibility. Smaller vehicles following too closely are at a higher risk in this zone.

Awareness of these blind spots helps all road users maintain a safe distance, reducing the risk of collisions when driving near large trucks.

How Does the Blind Spot Detection System Work?

The Blind Spot Detection (BSD) system, sometimes referred to as a Blind Spot Information System, uses radar sensors and cameras strategically placed around the vehicle to monitor its surroundings and detect objects within the blind spots. These systems primarily rely on radar technology that can sense the presence of vehicles, cyclists, or pedestrians within a designated distance from the vehicle, typically covering areas that side and rearview mirrors might miss.

When an object enters the blind spot area, the system triggers an alert—often visual, such as a light in the side mirror, or an audible signal inside the cabin—to warn the driver of potential hazards. Some advanced BSD systems go a step further by offering automatic braking or steering assistance, helping the driver avoid potential collisions. These systems are increasingly common in modern vehicles and are offered by most major car and truck manufacturers, contributing significantly to improved road safety by reducing blind spot-related accidents.

The Types of Blind Spot Detection System

a. 77Ghz Anti-collision Blind Spot Detection System

This advanced 77GHz radar-based Anti-collision Blind Spot Detection System is designed to identify both moving and stationary objects within the rear blind spot area. The system covers a detection range extending up to 40 meters behind the vehicle and 4 meters on either side.

Real-time data about obstacle distances is shown on a digital display, giving the driver immediate visual information. Additionally, a built-in buzzer provides audible alerts, allowing the driver to stay aware of obstacles while reversing and improving overall safety. This system enables precise monitoring of the rear environment, helping drivers make safer maneuvering decisions.

How Does It Work?

b. BSD 4-Channel Monitor & Camera System

The BSD 4-Channel Monitor & Camera System is equipped with a high-performance AI-powered main control chip and a high-definition AHD (Analog High Definition) wide-dynamic photosensitive motherboard. This advanced technology enables the system to monitor, detect, and identify moving objects in real-time, especially during reversing, by processing the image feed with exceptional accuracy.

The system supports multiple cameras, providing comprehensive coverage around all four sides of the vehicle. This enhanced visibility not only improves safety by alerting the driver to potential obstacles but also significantly reduces blind spots, making for a safer and more controlled driving experience.

How Does It Work?

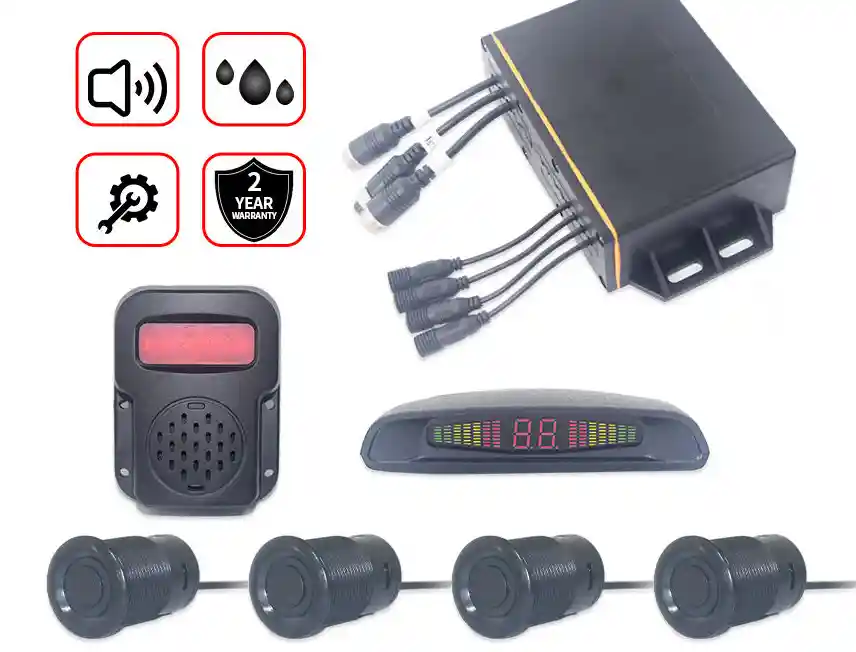

c. BSD parking radar system

The Blind Spot Detection (BSD) Parking Radar System is a vehicle safety assistance device designed to prevent accidental collisions and reduce the risk of traffic accidents caused by blind spots during parking and low-speed maneuvers. This system integrates multiple components, including warning lights, an LED display, a control box, parking radar sensors, and other accessories, providing comprehensive coverage around the vehicle.

The monitor can support up to eight sensors, allowing for maximum detection accuracy across a wide range. These sensors detect obstacles in blind spots and alert the driver with visual and audible warnings, ensuring safer parking and enhanced situational awareness. This combination of sensors and alerts significantly reduces blind spot risks, offering drivers a safer and more controlled driving experience in tight spaces.

How Does It Work?

d. AI Pedestrian & Detection Camera System

Leveraging advanced AI deep learning technology, the AI Pedestrian & Vehicle Detection Camera System accurately identifies and tracks pedestrians and cyclists in blind spot areas. This intelligent system integrates real-time alarms that alert drivers to nearby individuals, providing an extra layer of safety by improving driver awareness in high-risk zones. The precise detection capabilities of this camera system make it especially valuable in preventing accidents involving vulnerable road users, such as pedestrians and cyclists, by reducing the likelihood of blind spot-related incidents.

How Does It Work?

e. AI Mobile DVR Box

The AI Mobile DVR (Digital Video Recorder) Box is a compact, high-performance device designed for vehicle surveillance and safety. Equipped with powerful AI algorithms, it can process and store high-definition video footage in real-time, capturing and analyzing details around the vehicle to support advanced safety functions. This DVR box integrates seamlessly with multiple camera inputs, enabling continuous recording from various angles and providing comprehensive situational awareness.

Key features typically include intelligent event detection, such as pedestrian or vehicle movement in designated zones, as well as remote access for fleet monitoring. Its robust storage capability and built-in connectivity options, like Wi-Fi or 4G, allow for easy data retrieval and transfer, making it an essential tool for enhancing security in personal vehicles, commercial fleets, and public transportation.

f. BSD Rear Cross Traffic Alert

The BSD Rear Cross Traffic Alert system enhances vehicle safety by detecting approaching traffic from both sides while the vehicle is reversing. This system uses radar sensors to monitor the area behind the car, alerting the driver to any vehicles, pedestrians, or cyclists crossing the rear path. Visual and audible warnings are activated to alert the driver, helping to prevent collisions in busy areas, parking lots, or situations with limited visibility.

Rear Cross Traffic Alert is especially valuable in crowded spaces where visibility is restricted. Many systems are integrated with the vehicle’s existing BSD system, providing a comprehensive approach to blind spot safety during both forward and reverse driving.

How Does It Work?

g. 12.3Inch Blind Sport Mirror Monitor

The 12.3-inch blind spot mirror monitor is specially designed for large vehicles, utilizing high-definition cameras and wide-angle lenses to provide unparalleled coverage of areas that conventional mirrors cannot reach. This advanced system offers a broader, clearer, and real-time view of the vehicle’s surroundings, significantly reducing blind spots. It enhances the driver’s ability to detect potential hazards—whether pedestrians, cyclists, or other vehicles—ensuring a safer driving experience.

Equipped with a large, high-resolution display, the monitor provides a seamless view, helping drivers navigate complex environments with confidence. This blind spot monitor is an essential upgrade for improving visibility, particularly in crowded urban areas or on highways where full situational awareness is crucial for avoiding collisions.

How Does It Work?

Things to Keep in Mind When Using a Blind Spot Detection (BSD) System

Following these guidelines helps ensure BSD systems provide the most accurate support possible while encouraging drivers to stay alert and engaged with traditional safety practices.

Know the System’s Range

Each BSD system has specific detection zones, which vary by model and may not cover all blind spots. Familiarize yourself with your system’s exact range to understand where it detects objects accurately.

Don’t Rely Solely on the System

BSD systems are meant to supplement, not replace, traditional safety practices. Always check mirrors and turn your head for a quick shoulder glance to confirm a clear path.

Weather and Environment Limitations

Heavy rain, snow, fog, or dirt on sensors can impact BSD accuracy. Objects like guardrails or walls can sometimes cause false alerts, so remain cautious in challenging environments.

Account for Response Delays

Rapidly approaching vehicles may not trigger the alert immediately, especially at high speeds. Be extra cautious during lane changes, particularly on highways where faster vehicles are more common.

Sensor Maintenance

Regularly clean sensors to keep them free of dirt, mud, or snow, as obstructed sensors may not function correctly. Check with your service provider on where your sensors are located.

System Recalibration Needs

After significant repairs, especially around the bumpers or sensor areas, your BSD system may require recalibration to maintain accuracy.

Stay Updated on System Limitations

If your vehicle has additional safety features like rear cross-traffic alerts, ensure you understand their interaction with BSD to maximize safety without relying on any single feature.

Considerations When The Blind Spot Detection System Is Not Working

Revert to Traditional Blind Spot Checks

Without a functioning BSD system, it’s critical to rely on traditional safety methods. Use your mirrors diligently and perform shoulder checks to ensure no vehicles or objects are in your blind spots before changing lanes.

Diagnose and Resolve the Issue Promptly

Check the dashboard for any warning lights or error messages related to the BSD system. Often, a system malfunction will trigger an alert. Consult your vehicle manual for troubleshooting steps, or visit a qualified technician to diagnose and repair the issue.

Inspect and Clean Sensors

Dirt, ice, or mud on the sensors can block BSD functionality. Regularly clean the areas where sensors are located (usually near bumpers or side mirrors) to prevent obstructions that could affect system performance.

Verify Recent Repairs or Modifications

BSD systems may stop working if there were recent repairs or modifications near the sensor areas, such as bumper replacements or paint jobs. In such cases, recalibration by a professional may be necessary to restore accurate sensor functioning.

Monitor Weather Conditions

Certain weather conditions, like heavy rain, snow, or fog, can disrupt BSD sensors temporarily. If the system is malfunctioning during adverse weather, remember to revert to manual checks until conditions improve and the system resumes normal function.

Check for Electrical Issues

BSD systems depend on vehicle power and may stop working due to electrical faults or low battery power. If other electronic systems also appear compromised, have a mechanic check for potential electrical issues.

Is Blind Spot Detection Worth It?

Yes, Blind Spot Detection (BSD) systems are generally worth the investment, especially for those who frequently drive in dense traffic, on highways, or in vehicles with significant blind spots, like SUVs and trucks.

Enhanced Safety

BSD systems help reduce the risk of collisions during lane changes by alerting drivers to unseen vehicles in their blind spots. Research shows that these systems can lower accident rates, particularly in multi-lane traffic situations. The Insurance Institute for Highway Safety (IIHS) found that BSD systems can reduce lane-change accident rates by 14% and injuries from such accidents by 23%.

Increased Driver Confidence:

For new or older drivers, BSD systems add an extra layer of confidence, reducing the worry of missing a vehicle in the blind spot. This can make highway driving and maneuvering in busy areas less stressful.

Reduced Repair and Insurance Costs

Avoiding accidents due to blind spot issues also saves on repair costs and can help keep insurance premiums low, as many insurers offer discounts for vehicles equipped with advanced safety features.

What Are the Main Applications of BSD Systems?

Blind Spot Detection (BSD) systems have several main applications that enhance safety and improve driver awareness in a variety of driving conditions. Key applications include:

Lane Change Assistance

BSD systems are especially useful during lane changes by detecting vehicles in adjacent lanes that are outside the driver’s line of sight. They alert the driver to vehicles in these blind spots, significantly reducing the risk of side-swipe collisions.

Rear Cross Traffic Alert (RCTA)

In parking lots or during reverse maneuvers, BSD systems equipped with Rear Cross Traffic Alert notify drivers of approaching vehicles from the sides, often where visibility is limited. This application is essential for preventing collisions in crowded areas or situations with limited rear visibility.

Highway Driving Assistance

BSD systems are invaluable for highway driving, where higher speeds and frequent lane changes increase the risk of accidents. The system’s ability to monitor blind spots at high speeds helps drivers make safer lane changes without missing fast-approaching vehicles.

Pedestrian and Cyclist Detection

Advanced BSD systems now include pedestrian and cyclist detection, particularly useful in urban environments. These systems identify vulnerable road users in the vehicle’s blind spots and provide alerts, helping to prevent accidents with pedestrians and cyclists.

Vehicle Maneuvering in Large Vehicles

BSD is especially helpful for drivers of larger vehicles, such as trucks, SUVs, and RVs, where blind spots are more extensive. The system compensates for these larger blind zones, making maneuvers safer and reducing accident risk.

How Many Types of Warnings of Blind Spot Detection?

A Blind Spot Detection (BSD) system typically uses various levels of alarms and alerts to help drivers stay aware of nearby vehicles and pedestrians, particularly in blind spots. Here are the types of BSD alerts commonly used:

Distance Alert – Level 1

This low-level alert activates when a vehicle or person is detected at a safe but notable distance. It serves as a preliminary warning, prompting the driver to stay aware without immediate action. Often, this alert may simply light up in the side mirror.

Approach Warning – Level 2

A moderate alert, activated when a person or vehicle is closing in on the blind spot. This warning often includes a light indicator and sometimes a soft audible alert, urging the driver to maintain or increase distance.

Immediate Proximity Alert – Level 3 (Highest Level)

This urgent alert activates when a person or vehicle is very close to the vehicle’s side, usually with flashing lights and a louder audible signal. It serves as an immediate warning for the driver to avoid lane changes or other maneuvers.

Right Turn Alert

This warning engages when the vehicle’s right turn signal is activated, alerting the driver if an obstacle is detected on the right side. It typically includes both a visual and auditory cue, helping drivers avoid right-side collisions.

Left Turn Alert

Similarly, this alert activates with the left turn signal, notifying the driver of any detected object on the left side. This is especially useful in busy or multi-lane environments.

Moving Alert

This alert sounds when the vehicle begins to move forward from a stop if there is an object or pedestrian in a critical blind spot area. It is designed to prevent low-speed collisions, particularly in crowded settings like parking lots.

Audible Warning Signal (“DiDiDi” Sound)

An audible “DiDiDi” sound may accompany any level of warning, especially higher levels, to immediately catch the driver’s attention if a visual alert is missed.

Flashing Indicator Lights

Visual indicators, usually in side mirrors or dashboards, will flash when a vehicle or object is detected in a blind spot. Flashing lights are often combined with other alerts, like sounds or even haptic feedback, to maximize driver awareness.

Conclusion

With the installation of a Blind Spot Detection (BSD) system, accidents and injuries have been significantly reduced, proving that BSD is a vital safety feature in modern driving. Increasingly, car owners are opting to add BSD systems to vehicles that lack this essential technology. As a leader with over 15 years of expertise in vehicle safety solutions, VST provides top-quality BSD systems to enhance your driving safety. If you’re interested in equipping your vehicle with a BSD system, you’re in the right place. Contact us today to learn more!
