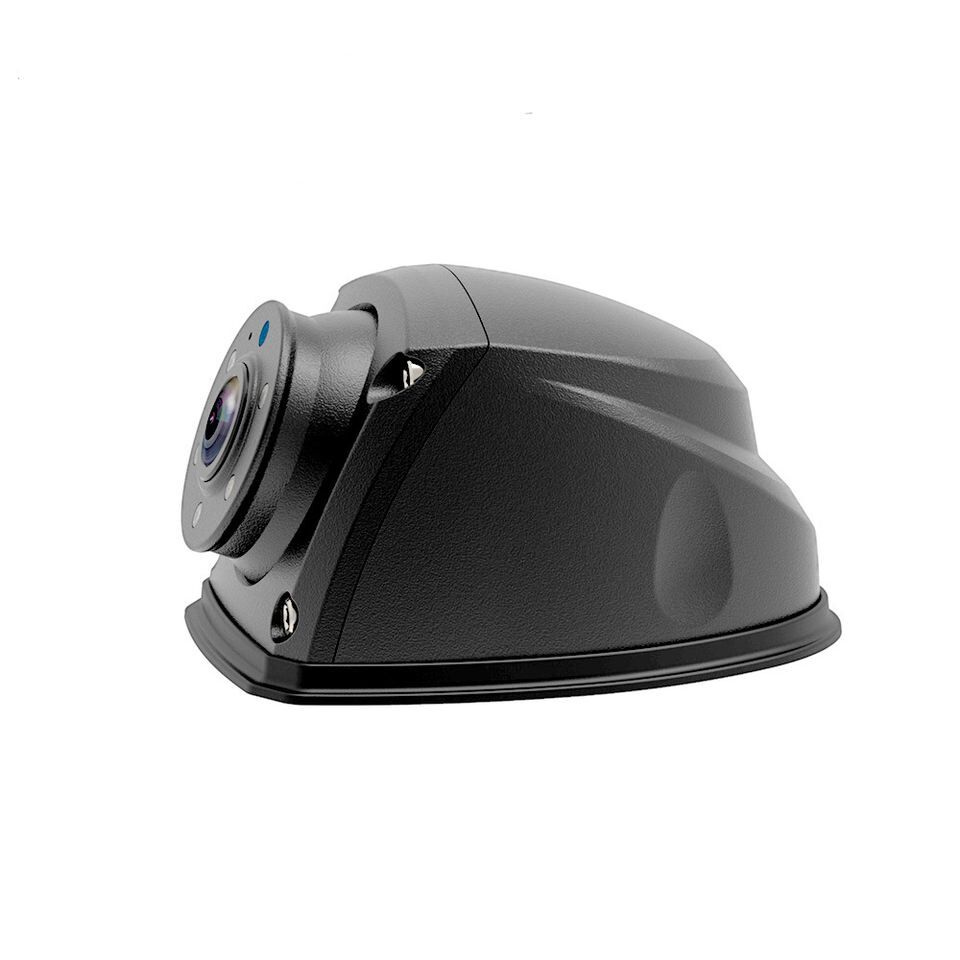

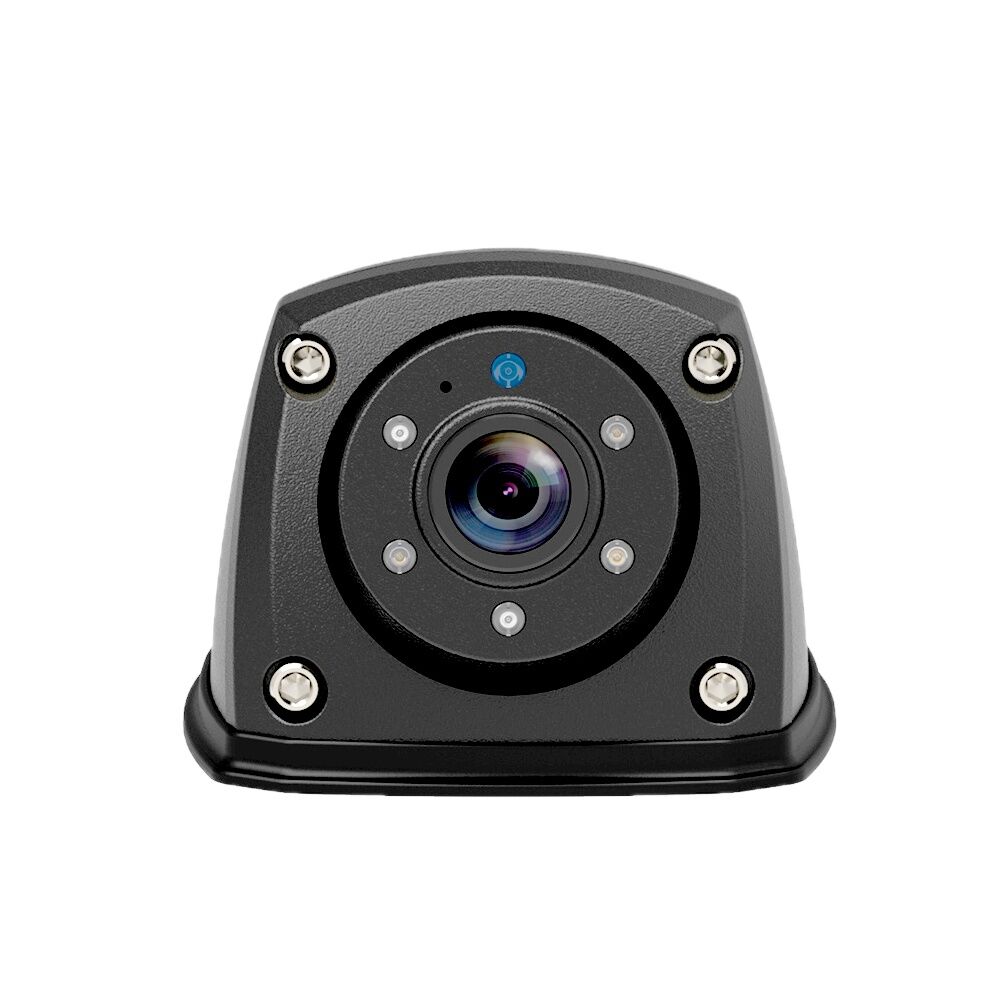

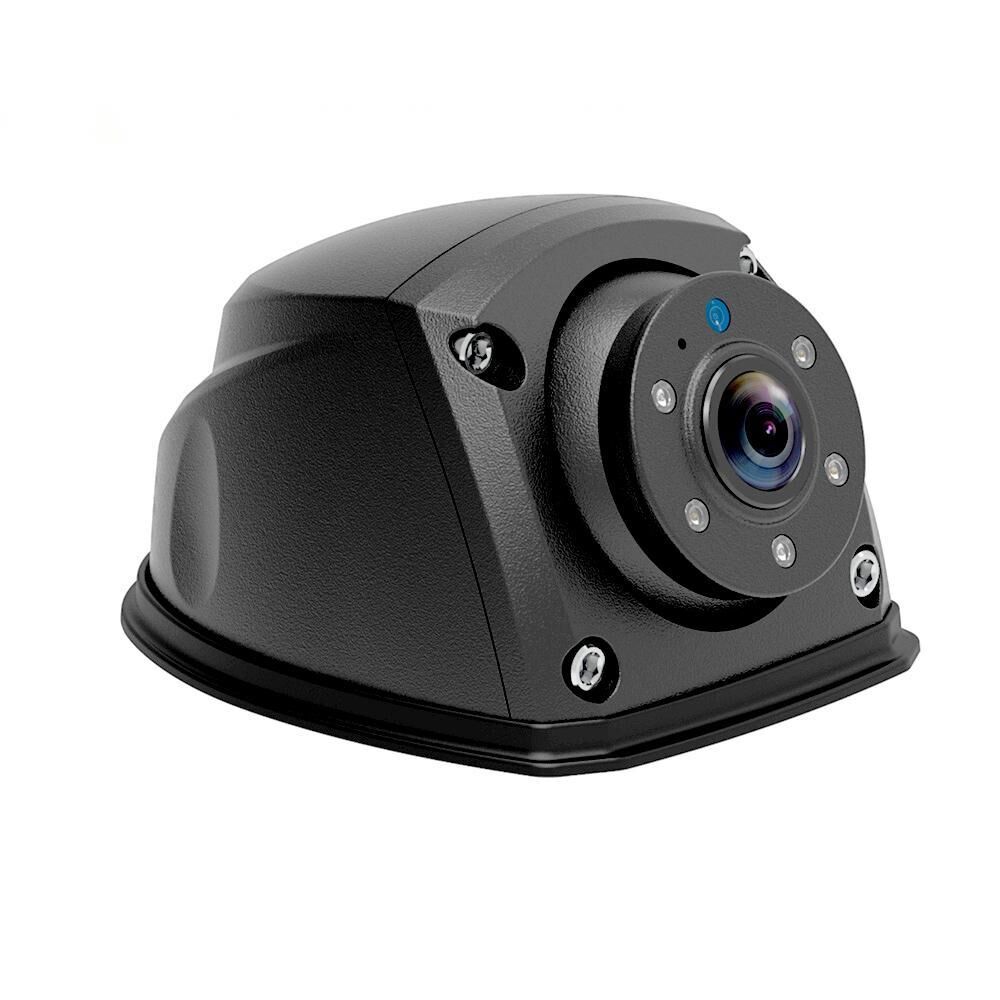

The HD side view camera – both 720p and 1080p versions – delivers clear side views of vehicle surroundings. The ultra-wide angle offers drivers 170 degrees of complete coverage and is equipped with day/nighttime performance. Available in both white and black housing to match vehicle exteriors, extremely rugged and completely waterproof with an IP69K rating.
| Model | CA208-HD |
| Image Sensor | 1/2.9’’ CMOS |
| Resolution | 1080P |
| Effective Pixels | 1920(H)x1080(V) |
| Pixel Size | 1.8x1.8μm |
| Viewing Angle | 170 degrees max |
| Waterproof Rating | IP69K |
| Shockproof | 10G |
| Frame Rate | 25/30fps |
| LEDs Lights | 5pc IR LEDs |
| Power Supply | DC9-18V (from reversing monitor) |
| Audio | Support |
| Auto Heating | Support |
| Night Vision Distance | 15m |
| Housing Material | Heavy-duty cast metal |
| Power Consumption | 160mA |
| Unit Weight | 200g |
| Operation Temp | -20℃-70℃， RH95%MAX |
