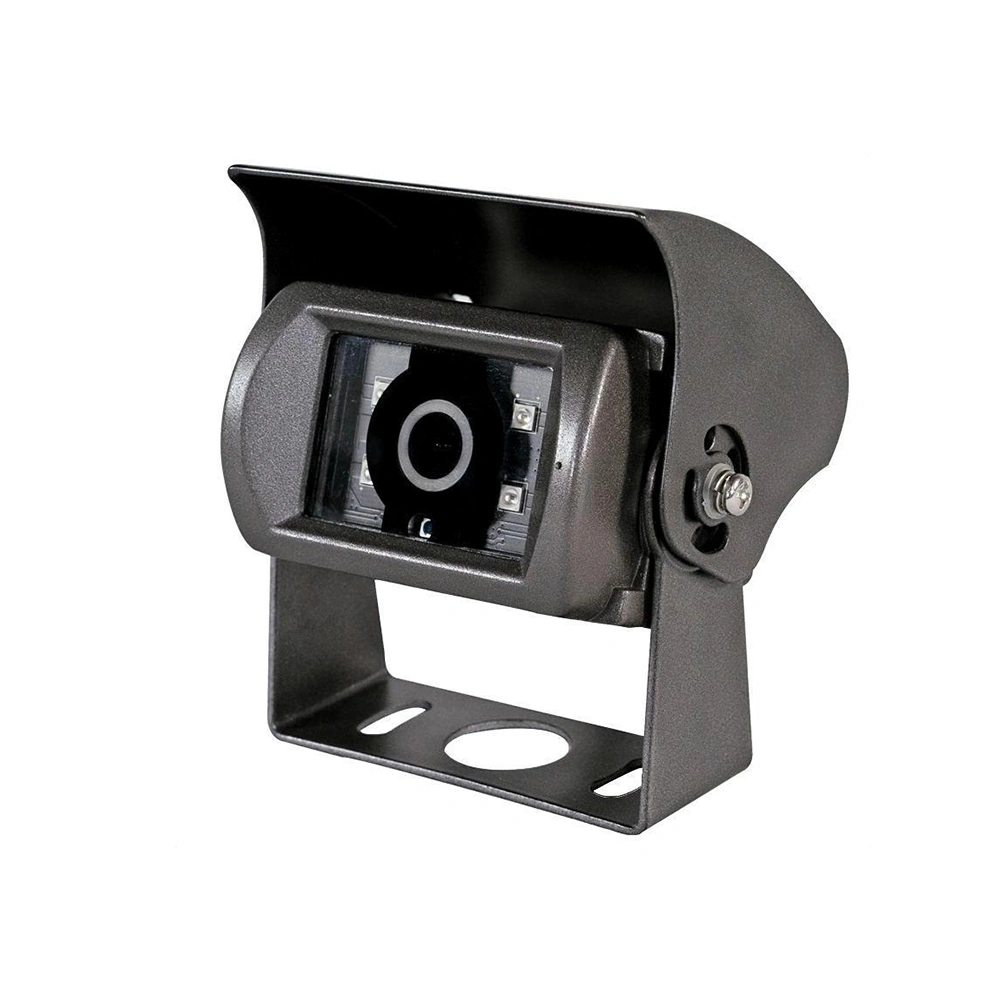

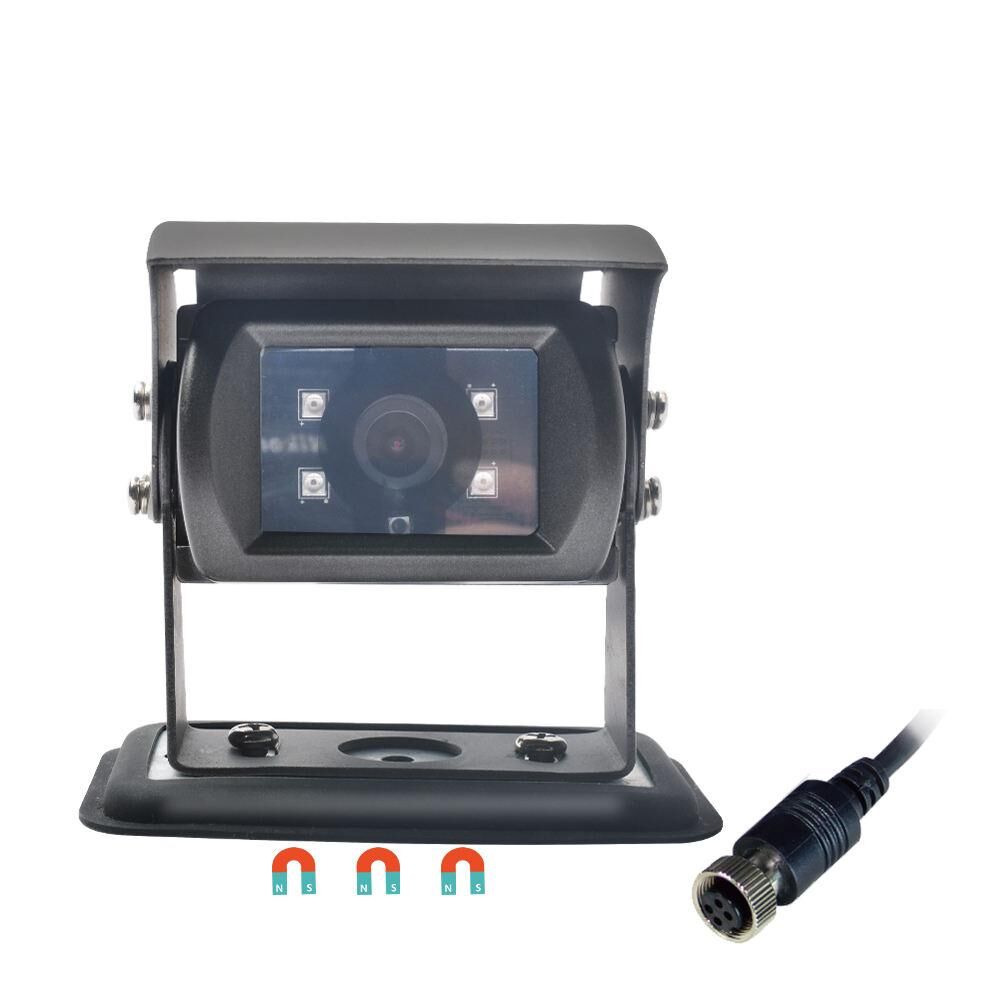

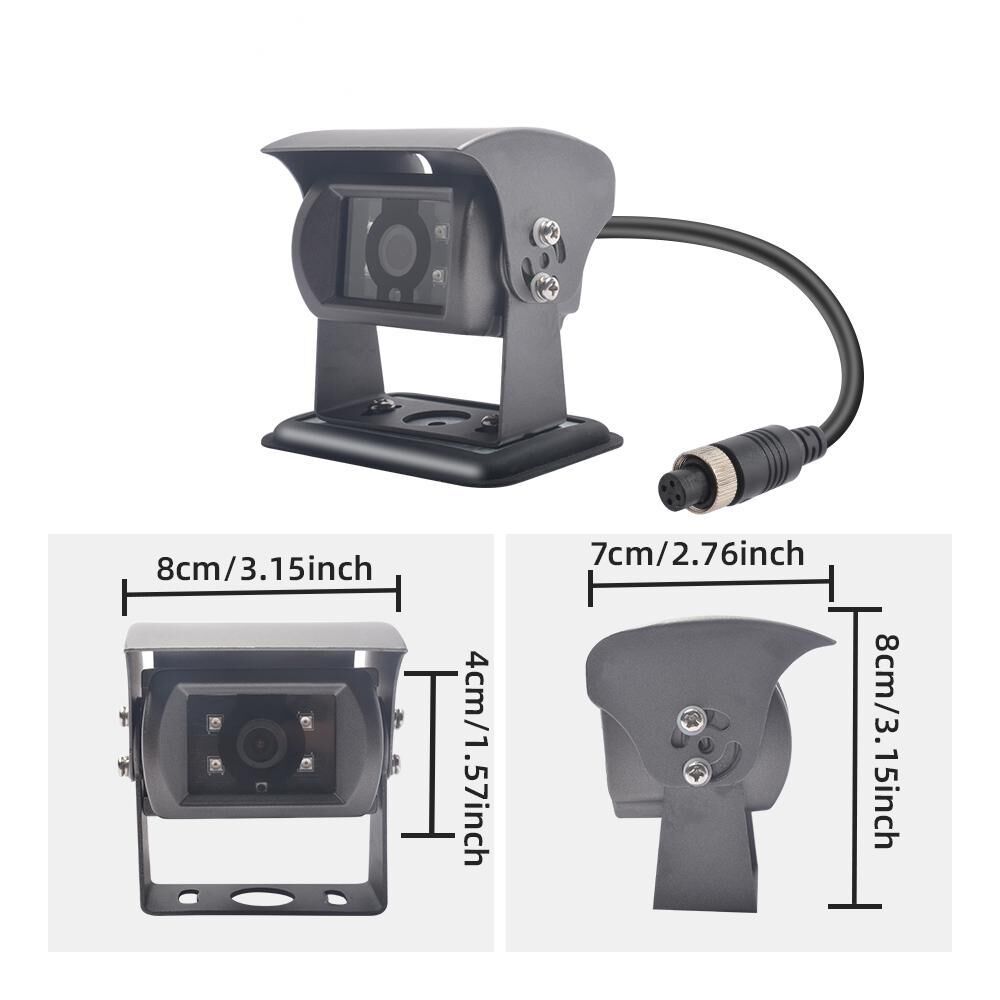

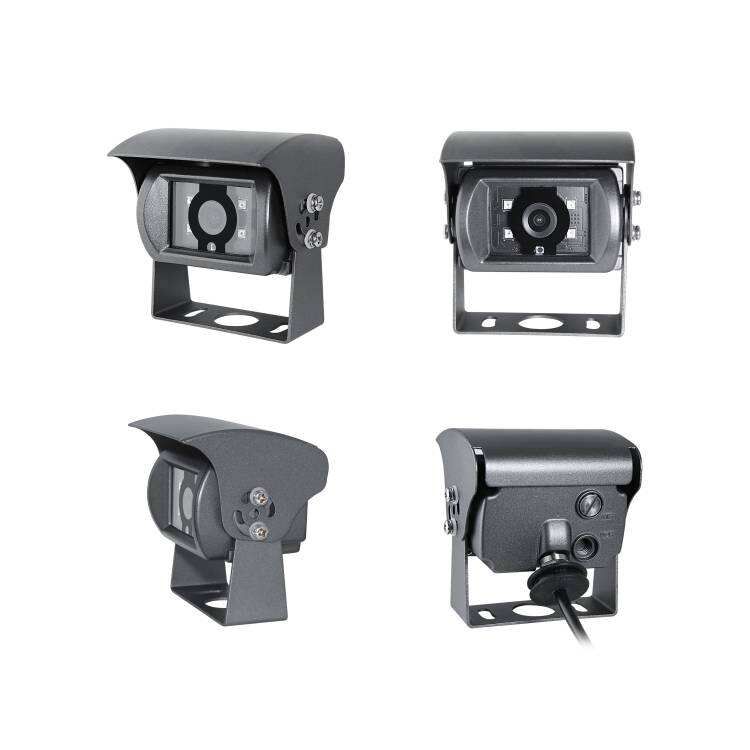

The CA204 AHD Rear View Camera is fully waterproof to IP69K standards, solid and reliable, shock resistant to 10G vibration, and popular in Caravans, trucks, buses, forklifts, agriculture, and construction machinery.
| Model | CA204-HD |
| Image Sensor | 1/2.9’’ CMOS |
| Resolution | 1080P |
| Effective Pixels | 1920(H)x1080(V) |
| Pixel Size | 1.8×1.8μm |
| Viewing Angle | 120 degrees |
| Waterproof Rating | IP69K |
| Shockproof | 10G |
| Frame Rate | 25/30fps |
| LEDs Lights5 | 4pc IR LEDs |
| Power Supply | DC9-18V (from reversing monitor) |
| Audio | Support |
| Auto Heating | Support |
| Night Vision Distance | 15m |
| Housing Material | Heavy-duty cast metal |
| Power Consumption | 160mA |
| Unit Weight | 200g |
| Operation Temp | -20℃-70℃， RH95%MAX |
